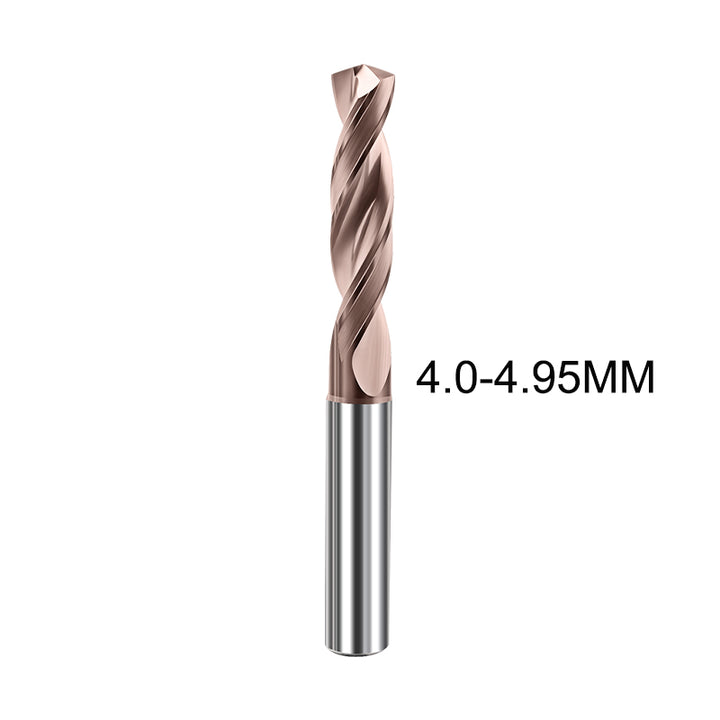

BEYOND HRC60 3D Coated Carbide Drill Bits (4.0-4.95mm) - 140° Point Angle for Superior Performance in Tough Materials
Experience drilling redefined with the BEYOND 4.0-4.95mm series featuring an innovative 140° point angle. This advanced geometry, combined with an HRC60 ultra-hard tungsten carbide core and 3D coating, is specifically engineered for challenging materials like stainless steel, high-temperature alloys, and hardened steels. The obtuse point angle reduces axial thrust force, minimizes walking, and prevents work hardening - delivering cleaner, more accurate holes with extended tool life.
Key Features & Benefits:
- Optimized 140° Point Angle: Significantly reduces thrust force by up to 40% compared to standard points, preventing work hardening in stainless steels and minimizing burr formation.
- HRC60 Ultra-Hard Tungsten Carbide: Exceptional wear resistance for extended tool life in abrasive and high-hardness materials, reducing tooling costs and machine downtime.
- Advanced 3D Coating (Bronze): Superior thermal barrier reduces friction and heat generation, particularly beneficial when drilling heat-resistant alloys and stainless steels.
- Enhanced Stability with 3xD Flute Length: Provides the perfect balance between depth capability and rigidity, ensuring straight, accurate holes in deep-hole applications.
- Stainless Steel Optimized Geometry: Specifically designed for stringy materials with specialized flute geometry that ensures efficient chip evacuation and prevents chip packing.
Product Specifications:
| Brand | BEYOND |
| Material | Solid Tungsten Carbide (HRC60 Hardness) with 3D Coating |
| Point Angle | 140° (Optimized for Stainless Steel & Tough Alloys) |
| Flute Length | 3 x Diameter (3xD) |
| Shank Type | Straight Shank (Fixed Shank) |
| Diameter Range | 4.0mm, 4.1mm, 4.2mm, 4.3mm, 4.4mm, 4.5mm, 4.6mm, 4.7mm, 4.8mm, 4.9mm, 4.95mm |
Technical Cutting Data Reference:
Optimized for stainless steel, high-temperature alloys, and work-hardening materials.
| Drill Diameter (mm) | Recommended Speed (RPM) | Feed Rate (mm/rev) |
|---|---|---|
| 4.0 - 4.2 | 3,800 - 4,800 | 0.04 - 0.06 |
| 4.3 - 4.5 | 3,400 - 4,300 | 0.045 - 0.065 |
| 4.6 - 4.95 | 3,100 - 3,900 | 0.05 - 0.07 |
Pro Tip: The 140° point angle requires lower thrust force but may need slightly reduced feed rates. Use consistent feed pressure throughout the cut to maximize tool life. Always use coolant for heat dissipation in stainless steels.
Ideal For Drilling:
- Stainless Steels: 304, 316, 303, 17-4PH, 420 (Primary Application)
- High-Temperature Alloys: Inconel, Hastelloy, Waspaloy
- Titanium & Titanium Alloys: Grade 2, Grade 5 (6AL-4V)
- Work-Hardening Materials: Austenitic stainless steels, nickel alloys
- Hardened Steels: Up to 55 HRC (with adjusted parameters)
Recommended For Use In:
- CNC Machining Centers & Vertical Mills
- Stainless Steel Fabrication Shops
- Aerospace & Medical Manufacturing
- Valve & Pump Manufacturing Facilities
- General Engineering Workshops dealing with tough materials
Why Choose BEYOND 140° Drill Bits?
BEYOND's 140° point angle technology represents a breakthrough in drilling performance for challenging materials. By reducing axial forces and preventing work hardening, these drills solve the most common problems in stainless steel and high-temperature alloy machining. Our rigorous manufacturing process ensures perfect point geometry on every drill, delivering consistent, reliable performance that reduces downtime and increases productivity.
BEYOND Tools – Advanced Geometry for Superior Performance.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
