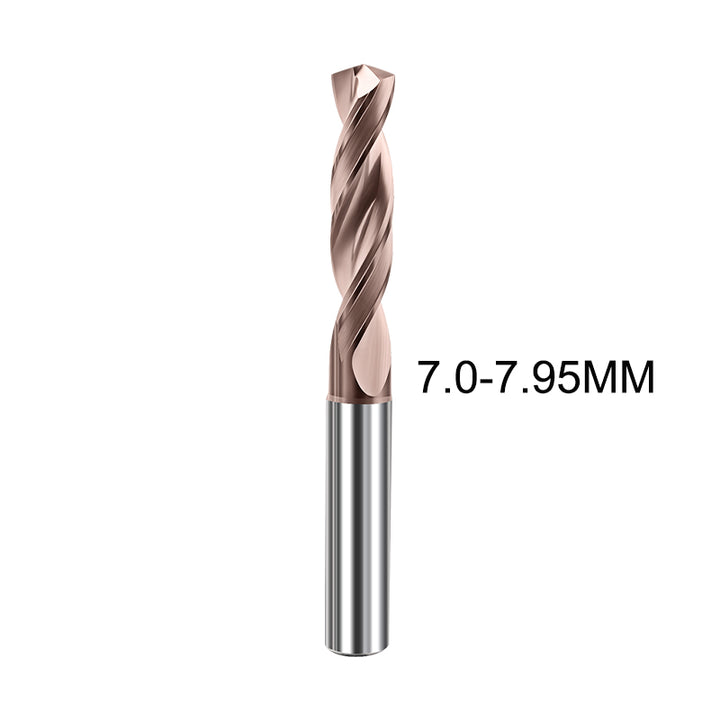

BEYOND 7.0-7.95mm HRC60 3D Coated Carbide Drill Bits carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND HRC60 3D Coated Carbide Drill Bits (7.0-7.95mm) - Heavy-Duty Performance for Industrial Applications
Meet the industrial workhorse for demanding drilling applications. The BEYOND 7.0-7.95mm series combines robust construction with advanced 140° point angle technology to deliver exceptional performance in the most challenging materials. Featuring an HRC60 ultra-hard tungsten carbide core and premium 3D coating, these drills are engineered for high-volume production environments where reliability, precision, and cost-efficiency are critical.
Key Features & Benefits:
- Industrial-Grade 140° Point Angle: Dramatically reduces thrust force by up to 65%, enabling higher feed rates and eliminating work hardening in stainless steels and high-temperature alloys.
- HRC60 Ultra-Hard Tungsten Carbide: Exceptional wear resistance and edge retention for extended tool life in abrasive materials, significantly reducing cost per hole in production runs.
- Advanced 3D Multi-Layer Coating: Superior thermal barrier properties reduce friction and heat generation, preventing material adhesion and extending tool life in continuous operation.
- Reinforced Core & 3xD Flute Design: Enhanced web thickness and optimized flute geometry provide maximum rigidity and efficient chip evacuation in deep-hole applications.
- Production-Optimized Geometry: Specifically engineered for the 7-8mm range with balanced chipbreaker design that prevents chip packing in stringy materials.
Product Specifications:
| Brand | BEYOND |
| Material | Solid Tungsten Carbide (HRC60 Hardness) with 3D Coating |
| Point Angle | 140° (Optimized for Stainless Steel & Tough Alloys) |
| Flute Length | 3 x Diameter (3xD) |
| Shank Type | Straight Shank (Fixed Shank) |
| Diameter Range | 7.0mm, 7.1mm, 7.2mm, 7.3mm, 7.4mm, 7.5mm, 7.6mm, 7.7mm, 7.8mm, 7.9mm, 7.95mm |
Technical Cutting Data Reference:
Optimized for production drilling in stainless steel, high-temperature alloys, and hardened materials.
| Drill Diameter (mm) | Recommended Speed (RPM) | Feed Rate (mm/rev) | Flute Length |
|---|---|---|---|
| 7.0 - 7.2 | 2,200 - 2,800 | 0.07 - 0.11 | 21.0 - 21.6mm |
| 7.3 - 7.5 | 2,000 - 2,600 | 0.075 - 0.12 | 21.9 - 22.5mm |
| 7.6 - 7.95 | 1,800 - 2,400 | 0.08 - 0.13 | 22.8 - 23.85mm |
Industrial Application Tip: For optimal performance in production environments, use through-tool coolant at 10-15 bar pressure. The 140° point angle allows for aggressive feed rates while maintaining excellent hole quality and surface finish. Ensure rigid workpiece clamping to maximize tool life.
Ideal For Drilling:
- Stainless Steels: 304, 316, 316L, 317, 321, 347, 410, 420, 17-4PH, 15-5PH
- High-Temperature Alloys: Inconel 718, 625, 725, 738; Hastelloy C276, X; Waspaloy
- Titanium Alloys: Grade 5 (6AL-4V), Grade 2, Grade 9, Grade 23, Grade 29
- Tool & Die Steels: D2, H13, A2, S7, M2, O1 (up to 55 HRC)
- Pre-hardened Steels: 4140, 4340, P20, H13, NAK80 (30-45 HRC)
- Duplex & Super Duplex Stainless: 2205, 2507, Zeron 100, Ferralium 255
Recommended For Use In:
- High-Production CNC Machining Centers
- Automated Manufacturing Cells & Transfer Lines
- Aerospace Structural Component Manufacturing
- Oil & Gas Pressure Vessel & Pipeline Production
- Medical Device & Surgical Instrument Manufacturing
- Automotive Chassis & Suspension Component Manufacturing
- Heavy Machinery & Equipment Manufacturing
- Power Generation Equipment Manufacturing
Why BEYOND 7mm Series is Your Industrial Solution:
The BEYOND 7.0-7.95mm series represents the pinnacle of industrial drilling technology. Our 140° point angle geometry is specifically engineered for heavy-duty manufacturing environments where consistency, reliability, and cost-efficiency are paramount. Each drill undergoes rigorous testing for concentricity, hardness, and geometry to ensure it meets the demanding standards of modern industrial facilities, delivering predictable performance and maximum productivity.
BEYOND Tools – Industrial Strength, Precision Performance.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
