BEYOND SSBCR1212H09 SSBCR 1212H09 1212 SSBCR External Turning Tools Holder SSBCR1212 H09 CNC Lathe Cutting Shank Carbide Inserts SCMT 09T3 SCMT09T3

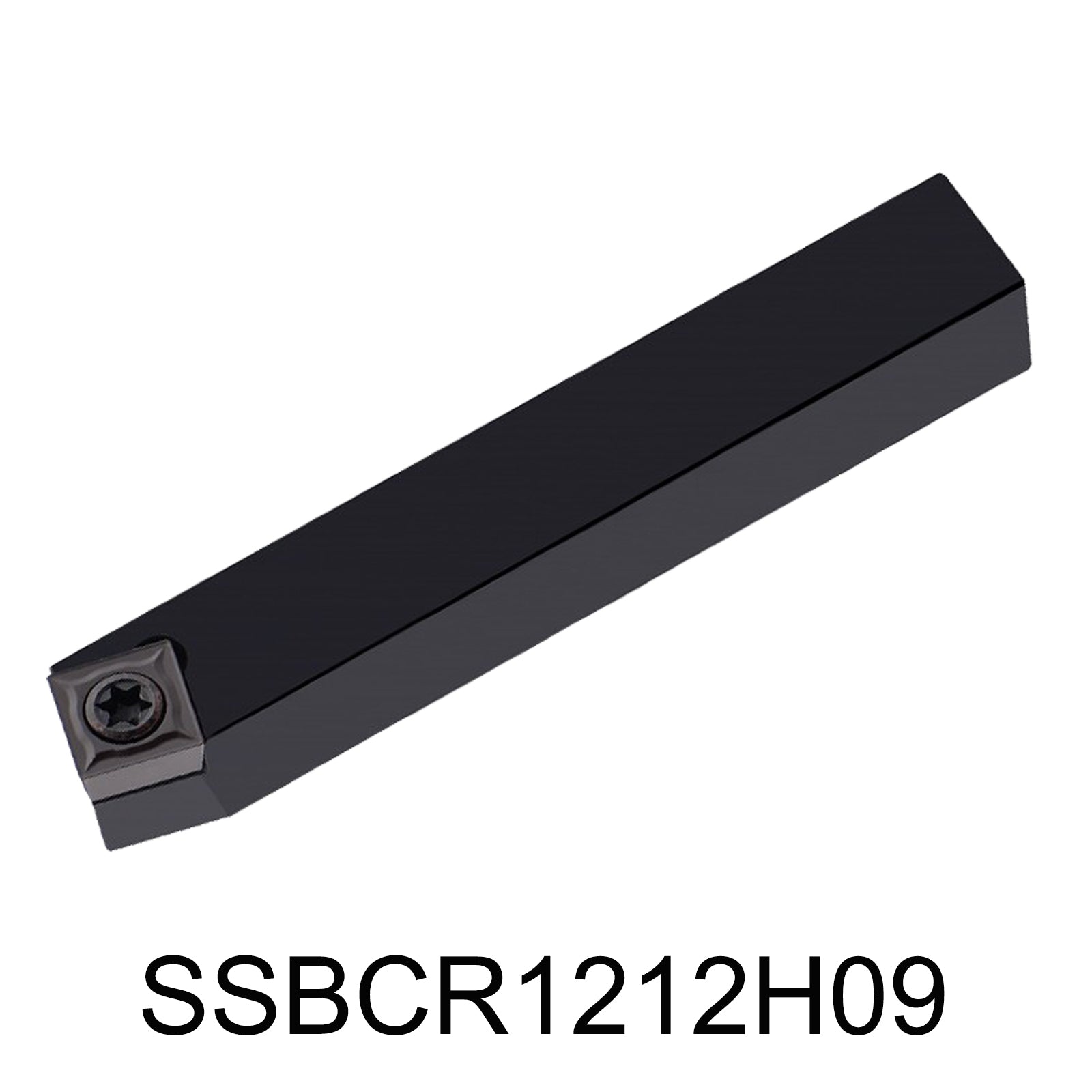

• SSBCR1212H09 External Tool Holder – Precision and Efficiency for CNC Machining


• Overview

The SSBCR1212H09 External Tool Holder is engineered for precision and efficiency in machining operations. With a tool cutting edge angle of 75° and a relief angle of 7°, this external cylindrical tool holder is optimized for high-performance cutting applications. Featuring an S-type screw clamping system, it allows for secure blade attachment and easy changes. Designed for use with SCMT09T302, SCMT09T304, SCMT09T308, and SCMT3(2.5) series blades, this versatile tool holder is ideal for CNC machine tools, CNC lathes, and machining centers. Elevate your machining capabilities with this essential tool holder.

• Features and Specifications

  • Model:SSBCR1212H09
  • Package Includes: SSBCR1212H09  Cylindrical Turning Tool and compatible  Screws, and Wrenches

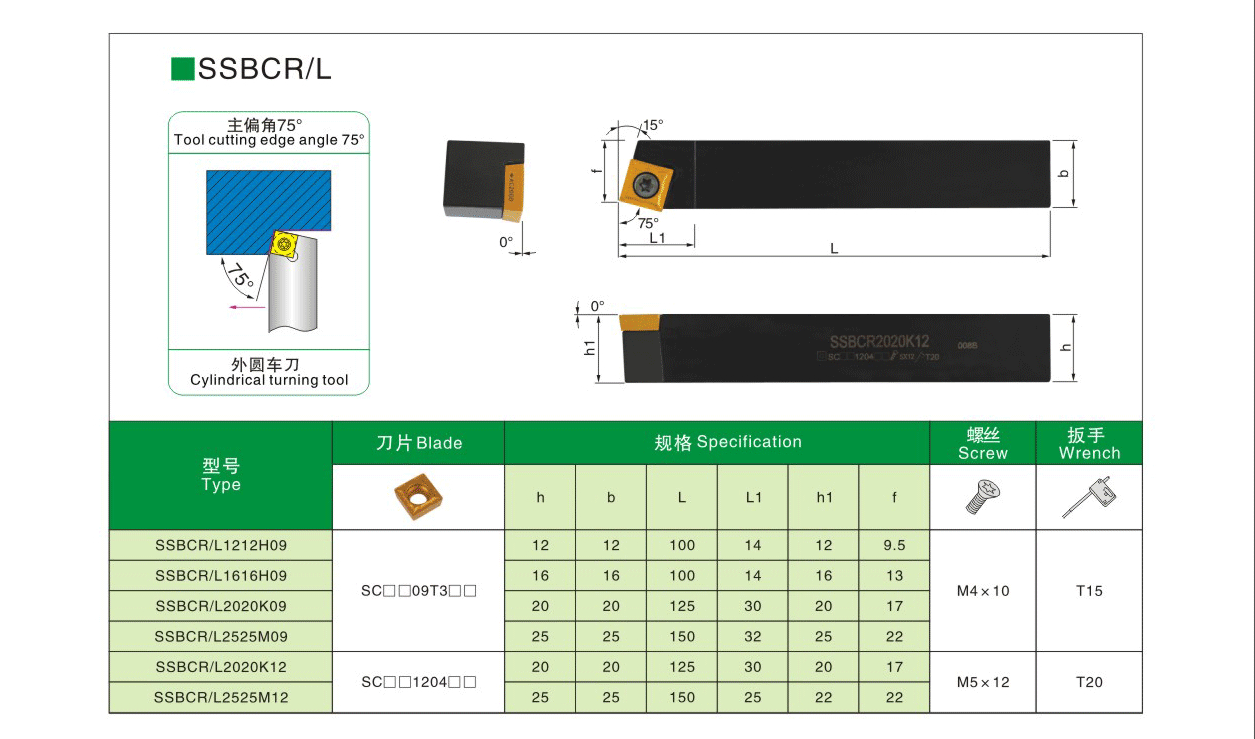

  • 75° Tool Cutting Edge angle and 7° relief angle.
  • Type: S-Type (Screw Clamping System)
  • Shank width: 12mm
  • Shank length: 12mm
  • Total Length: 100mm
  • Screw: M4*10
  • Wrench: T15
  • Compatible Blades: SCMT09T302 SCMT09T304 SCMT09T308 SCMT3(2.5)0 SCMT3(2.5)1 SCMT3(2.5)2

• Perfect for CNC Machines and Machining Centers


• 5-Point Description

1. 1. Precision Cutting Performance: The SSBCR1212H09 features a tool cutting edge angle of 75°, ensuring optimal cutting efficiency and accuracy for a wide range of materials.

   2. Versatile Blade Compatibility: Designed to work seamlessly with SCMT09T302, SCMT09T304, SCMT09T308, and SCMT3(2.5) series blades, this tool holder offers flexibility for various machining tasks.

   3. Sturdy Construction: With a shank width and length of 12mm and a total length of 100mm, the robust design of the SSBCR1212H09 ensures stability and reliability, even in demanding machining environments.

   4. User-Friendly Design: The S-type screw clamping system enables quick and easy blade changes. Equipped with an M4*10 screw and T15 wrench, users can efficiently swap blades, minimizing downtime.

   5. Ideal for CNC Applications: Perfect for use in CNC machine tools, CNC lathes, and machining centers, this external tool holder enhances productivity and precision, making it a must-have in any machining setup.
