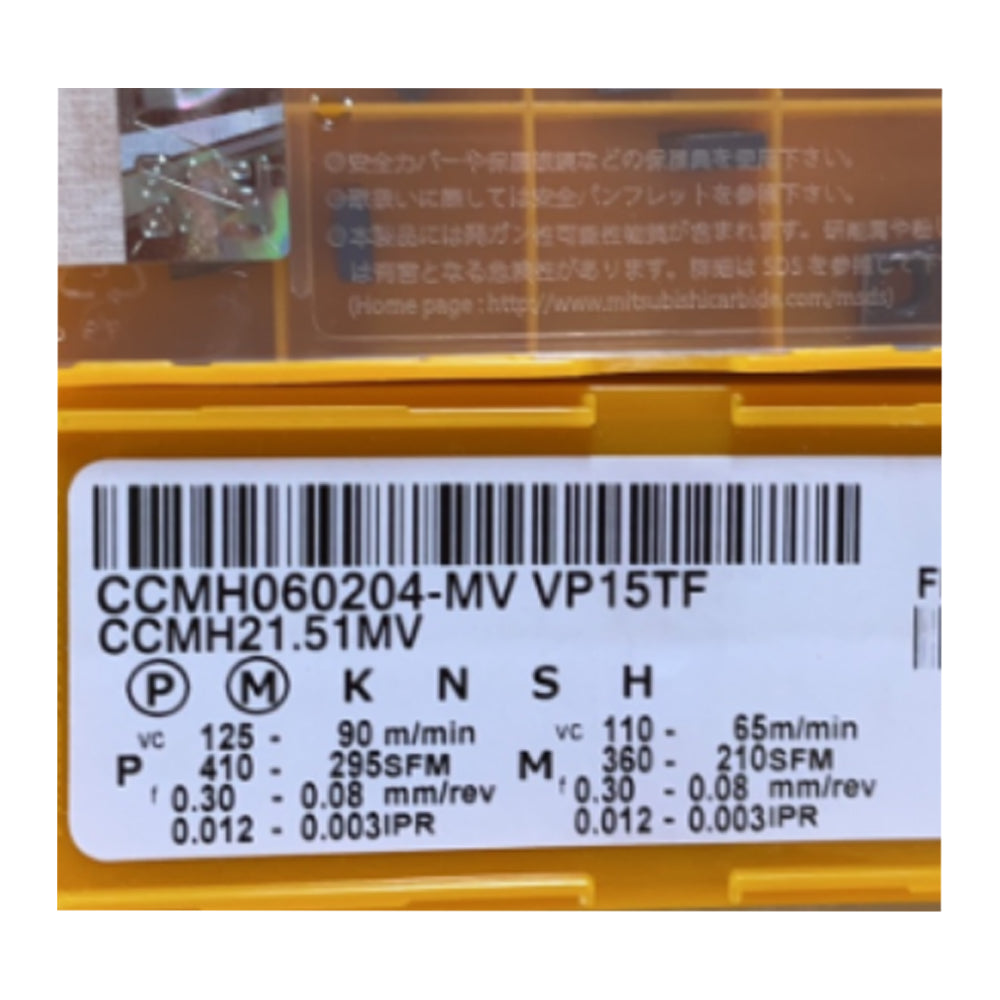

CCMH060204-MV VP15TF 10PCS Turning Inserts - 80° Positive Rhombic Inserts for CNC machine cutting
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Chipping geometry:MV
Alternative chipbreaker for medium cutting of carbon steel, alloy steel, mild steel and stainless steel.
1.A positive insert and the large rake angle achieve sharp cutting edgeperformance. 2.The double breakers and round shape in the rake face achieve a wide range of chip discharge.
Product Description:
The CCMH060204-MV VP15TF turning insert represents the pinnacle of cutting tool technology. With its 80° rhombic design and positive rake angle, this insert is engineered for sharp, efficient cutting. The coated blade material enhances durability, while the 0.4mm corner radius and 2.38mm thickness ensure stability and precision during machining. Ideal for CNC lathe cutters and boring bar machines, it excels in medium cutting applications across various materials including carbon steel, alloy steel, and stainless steel.
Specifications:
- Coated: VP15TF
- Designation: CCMH060204-MV VP15TF
- Shape: Rhombic
- Cutting Edge Angle: 80°
- Clearance Angle: 7°
- Corner Radius: 0.4mm
- Insert Thickness: 2.38mm
- Inscribed Circle Diameter: 6.35mm
- Recommended Cutting Material: Steel:Unstable Cutting ,Stainless Steel:Unstable Cutting ,Cast Iron:Unstable Cutting ,Heat-resistant Alloy, Titanium Alloy:Unstable Cutting
- Inch alternative: CCMH2(1.5)1 CCMH21.51
Applications:
- CNC Lathes
- Boring Bar Machines
- Medium cutting of carbon steel, alloy steel, mild steel, and stainless steel
Advantages:
- Sharp Cutting Performance: The 80° positive rake angle provides a sharp cutting edge, improving machining efficiency and finish.
- Efficient Chip Discharge: Double breakers and a rounded rake face ensure effective chip removal, reducing downtime and improving productivity.
- Versatile Use: Suitable for a wide range of materials including carbon steel, alloy steel, mild steel, and stainless steel.
- Durable Coating: Coated blade material extends tool life and maintains cutting performance under high-stress conditions.
- Precision Cutting: The rhombic design and accurate corner radius deliver precise and stable cutting results.
CCMH060204-MV VP15TF Turning Inserts - Precision CNC Lathe Cutting Tools CCMH 060204 MV VP15TF
-
High-Performance Cutting with CCMH060204-MV VP15TF Inserts
-
Optimized Chipping Geometry for Efficient Metal Removal
-
Versatile Applications for Steel, Stainless Steel, and More
-
Enhanced Cutting Edge with Positive 80° Rake Angle
-
Effective Chip Discharge with Double Breakers and Rounded Design
-
Reliable Performance in CNC Lathes and Boring Bar Machines
5-Point Description
-
Precision Cutting: The CCMH060204-MV VP15TF features an 80° positive rake angle and rhombic design for exceptional sharpness and accuracy in CNC lathe operations.
-
Enhanced Durability: Coated blade material provides increased resistance to wear and extends tool life, ensuring reliable performance under demanding conditions.
-
Efficient Chip Removal: Advanced chipping geometry with double breakers and a rounded rake face promotes effective chip discharge, minimizing interruptions and maximizing productivity.
-
Versatile Applications: Suitable for a wide range of materials including carbon steel, alloy steel, mild steel, and stainless steel, making it a versatile choice for various machining tasks.
-
Stable Performance: With a thickness of 2.38mm and an inscribed circle diameter of 6.35mm, the insert offers stability and precision, enhancing cutting performance across different machining setups.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
