Mitsubishi CCMT060204 VP15TF Carbide Turning Insert – CVD Coated, Steel & Stainless
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Mitsubishi CCMT060204 VP15TF Carbide Turning Insert – CVD Coated for Steel & Stainless Machining
Precision-engineered for high-efficiency external turning of carbon steel, alloy steel, and stainless steel. Engineered with Mitsubishi's advanced CVD multi-layer coating for superior wear resistance and extended tool life.
Product Overview
"Which carbide insert is best for finishing and semi-finishing carbon steel and stainless steel on a CNC lathe?"

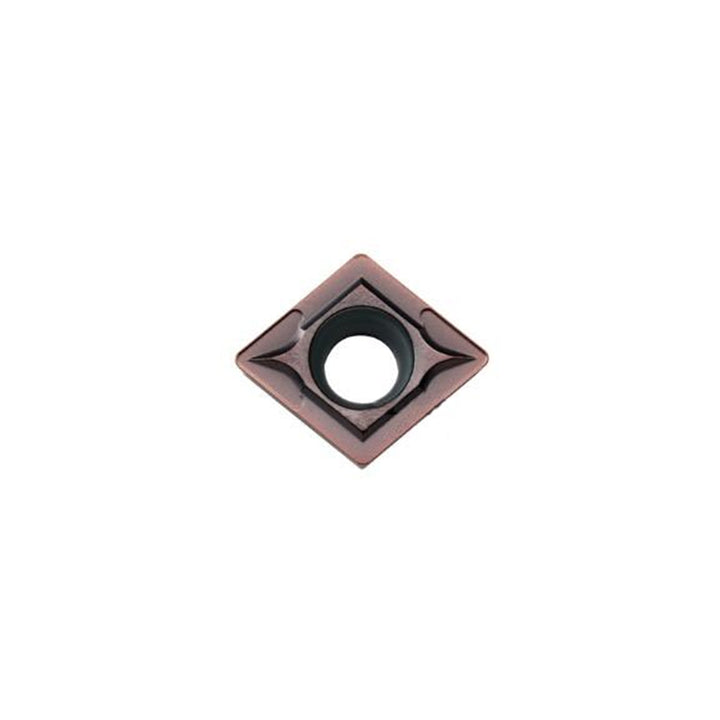

The Mitsubishi CCMT060204 VP15TF is a 80° diamond-shaped (rhombic) carbide turning insert designed for finishing to semi-finishing operations on steel and stainless steel workpieces. The VP15TF grade features a CVD multi-layer coating (TiCN + Al₂O₃ + TiN) applied over a fine-grain carbide substrate, delivering an exceptional balance of hardness, toughness, and thermal resistance.
The 04 chipbreaker geometry (medium-light chip control) produces tight, manageable chips at moderate feed rates, reducing vibration and improving surface finish — ideal for precision turning applications where Ra values matter.
Search Keywords:
Model Code Decoder – CCMT060204 VP15TF
Every character in the ISO insert designation carries precise engineering meaning:
80° Diamond (Rhombic)
7° (Type C)
±0.05–0.13mm
Hole + Clamp (T-land)
6.35mm (1/4")
2.38mm
0.4mm (R0.4)
Mitsubishi VP Series
P15 – Steel Turning
Medium-Light Geometry
Key Features
Technical Specifications
Metric & Imperial Dimensions
| Parameter | Metric | Imperial |
|---|---|---|
| Insert Shape | 80° Diamond (C) | 80° Diamond (C) |
| Cutting Edge Length (L) | 6.35 mm | 0.250 in |
| Insert Thickness (S) | 2.38 mm | 0.094 in |
| Corner Radius (rε) | 0.4 mm | 1/64 in |
| Inscribed Circle (IC) | 6.35 mm | 1/4 in |
| Clearance Angle | 7° | 7° |
| Tolerance Class | M (±0.05–0.13 mm) | M (±0.002–0.005 in) |
| Hole Diameter | 2.8 mm | 0.110 in |
| Grade | VP15TF | VP15TF |
| Coating | CVD (TiCN + Al₂O₃ + TiN) | CVD (TiCN + Al₂O₃ + TiN) |
| ISO Application | P10–P25, M10–M20 | P10–P25, M10–M20 |
| Chipbreaker | TF (Medium-Light) | TF (Medium-Light) |
| Packaging | 10 pcs / box | 10 pcs / box |
Recommended Cutting Parameters
| Workpiece Material | Cutting Speed Vc (m/min) | Cutting Speed Vc (SFM) | Feed Rate fn (mm/rev) | Feed Rate fn (in/rev) | Depth of Cut ap (mm) |
|---|---|---|---|---|---|
| Carbon Steel (P) | 200–350 | 656–1148 | 0.10–0.25 | 0.004–0.010 | 0.3–2.0 |
| Alloy Steel (P) | 150–280 | 492–919 | 0.10–0.20 | 0.004–0.008 | 0.3–1.5 |
| Stainless Steel (M) | 120–220 | 394–722 | 0.08–0.18 | 0.003–0.007 | 0.2–1.5 |
| Cast Iron (K) | 150–250 | 492–820 | 0.10–0.25 | 0.004–0.010 | 0.5–2.0 |
* Parameters are starting recommendations. Adjust based on machine rigidity, coolant, and workpiece condition.
🔧 Compatible Tool Holders (CCMT060204)
The CCMT060204 insert is compatible with the following Mitsubishi and standard ISO tool holders:
Contact us to confirm compatibility with your specific machine setup.
Applications
Mitsubishi Grade Comparison – Steel Turning
Choosing the right grade for your application:
| Grade | Coating | ISO Range | Best For | Speed Range |
|---|---|---|---|---|
| VP05RT | CVD | P05–P15 | High-speed finishing, hardened steel | Very High |
| VP15TF ✓ | CVD | P10–P25 | Finishing to semi-finishing, steel & SS | High |
| VP20RT | CVD | P15–P30 | Semi-finishing, interrupted cuts | Medium-High |
| VP30RT | CVD | P25–P40 | Roughing, heavy interrupted cuts | Medium |
| UE6110 | PVD | P05–P20 | Finishing, low cutting forces | High |
| US735 | PVD | M05–M25 | Stainless steel specialist grade | Medium-High |
✓ = Current product. Highlighted row indicates VP15TF position in the lineup.
Why Choose Us
Customer Reviews
"Running these on 4140 alloy steel at 280 m/min — surface finish is outstanding. Tool life is noticeably better than the competitor grade I was using before. Will be ordering in bulk."
"Sehr gute Standzeit bei der Bearbeitung von 1.4301 (304 Edelstahl). Die TF-Spangeometrie erzeugt kurze, saubere Späne. Klare Empfehlung für Finishing-Operationen."
"Ottima qualità per la tornitura di acciaio al carbonio. Ho ottenuto Ra 0.8 su alberi in C45 senza problemi. Spedizione rapida e imballaggio professionale."
"VP15TFグレードはSUS304の仕上げ加工に最適です。切削抵抗が低く、工具寿命も安定しています。三菱マテリアルの品質は信頼できます。"
"Used these for a batch of 316 stainless shafts. Consistent performance across the whole batch — no premature edge failure. The R0.4 nose radius gives a great finish."
"在加工45号钢时表现非常稳定，切削速度250m/min，进给0.15mm/rev，表面粗糙度Ra1.6轻松达到。性价比高，会持续采购。"
"Excellent insert for automotive shaft production. We machine 42CrMo4 steel and these inserts last 30% longer than our previous supplier. Highly recommended."
Frequently Asked Questions
💡 Grade Selection Tips – Mitsubishi VP Series
- VP05RT / VP10RT: Best for high-speed finishing of hardened steel and cast iron. Maximum wear resistance, lower toughness.
- VP15TF (This Product): Ideal balance for finishing to semi-finishing of steel and stainless. Most versatile grade in the VP series.
- VP20RT / VP25RT: Choose when machining interrupted cuts, forged surfaces, or variable stock allowances in steel.
- UE6110 (PVD): Prefer for low-cutting-force applications, thin-wall parts, or when minimizing heat generation is critical.
- US735 (PVD): Dedicated stainless steel grade — use when machining 316L, Duplex, or super-austenitic grades.
- Rule of thumb: CVD grades (VP series) excel at high speeds; PVD grades (UE/US series) excel at lower speeds with sharp edges.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
