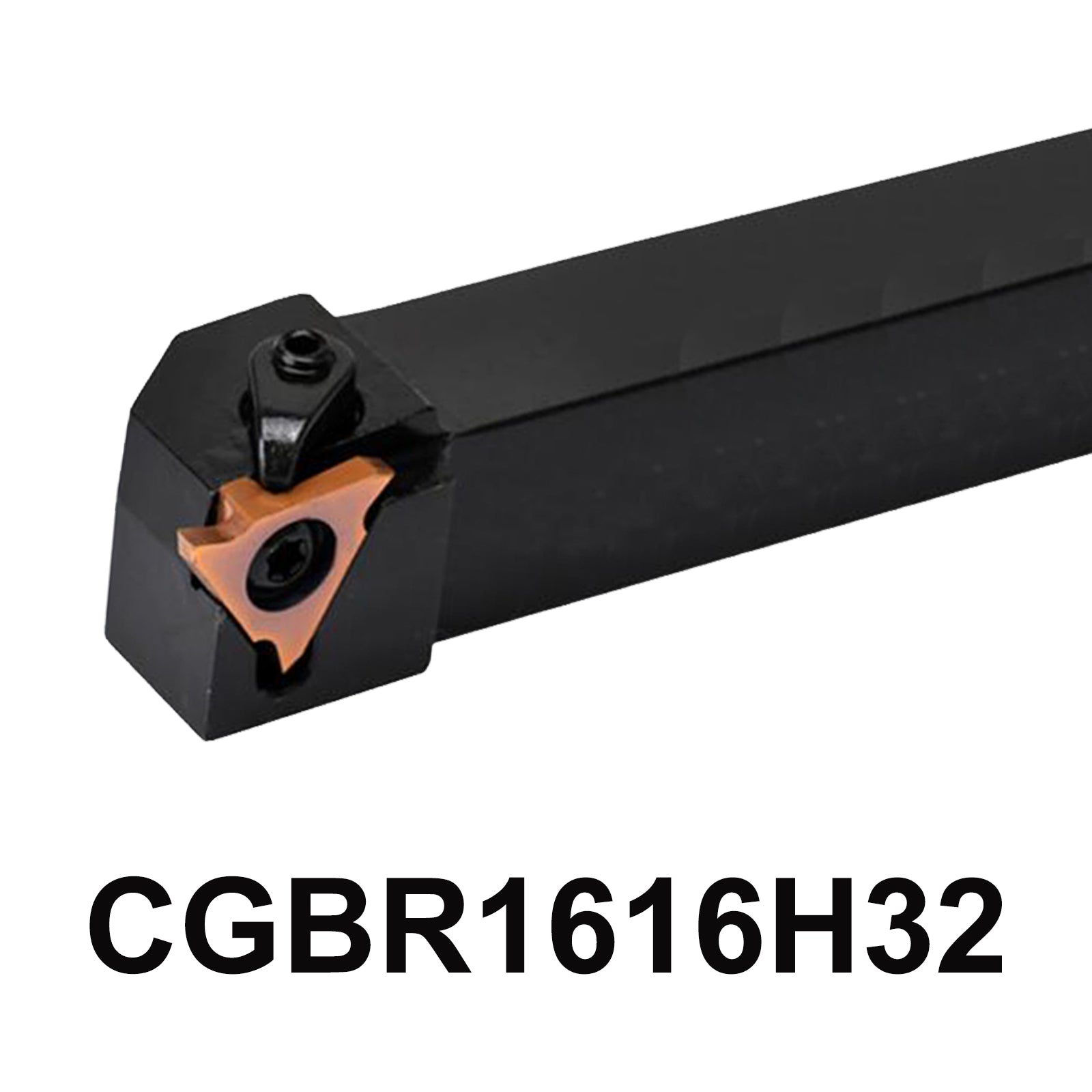

CGBR1616H32 Grooving Cutting Holder
CGBR CGBL

Shop CGBR1616H32 Grooving Cutting Holder | High-Quality CNC Tool

$15.91 USD
Shipping calculated at checkout.

cnchome-beyond assurance

1.Safe payments Payment methods used by many international shoppers
2.Security & privacy We respect your privacy so your personal details are safe
3.Buyer protection Get your money back if your order isn't delivered by estimated date or if you're not satisfied with your order

4.Free shipping

american expressmasterpaypalvisa
SKU: CGBR1616H32
Availability : In Stock Pre order Out of stock
Description

Description:



CGBR1616H32 Grooving Cutting Holder, a precision-engineered solution designed for optimal performance in your machining operations.

With dimensions of 16x16x100mm and a versatile cutting width ranging from 0.5mm to 2.5mm, this tool holder is perfect for a variety of grooving applications. Compatible with GB32R inserts


Product parameters:



  • Tool Holder Model:  CGBR1616H32
  • Tool Holder Material : Carbide Steel, Carbon Steel
  • Tool Holder Size : About 16 * 16 * 100 mm
  • Cutting Width : About 0.5-2.5 mm
  • Applicable blade : GB32R
  • Clamp : HL1808
  • Screw : M3.5*10 ML0520
  • Stud Screw : ML0520
  • Wrench : T15 L2.5
  • Detailed Dimensions of the tool holder : as pictured



Package Contents:



1 * CGBR1616H32 Grooving Cutting Holder

1 * "L" Type wrench

1 * "T" Type wrench

1 * M3.5*10 Type Screw

1 * ML0520 Type Stud Screw



Features:



1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise grooving, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench





BEYOND CGBR1616H32 External Grooving Turning Tools CGBR1616H32 CGBR1616 CGBR1616 H32 CNC Lathe Cutter Holder Machine Metal Tool


Precision and Flexibility for Your Machining Needs


Essential Features for Enhanced Performance



5-Point Description

  1. Compact Design: The CGBR1616H32 boasts a tool holder size of 1616100mm, making it ideal for machining in tight spaces without sacrificing performance.

  2. Adjustable Cutting Width: With a cutting width ranging from 0.5mm to 2.5mm, this holder offers exceptional versatility, allowing you to tackle various grooving tasks with ease.

  3. Complete Installation Kit: The package includes the tool holder, HL1808 clamp, M3.5*10 screws, ML0520 stud screw, and T20 L2.5 wrench, ensuring a seamless setup process.

  4. Versatile Insert Compatibility: Designed for use with GB32R inserts, this tool holder adapts to different materials and applications, making it a flexible choice for your machining needs.

  5. Durable Construction: Made from high-quality materials, the CGBR1616H32 is built to withstand the rigors of CNC lathe operations, providing long-lasting reliability and performance.

CGBR1616H32
Slotting Tool Dimensions PDF
