Description:

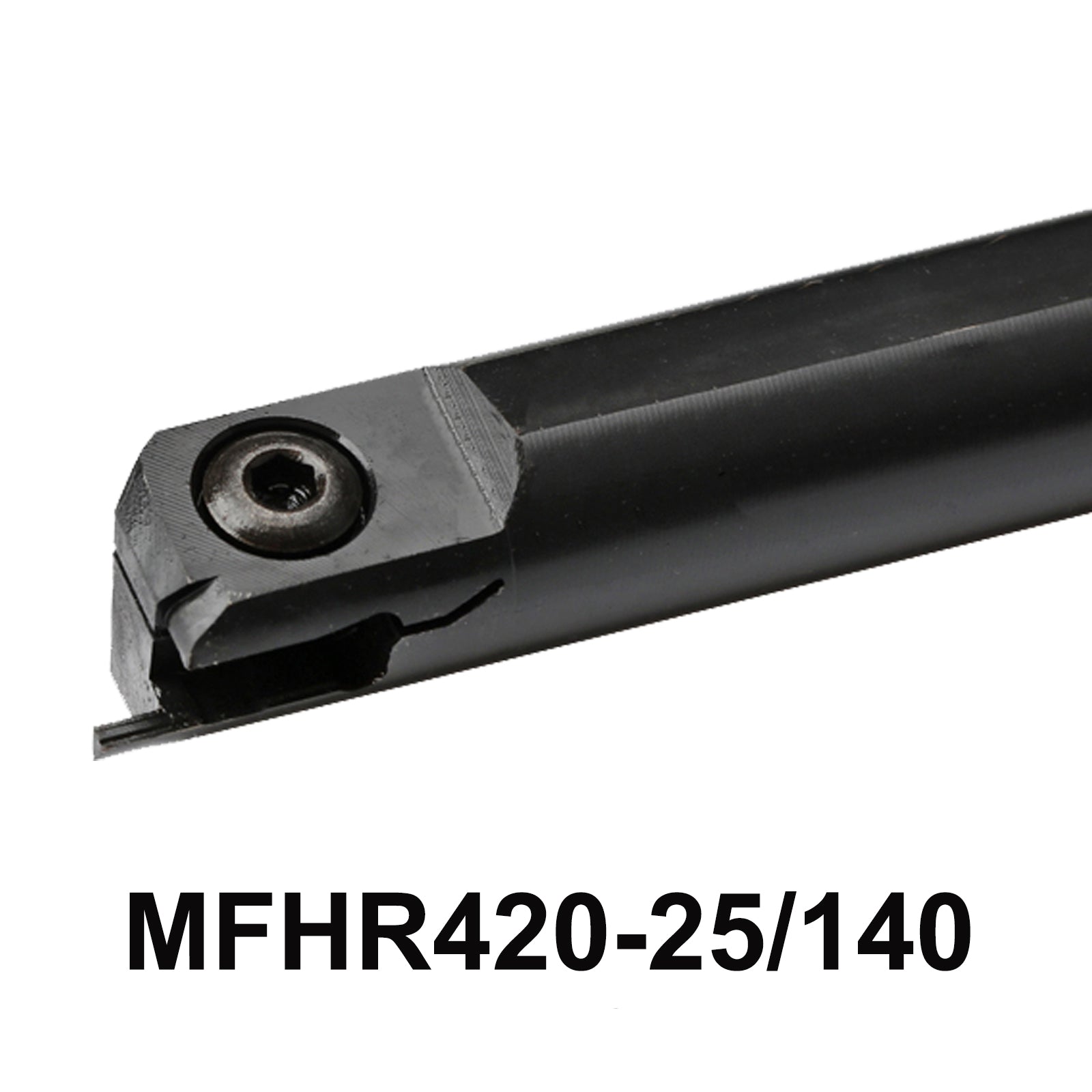

The MFHR420-25/140 Internal Groove Cutting Tool  is designed to deliver superior performance in CNC lathe operations

With a maximum cutting depth of 140mm and 20mm shank diameter, it is ideal for handling both shallow and deep grooves with ease Compatible with MGMN400 inserts, this tool holder offers exceptional cutting stability, efficiency, and durability.

Product parameters:

• Tool Holder Model:  MFHR420-25/140

• Tool Holder Material : Carbide Steel, Carbon Steel

• Total length : 180mm
• Shank : 20mm
• Dmin : 21mm
• Min : 25mm
• Max : 140mm
• Applicable blade : MGMN400

• Screw : M6*15C

• Wrench : L4
• Detailed Dimensions of the tool holder : as pictured

Package Contents:

1 * MFHR420-25/140 Internal Groove Cutting Tool

1 * "L" Type wrench

1 * M6*15C Type Screw

Features:

1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise grooving, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench

BEYOND MFHR420-25/140 Internal Groove Cutting Tool MFHR420-25/140 MFHR420  MFHR420 25/140 CNC Lathe Cutter Slotting Holder Machine Boring Bar

• High-Performance MFHR420-25/140 Internal Groove Cutting Tool for Precise Machining

• Maximize Efficiency with the MFHR420-25/140 Internal Groove Cutter – Ideal for CNC Lathe Applications

5-Point Description

1. Superior Cutting Depth: The MFHR420-25/140 tool holder offers a maximum cutting depth of 140mm and a minimum internal diameter of 21mm, allowing you to tackle deep and precise internal grooving operations with ease.

2. Durable Construction: Designed for reliability and longevity, the tool holder features a 20mm shank and a total length of 180mm, built from high-quality materials to withstand the demands of heavy-duty machining and high-speed cutting.

3. Optimized for MGMN400 Inserts: This cutting tool is compatible with MGMN400 inserts, known for their high-performance cutting ability. This allows for consistent, high-quality grooves and enhanced tool life, reducing downtime and improving overall machining efficiency.

4. Complete Tool Setup: The MFHR420-25/140 comes with the necessary M6*15C screws and an L4 wrench, ensuring quick and hassle-free installation on your CNC lathe machine. This complete setup makes it easy to integrate into your workflow without the need for additional tools.

5. Versatile and Reliable: Whether you're cutting deep grooves or working with different materials, this internal groove cutting tool is designed to deliver consistent, precise results. Its ability to handle a wide range of internal diameters (minimum 25mm, maximum 140mm depth) makes it a versatile choice for various industrial applications
