Description:

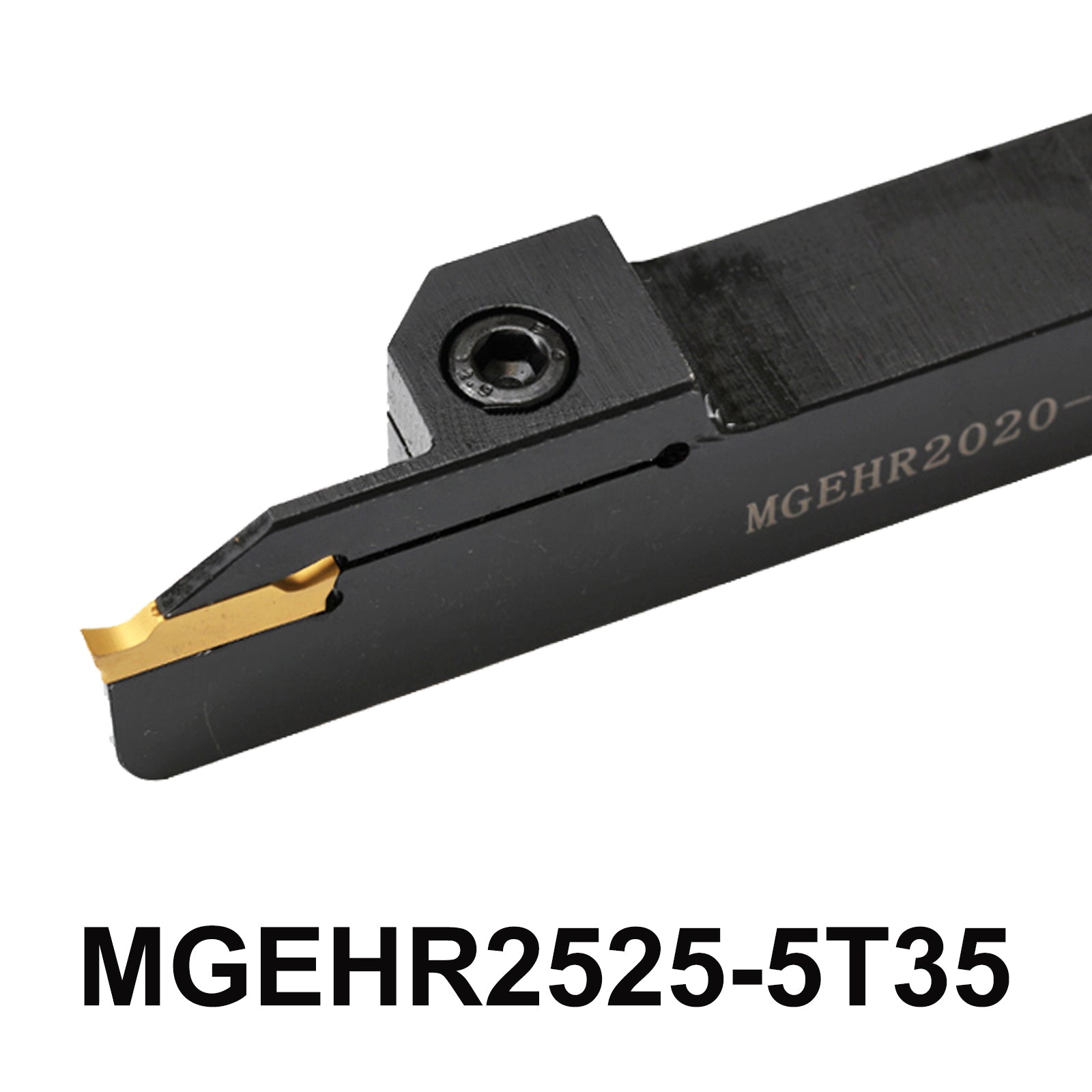

Introducing the MGEHR2525-5T35 Slotting Tool Holder , your ideal solution for precise and efficient grooving in CNC lathe applications.

With dimensions of 25x25x150mm and  a cutting width of 5mm. Compatible with MGMN500-M MGGN500-M MRMN500-M inserts

Product parameters:

• Tool Holder Model:  MGEHR2525-5T35

• Tool Holder Material : Carbide Steel, Carbon Steel

• Tool Holder Size : About 25 * 25 * 150 mm

• Tmax : 35 mm
• Cutting Width : About 5 mm

• Applicable blade : MGMN500-M MGGN500-M MRMN500-M

• Screw : M6*20

• Wrench : L5

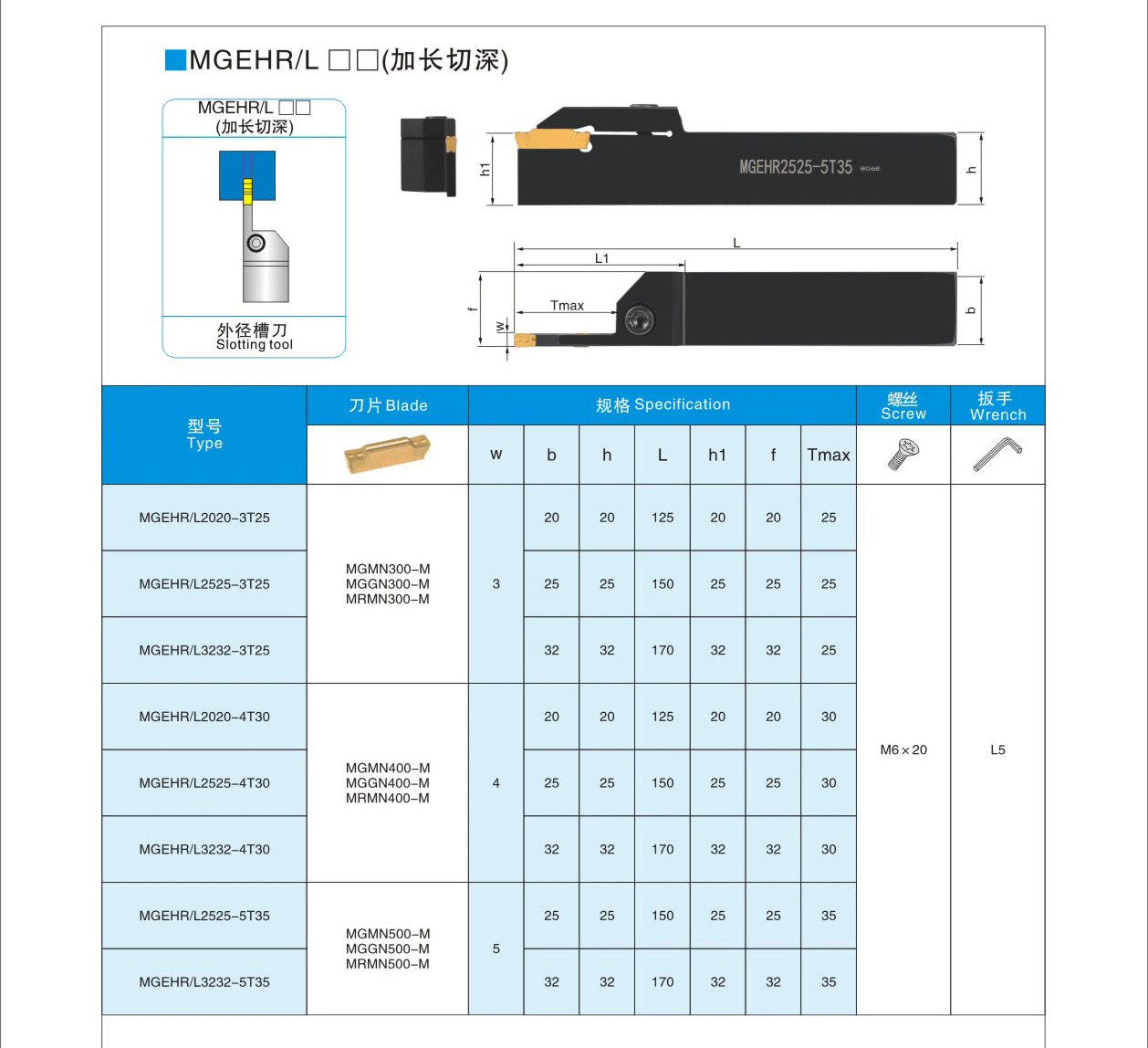

• Detailed Dimensions of the tool holder : as pictured

Package Contents:

1 *MGEHR2525-5T35 Slotting Tool Holder

1 * "T" Type wrench

1 * M6*20 Type Screw

Features:

1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise grooving, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench

BEYOND MGEHR2525-5T35 Slotting Tool Holder  MGEHR2525-5T35 MGEHR2525 MGEHR2525 5T35 CNC Lathe Cutter Holder Machine Metal Tool

Transform Your Machining Experience with the MGEHR2525-5T35 Slotting Tool Holder

Essential Slotting Tool Holder for CNC Lathes: MGEHR2525-5T35

5-Point Description

1. Compact and Efficient Design: The MGEHR2525-5T35 Slotting Tool Holder  boasts dimensions of 25x25x150mm, ensuring stability and precision in slotting applications while fitting seamlessly into various CNC lathe setups.

2. Enhanced Cutting Performance: With a cutting width of 5mm and a maximum depth of cut (Tmax) of 35mm, this tool holder allows for clean and accurate slots, improving the overall efficiency of your machining operations.

3. Comprehensive Installation Package: Each order includes the essential M6x20 screws and L5 wrench, providing everything you need for a hassle-free setup and immediate use upon arrival.

4. Versatile Insert Compatibility: Designed to work with MGMN500-M, MGGN500-M, and MRMN500-M inserts, this tool holder adapts to various materials and applications, making it a versatile choice for any machinist.

5. Superior Build Quality: Crafted from high-quality materials, the MGEHR2525-5T35 Slotting Tool Holder  is built to last, ensuring reliability and durability even under the most demanding machining conditions.
