R5 (10mm) Aluminum Arc Chamfer Cutter
30-Day Free Returns
Free Worldwide Shipping
BEYOND R5 (10mm) Aluminum Arc Chamfer Cutter
Professional Double-End Radius End Mill for CNC Edge Rounding and Chamfering
The BEYOND R5 (10mm) Aluminum Arc Chamfer Cutter is specially designed for precise chamfering, edge rounding, and deburring on aluminum and other non-ferrous materials. With its R5 arc radius and double-end structure, it provides excellent stability, smooth cutting, and long-lasting performance in CNC milling applications.
Key Features:
- R5 arc radius ensures consistent edge rounding and chamfer transitions
- Double-end design doubles the tool’s lifespan and reduces tool change time
- Made from high-quality tungsten carbide for superior wear resistance
- Optimized for aluminum, brass, copper, and plastic machining
- Excellent chip removal and surface smoothness at high spindle speeds

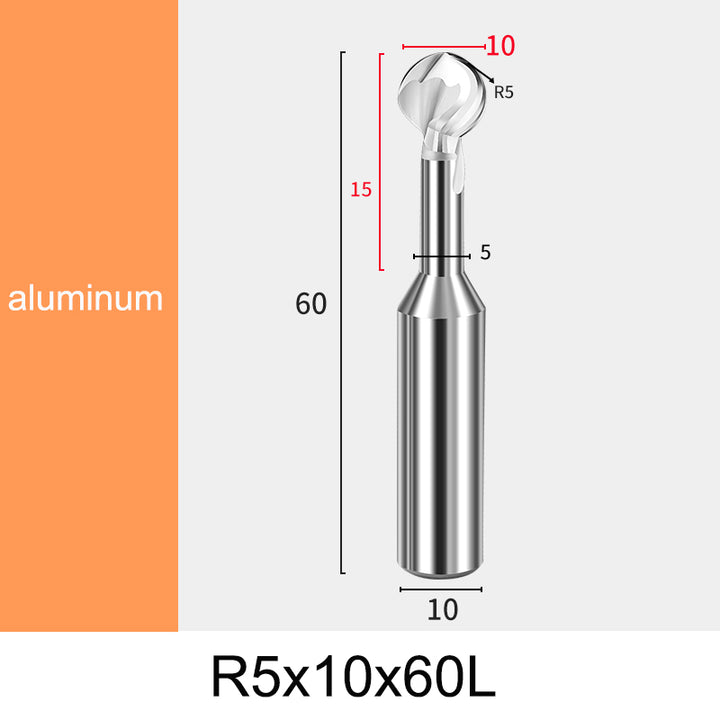

Technical Specifications:
| Item | Specification |
|---|---|
| Brand | BEYOND |
| Model | R5 (10mm) Arc Chamfer Cutter |
| Cutting Diameter (D1) | 10mm |
| Radius (R) | R5 |
| Shank Diameter (D) | 10mm |
| Total Length (L) | 75mm |
| Relief Depth | 5mm |
| Flutes | 2 |
| Material | Tungsten Carbide |
| Coating | Uncoated (Mirror Finish for Aluminum) |
Applications:
The BEYOND R5 chamfer cutter is ideal for high-speed CNC machining of aluminum parts where precision edge shaping is critical. Perfect for finishing, deburring, and creating smooth arc chamfers on molds, plates, or aluminum frames.
Recommended Use:
- Workpiece Material: Aluminum, Brass, Copper, Plastic
- Machining Type: Chamfering, Edge Rounding, Deburring
- Machine Compatibility: CNC Milling Machine, Engraving Machine
- Coolant: Air or Mist Cooling Recommended
Advantages of BEYOND Chamfer Cutters:
- Precision-ground edges for mirror surface finishing
- Excellent cutting performance with minimal vibration
- Durable, long tool life in high-speed machining
- Perfect geometry for aluminum alloy processing
Why Choose BEYOND:
BEYOND provides professional-grade CNC cutting tools designed for performance, accuracy, and efficiency. Each cutter undergoes strict quality inspection to ensure precision and reliability for modern machining operations.
