R5 (10mm) Steel Arc Up & Down Chamfer carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND R5 (10mm) Steel Arc Up & Down Chamfer End Mill – Double-Sided Edge Chamfering Cutter
The BEYOND R5 (10mm) Steel Arc Chamfer End Mill is engineered for efficient and accurate edge chamfering on steel components. Its arc-type dual-edge design allows simultaneous top and bottom chamfering, ensuring perfect edge transitions and burr-free finishes during CNC machining.
Key Features
- Cutting Diameter (d1): 10mm
- Chamfer Radius (R): R5
- Shank Diameter (d2): 10mm
- Overall Length (L): 75mm
- Material: Ultra-fine tungsten carbide with superior hardness.
- Design: Arc-shaped up & down cutting edges for dual chamfering.
- Coating: AlTiN/TiAlN coating to resist heat and oxidation.
- Applications: Ideal for carbon steel, die steel, tool steel, and alloy steel.
- Machining Type: CNC edge chamfering, deburring, and finishing.
Technical Specifications

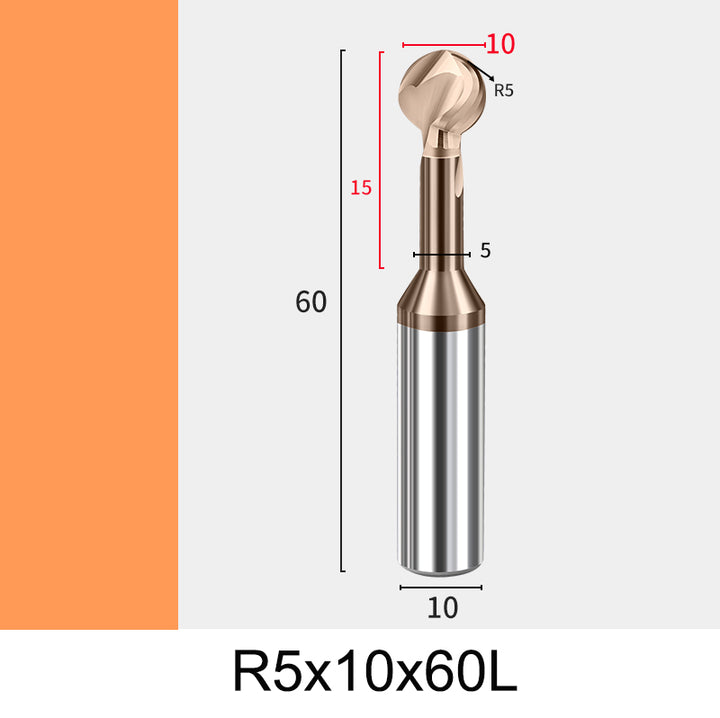

| Model | Radius (R) | Cutting Diameter (d1) | Shank Diameter (d2) | Overall Length (L) | Material |
|---|---|---|---|---|---|
| R5-10MM | R5 | 10mm | 10mm | 75mm | Tungsten Carbide |
Performance Advantages
- Performs dual-side chamfering in one pass, reducing setup time.
- Arc-edge geometry delivers smooth cutting and eliminates burrs.
- Excellent wear resistance under continuous steel machining conditions.
- Stable and precise tool balance minimizes vibration at high RPM.
- Optimized coating extends tool life and improves surface quality.
Recommended Cutting Parameters
- Cutting Speed (Vc): 100–160 m/min
- Feed per Tooth (fz): 0.02–0.06 mm/tooth
- Depth of Cut (ap): 0.5–1.5 mm
Applications
The R5 (10mm) Steel Arc Chamfer End Mill is suitable for use in mold processing, die repair, machinery manufacturing, and general metalworking. It enables high-efficiency chamfering and deburring on various steel materials, ensuring professional-level finish and dimensional accuracy.
Why Choose BEYOND?
BEYOND cutting tools are designed for precision and durability. Each end mill is made from high-quality carbide and goes through strict QC to guarantee consistent performance in industrial CNC operations worldwide.
