• S0806J-SWUBR06 Information Overview

• Overview

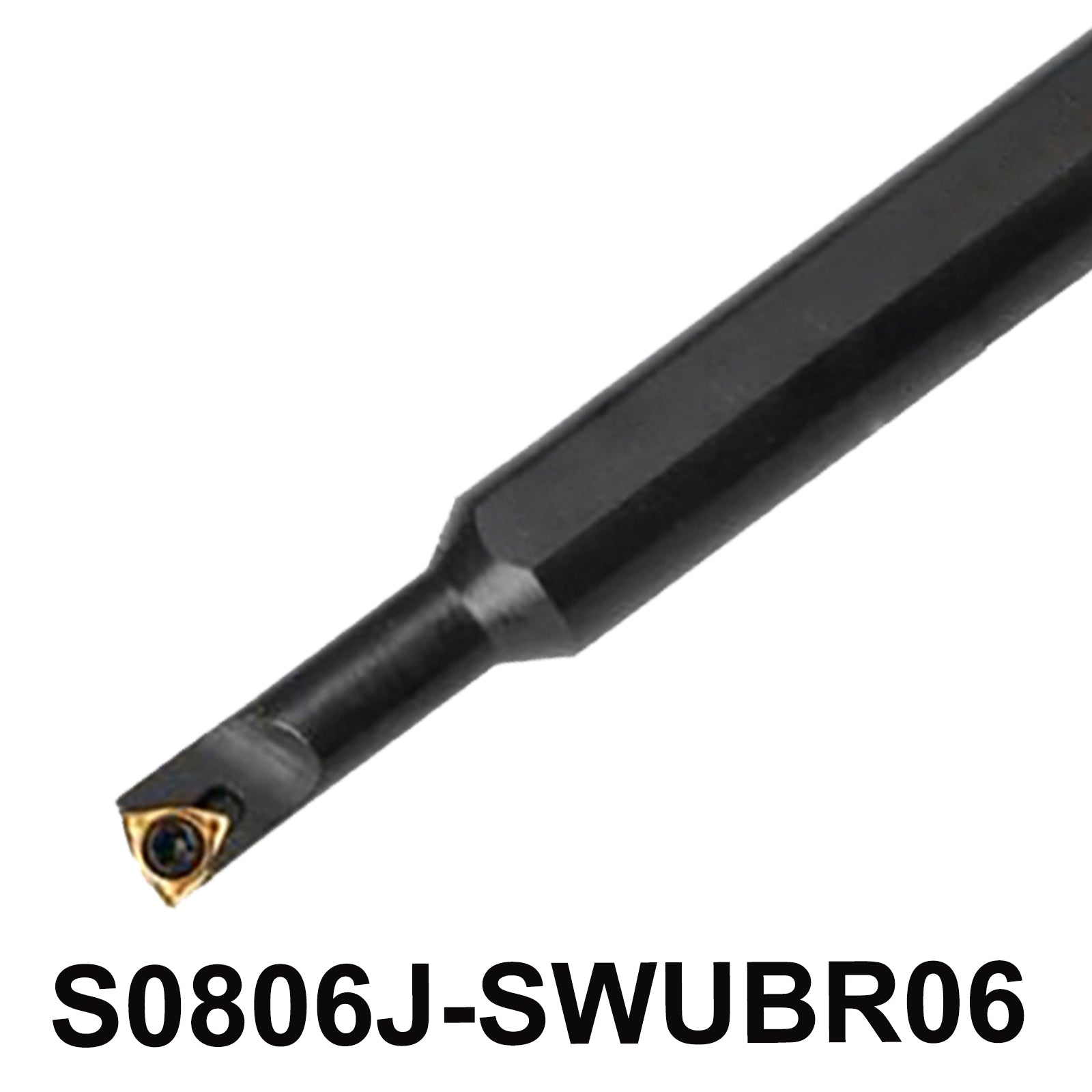

The S0806J-SWUBR06 Mechanical Lathe CNC Internal Boring Bar Tool Holder is expertly designed for machinists seeking precision and versatility in their operations. Constructed from high-quality alloy steel, this tool holder boasts a 93° cutting edge angle and a 5° relief angle, ensuring efficient internal boring with exceptional surface quality. The user-friendly S-type (screw-type) design allows for effortless blade adjustments, and compatibility with WBGT inserts makes it ideal for a variety of CNC machining tasks. Its compact dimensions provide enhanced control, making the S0806J-SWUBR06 an essential tool for any CNC lathe setup.

• Dimensions and Specifications of S0806J-SWUBR06 Carbide Boring Bars

• Features and Specifications

  • Model: S0806J-SWUBR06
  • Package Includes: S0806J-SWUBR06 Tool Holder and compatible Screws, and Wrenches
  • 95° cutting edge angle and 7° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 8mm
  • Total Length: 110mm
  • Cutting Blade Length: 6mm
  • Screw Size: M2.2*5
  • Wrench: T6
  • Compatible Blades: WBGT060102

• 5-Point Description

1. Superior Alloy Steel Construction: The S0806J-SWUBR06 is crafted from high-grade alloy steel, providing durability and long-lasting performance under rigorous machining conditions.

2. Optimal 93° Cutting Edge Angle: Designed for precision, the 93° cutting edge angle and a 5° relief angle enhance cutting efficiency and produce smooth, accurate internal finishes.

3. Convenient S-Type Adjustment System: The S-type (screw-type) design features an M2.2*5 screw and T6 wrench for quick adjustments, allowing for easy and precise blade positioning.

4. Compatible with WBGT Inserts: This tool holder is compatible with WBGT060102 inserts, making it versatile for a wide range of CNC lathe applications and ensuring reliable performance.

5. Compact and Ergonomic Design: With an 8mm handle diameter and a total length of 110mm, the S0806J-SWUBR06 offers excellent control and stability, perfect for intricate internal turning tasks.
