5-Point Description:

1. Precision Cutting: 93° cutting edge angle and 7° blade relief for accurate internal machining.
2. Durable Build: Made from high-strength alloy steel to withstand demanding operations.
3. Versatile Inserts: Compatible with multiple CCMT carbide inserts for flexibility.
4. Compact Design: 8mm handle diameter and 125mm length for robust support and stability.
5. Efficient Tooling: S-type screw mounting system for easy and quick tool changes.

Applications:

Ideal for CNC lathes and machine tools, this boring bar tool holder excels in internal turning and boring tasks, providing precision and stability in various machining scenarios.

Advantages:

• High precision and smooth operation due to the optimized cutting edge angle.
• Durable alloy steel construction ensures reliability and long-lasting performance.
• Versatility with compatibility across multiple carbide inserts.
• Compact design enhances support and stability during machining.
• User-friendly S-type screw system for efficient tool changes.

Package Includes:

• S08K-SCZCL06  Tool Holder
• Compatible  Screws and Wrenches

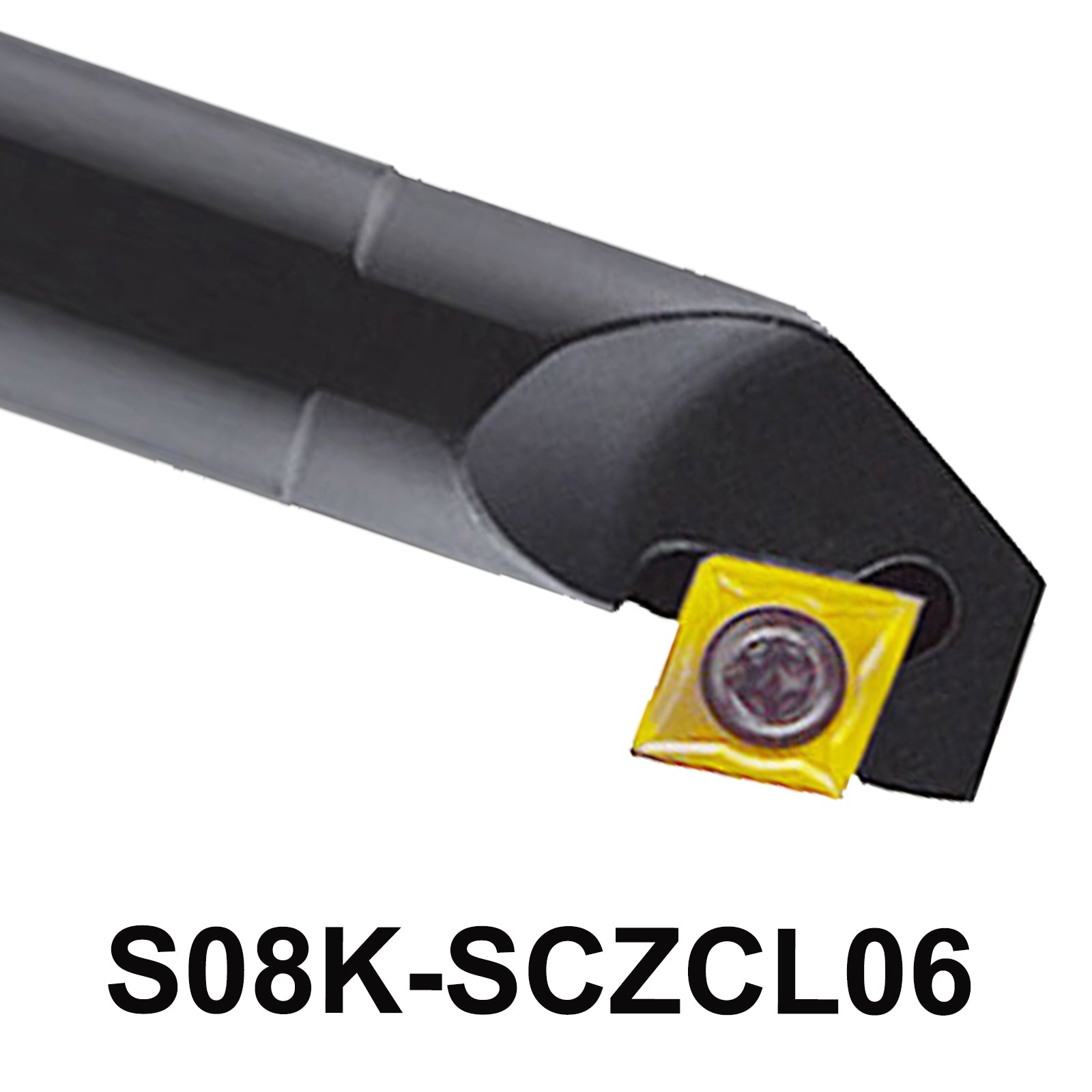

S08K-SCZCL06 Precision Internal Boring Bar Tool Holder – Ideal for CNC Machining

1. High Precision with 93° Cutting Edge Angle for Accurate Internal Turning

2. Durable Alloy Steel Construction for Enhanced Tool Longevity

3. Compatible with Various CCMT Carbide Inserts for Versatile Applications

1. Compact and Efficient Design for CNC Lathe Operations

2. Easy Tool Replacement with S-Type Screw Mounting System

3. Robust Performance with 8mm Handle Diameter and 125mm Length

Overview:

The S08K-SCZCL06 Internal Boring Bar Tool Holder is expertly designed for precision internal turning and boring in CNC machining. Featuring a 93° cutting edge angle and a 7° blade relief, this tool holder ensures accurate and smooth cuts. Constructed from high-strength alloy steel, it provides exceptional durability and reliability. The tool holder's compact dimensions, with an 8mm handle diameter and 125mm total length, offer robust support and stability. Compatible with a range of CCMT carbide inserts, the S08K-SCZCR06 is versatile and ideal for a variety of CNC lathe applications.

Detail Page:

• Material: Alloy Steel
• Type: S-Type (Screw-type)
• Model:  S08K-SCZCL06
• Diameter Handle : 8mm
• 93° cutting edge angle and 7° relief angle.
• Total Length: 125mm
• Cutting Blade Length: 6mm
• Included Accessories: M2.5*6 Screw, T8 Wrench
• Compatible Inserts: CCMT060202, CCMT060204, CCMT060208, CCMT2(1.5)0, CCMT(1.5)1, and CCMT(1.5)2

Precautions

• Inspection: Always inspect the tool holder for any damage before use.

• Mounting: Ensure the tool holder is securely mounted in the tool post to prevent vibration.

• Insert Alignment: Check that the inserts are properly aligned and secured to avoid poor machining results.
