BEYOND S10K-SWLCR04 Internal Turning Tools Holder S10K SWLCR04 SWLCR 04 Boring Bar Carbide SWLCR Carbide Inserts WCMX0402 WCMX040202

• S10K-SWLCR04 Information Overview

• Overview

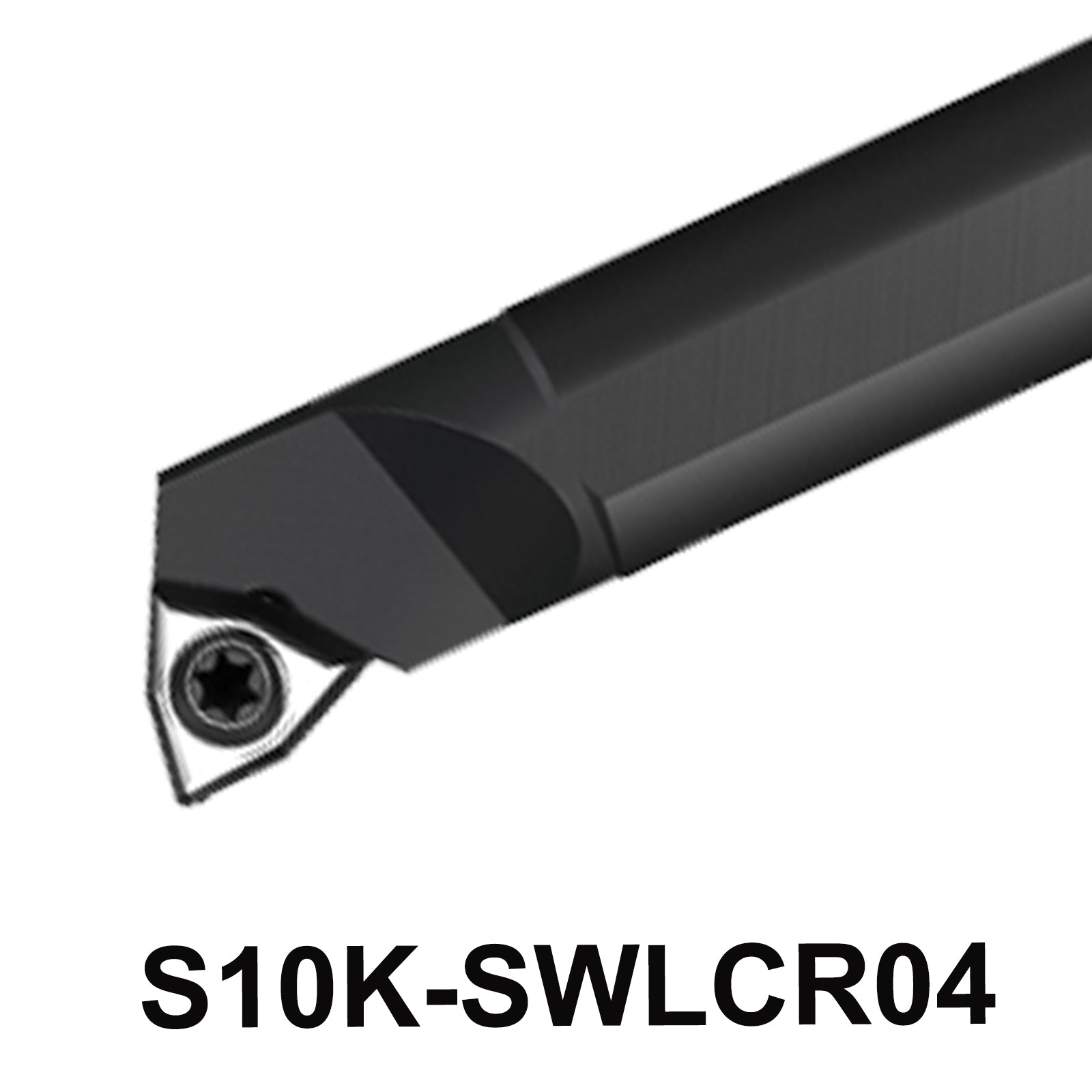

The S10K-SWLCR04 Mechanical Lathe CNC Internal Boring Bar Tool Holder is engineered for professionals who demand precision and versatility in their machining operations. Constructed from high-quality alloy steel, this tool holder features a unique 95° cutting edge angle, ensuring efficient internal boring with exceptional surface quality. The user-friendly S-type (screw-type) design allows for easy blade adjustments, and compatibility with WCMX inserts makes it adaptable for various tasks.

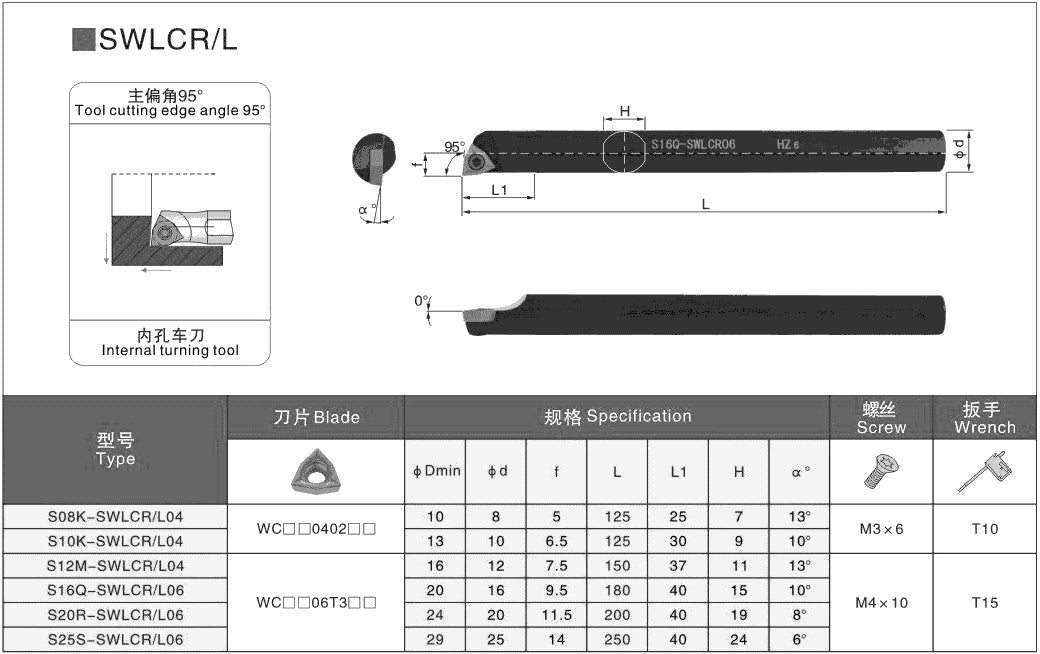

• Dimensions and Specifications of S10K-SWLCR04 Carbide Boring Bars

• Features and Specifications

  • Model: S10K-SWLCR04
  • Package Includes: S10K-SWLCR04 Tool Holder and compatible Screws, and Wrenches
  • 95° cutting edge angle and 7° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 10mm
  • Total Length: 125mm
  • Cutting Blade Length: 4mm
  • Screw Size: M3*6
  • Wrench: T10
  • Compatible Blades: WCMX040204  WCMX040208

• 5-Point Description

1. High Precision Cutting: The 95° cutting edge angle combined with a 7° blade relief ensures clean and accurate cuts for superior results.
2. Robust Alloy Steel: Made from durable alloy steel, this tool holder is built to withstand rigorous machining conditions, ensuring long-lasting performance.
3. Versatile Compatibility: Compatible with WCMX040204 and WCMX040208 carbide inserts, providing flexibility for various machining tasks.
4. Efficient Design: The S-type screw mechanism allows for quick adjustments, optimizing setup time and productivity in your workshop.
5. Compact and Ergonomic: With an 8mm handle diameter and a total length of 125mm, this tool holder is designed for ease of handling and maneuverability.
