• S1207K-SWUBR06 Information Overview

• Overview

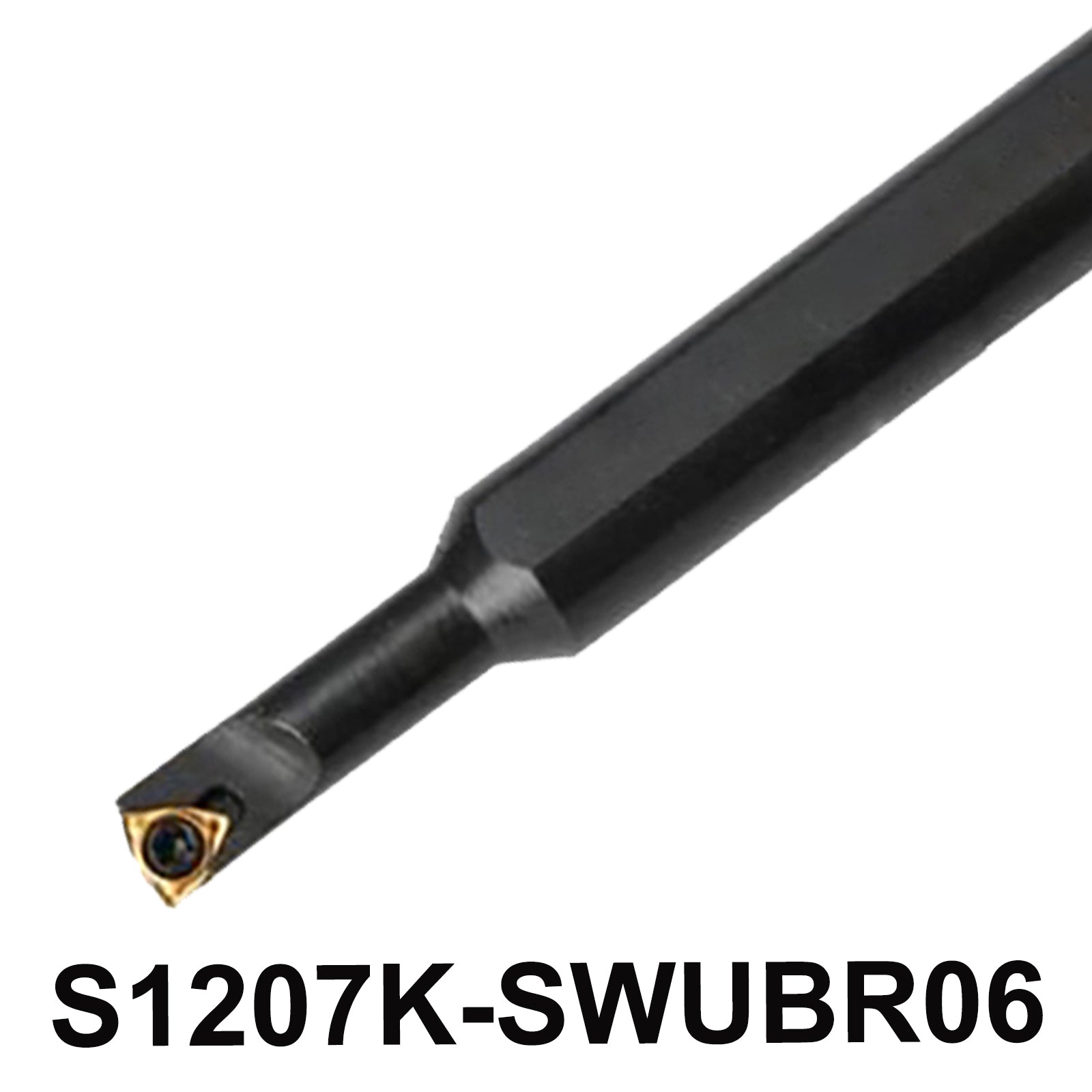

The S1207K-SWUBR06 Mechanical Lathe CNC Internal Boring Bar Tool Holder is engineered for precision and versatility, making it a must-have for any CNC machinist. With its durable alloy steel construction, it features a cutting edge angle of 93° and a 5° relief angle, optimizing cutting performance for smooth internal machining. The user-friendly S-type design allows for quick adjustments, while compatibility with WBGT carbide inserts broadens its applications in CNC lathes. The ergonomic dimensions ensure ease of use and enhanced control, positioning the S1207K-SWUBR06 as the ultimate tool for your machining needs.

• Dimensions and Specifications of S1207K-SWUBR06 Carbide Boring Bars

• Features and Specifications

  • Model: S1207K-SWUBR06
  • Package Includes: S1207K-SWUBR06 Tool Holder and compatible Screws, and Wrenches
  • 95° cutting edge angle and 7° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 12mm
  • Total Length: 125mm
  • Cutting Blade Length: 6mm
  • Screw Size: M2.2*5
  • Wrench: T6
  • Compatible Blades: WBGT060102

• 5-Point Description

1. Robust Alloy Steel Construction: Crafted from high-strength alloy steel, the S1207K-SWUBR06 ensures durability and reliability in demanding machining environments.

2. Precision Cutting Geometry: Featuring a 93° cutting edge angle and a 5° relief angle, this tool holder maximizes cutting efficiency and delivers smooth, accurate internal finishes.

3. Versatile S-Type Design: The S-type (screw-type) mechanism, with an M2.2*5 screw and T6 wrench, allows for easy adjustments, ensuring optimal blade positioning for every job.

4. Compatible with WBGT Inserts: Designed to work seamlessly with WBGT060102 carbide inserts, enhancing versatility and performance across various CNC applications.

5. Ergonomic Dimensions: With a 12mm handle diameter and a total length of 125mm, this tool holder provides superior control and stability for intricate turning tasks.
