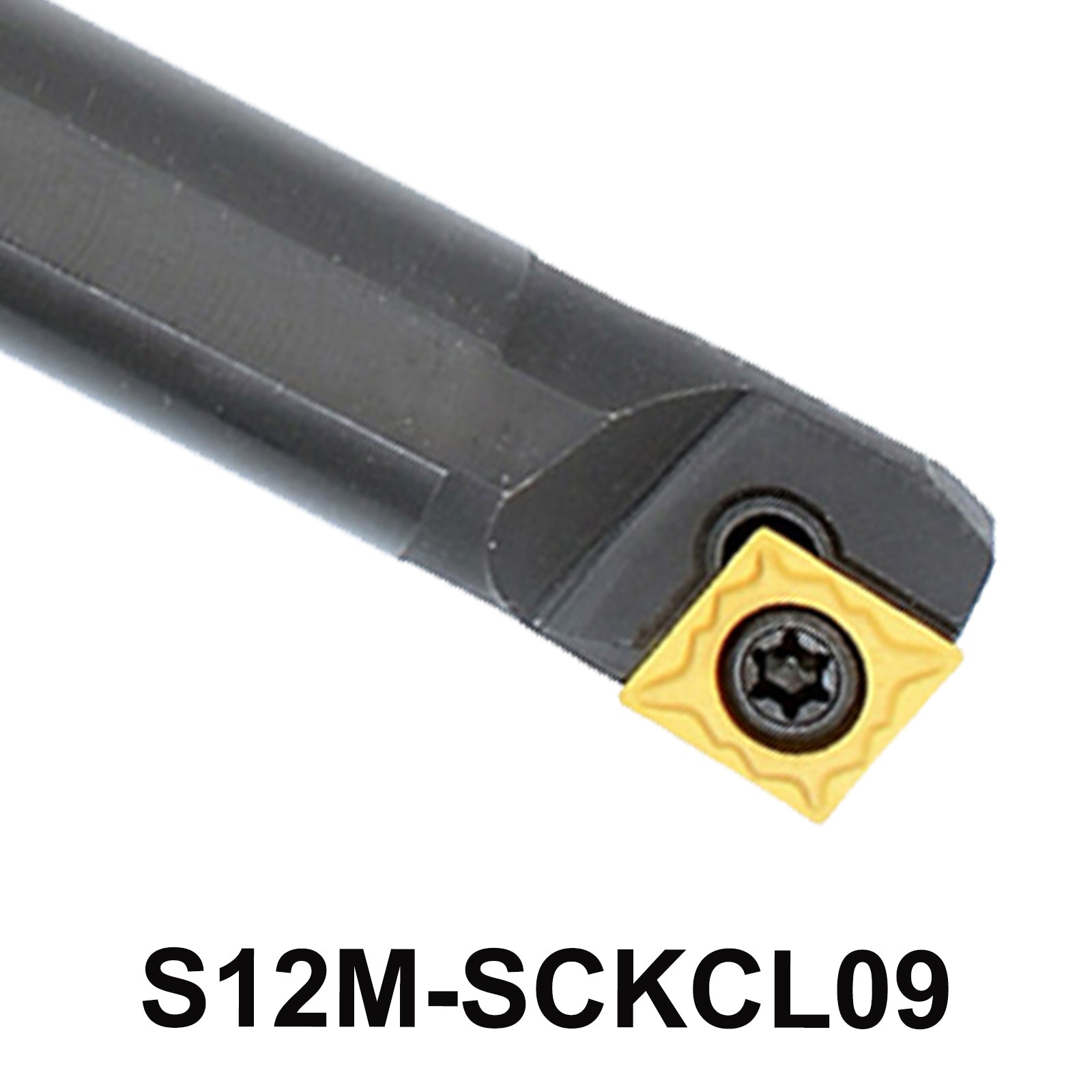

High-Precision CNC Boring Bar S12M-SCKCL09 - Internal Turning Tools Holder

Internal Turning Tools Holder | Alloy Steel | S-Type Model

Specifications and Dimensions

5-Point Description

1. Precision Machining Tool: The S12M-SCKCL09 CNC boring bar is crafted for precision internal turning tasks, ensuring high accuracy and performance in machining operations.

2. Durable Alloy Steel Construction: Made from robust alloy steel, this tool holder offers durability and longevity, making it suitable for continuous use in industrial settings.

3. Optimized Cutting Edge: Features a 75° cutting edge angle and a 7° relief angle, reducing cutting forces and enhancing efficiency during machining processes.

4. Versatile Blade Compatibility: Compatible with various CCMT blade types (CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5)2. allowing flexibility to handle different materials and machining requirements.

5. User-Friendly Design: Designed with a 12mm handle diameter, 150mm total length, and 9mm cutting blade length, equipped with M4*8 screw and T15 wrench for easy installation and adjustment.

Overview:

The S12M-SCKCL09 is a specialized CNC boring bar designed for precise internal turning tasks. It features a 75° cutting edge angle and a 7° relief angle, optimizing performance and reducing cutting forces. Crafted from durable alloy steel, this S-type model ensures robustness and longevity in machining operations.

Specifications and Dimensions:

• Tool Type: CNC Boring Bar, Right Tool Holder
• Material: Alloy Steel
• Model: S12M-SCKCL09
• Handle Diameter: 12mm
• Total Length: 150mm
• Cutting Blade Length: 9mm
• Screw: M4*8
• Wrench: T15
• Blade Compatibility: CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5 )2

Applications:

Ideal for precision CNC machining tasks such as internal turning, facing, and boring in various materials. Suitable for CNC lathes and machining centers.

Advantages:

1. Precision Cutting: 75° cutting edge angle ensures accuracy in machining operations.
2. Durable Construction: Made from alloy steel for reliability and extended tool life.
3. Versatile Blade Options: Supports a range of CCMT blade types for flexibility in machining tasks.
4. Efficient Design: 7° relief angle reduces cutting forces and enhances cutting performance.
5. User-Friendly: Includes M4*8 screw and T15 wrench for easy setup and adjustments.

Package Includes:

• S12M-SCKCL09 Tool Holder
• Compatible Screws and Wrenches

Conclusion:

The S12M-SCKCL09 CNC boring bar combines precision engineering with durability, making it an excellent choice for professional CNC machinists. Stay tuned for its launch on our independent website, where you can explore more detailed specifications and features.
