Overview

The S10K-STFCR09 internal boring bar tool holder combines rugged alloy steel construction with precision engineering, ideal for CNC machine tools and lathes. Featuring a 91° cutting edge angle and a 7° relief angle, this tool holder ensures accurate internal turning and long-lasting performance. With a 10mm diameter handle and a total length of 125mm, it accommodates various blade types for versatile applications.

Application

The S12M-STFCR09 tool holder is specifically designed for use in CNC machine tools and lathes. It is ideal for internal boring and turning tasks, providing precision and efficiency for complex machining operations.

Detail Page:

• Material: Alloy Steel
• Type: S-Type (Screw-type)
• Model:  S12M-STFCR09
• Total Length: 150mm
• Diameter Handle : 12mm
• 91° cutting edge angle and 7° relief angle.
• Cutting Blade Length: 9mm
• Included Accessories: M2.2*6 Screw, T6 Wrench
• Compatible Blades: TCMT090202 TCMT090204 TCMT090208 TCMT1.8(1.5)0 TCMT1.8(1.5)1 TCMT1.8(1.5)2


Package Includes:

• S10K-STFCR09 Tool Holder
• Compatible Screws, and Wrenches

Advantages

• High Precision: The 91° cutting edge angle and relief angle ensure high accuracy for internal machining tasks.
• Robust Construction: Made from alloy steel to withstand heavy use and provide long-term durability.
• Versatility: Supports various TCMT inserts, enhancing the tool's adaptability to different machining requirements.
• Compact Design: The handle diameter and length are optimized for control and maneuverability in confined spaces.
• User-Friendly: Designed for easy assembly and maintenance with included screws and wrench.

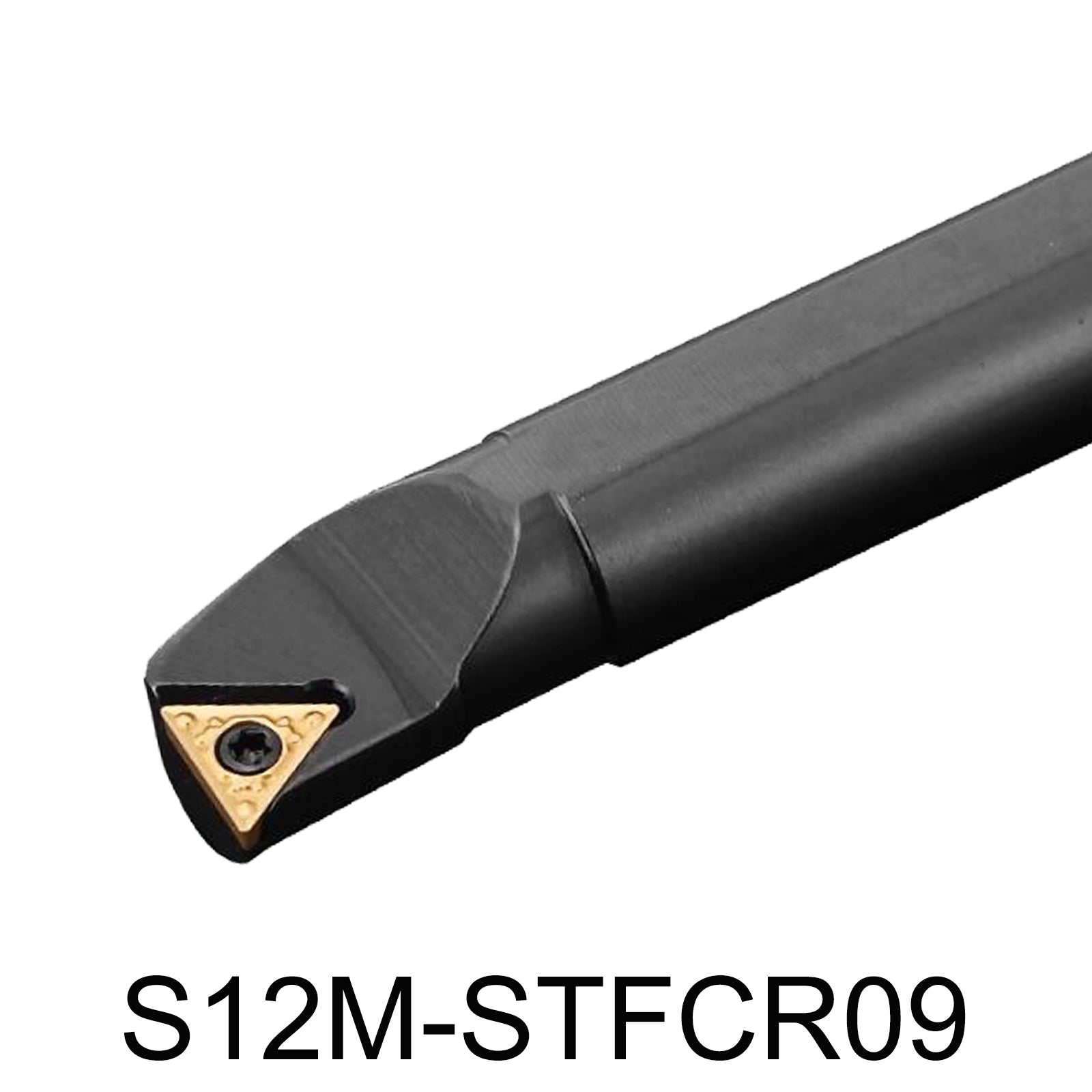

S12M-STFCR09 S12M STFCR09 CNC Internal Boring Bar Tool Holder – High Precision, Alloy Steel, Versatile Design

• Engineered for Superior Internal Machining

• High-Quality Alloy Steel Construction

• Versatile and Compact Design for CNC Applications

• Detailed Specifications and Features

• Compatible Blades for Maximum Flexibility

• User-Friendly Design for Efficient Operation

5-Point Description

1. Precision Machining: Features a 91° cutting edge angle and 7° relief angle for accurate internal boring and turning.
2. Durable Alloy Steel: Constructed from high-strength alloy steel for long-lasting durability and reliability.
3. Compact and Versatile: With a 12mm handle diameter and 150mm total length, it offers excellent control and flexibility in various CNC applications.
4. Blade Compatibility: Compatible with a range of TCMT inserts, allowing for adaptability to different machining tasks.
5. Effortless Maintenance: Includes an M2.2*6 screw and T6 wrench for easy assembly and maintenance.
