Overview:

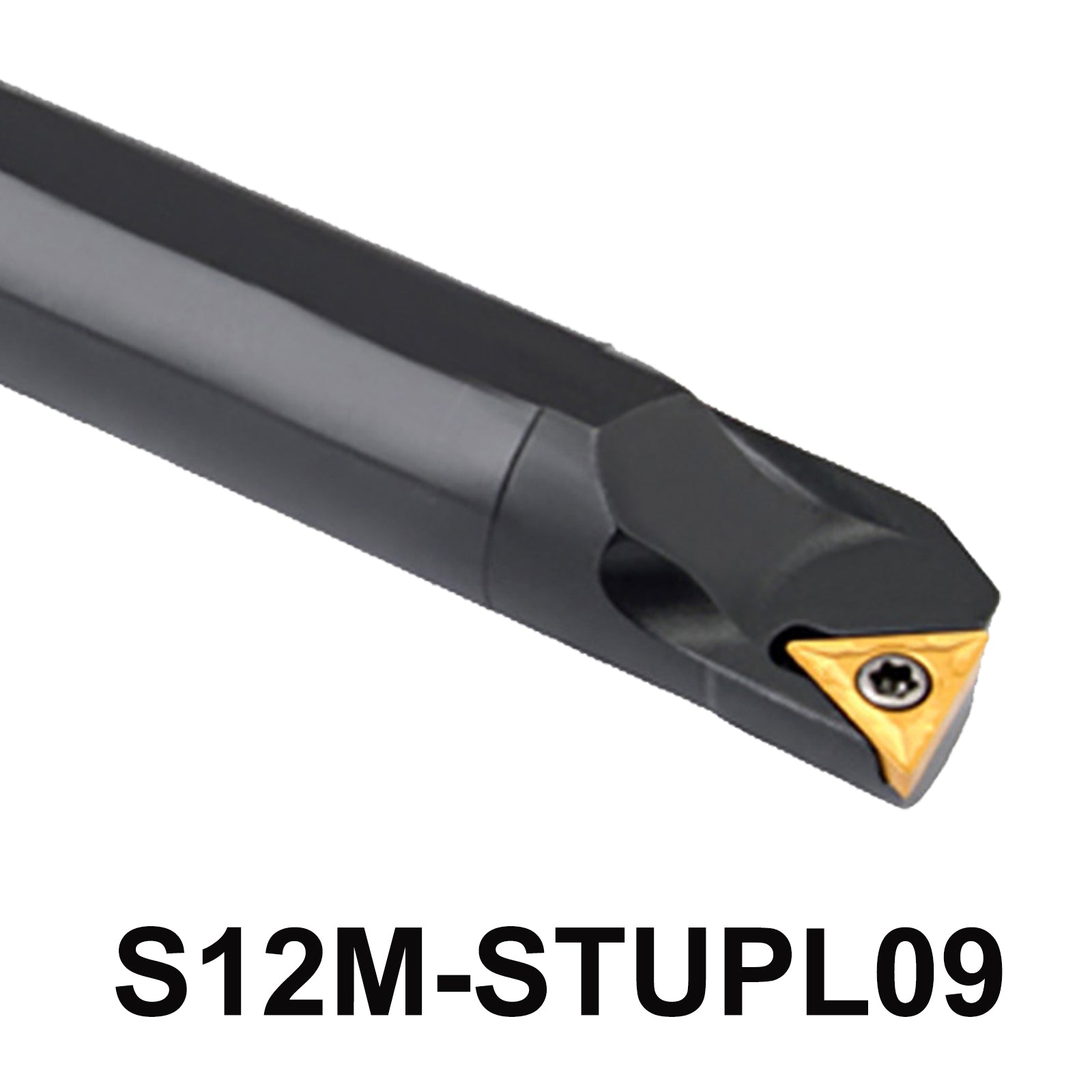

The S12M-STUPL09 Mechanical Lathe CNC Internal Boring Bar Tool Holder is crafted for precision and durability, featuring a 95° cutting edge angle and an 11° relief angle. Constructed from high-grade alloy steel, this tool holder ensures exceptional performance for internal turning tasks. With a handle diameter of 12mm and a total length of 150mm, it accommodates various cutting blades including TPMT090202 and TPMT090204.

Features and Specifications

• Model: S12M-STUPL09
• 95° cutting edge angle and 11° relief angle.
• Material:  alloy steel
• Type: S-Type (Screw-type)
• Handle Diameter: 12mm
• Total Length: 150mm
• Cutting Blade Length: 9mm
• Screw Size: M2.2*6
• Wrench: T6
• Compatible Blades: TPMT090202 TPMT090204

Package Includes:

• S12M-STUPL09 Tool Holder
• Compatible Screws, and Wrenches

Applications:

• Internal Boring: Perfect for precision boring tasks in CNC machine tools.
• Internal Turning: Suitable for detailed internal turning on CNC lathes.
• Boring Bar Set: Essential for a complete boring bar setup in various machining operations.

S12M-STUPL09 Mechanical Lathe CNC Internal Boring Bar Tool Holder – Precision 95° Cutting Angle with Alloy Steel Strength

• Precision Engineering with the S12M-STUPL09 Internal Boring Bar Tool Holder

• Durable Alloy Steel Construction for Enhanced Longevity

• Versatile Compatibility with TPMT090202 and TPMT090204 Blades

• 95° Cutting Edge Angle: Ensures high-accuracy internal machining.

• 11° Relief Angle: Reduces cutting resistance and enhances tool life.

• S-Type Screw Mechanism: Provides secure blade attachment for reliable results.

5-Point Description:

1. 95° Cutting Edge Angle: Provides high precision for internal machining tasks.
2. 11° Relief Angle: Minimizes resistance and extends tool longevity.
3. Alloy Steel Construction: Durable material ensures reliable and long-lasting performance.
4. Versatile Blade Compatibility: Accommodates TPMT090202 and TPMT090204 blades for various applications.
5. Secure S-Type Mechanism: Guarantees stable blade attachment and consistent cutting results.
