Overview

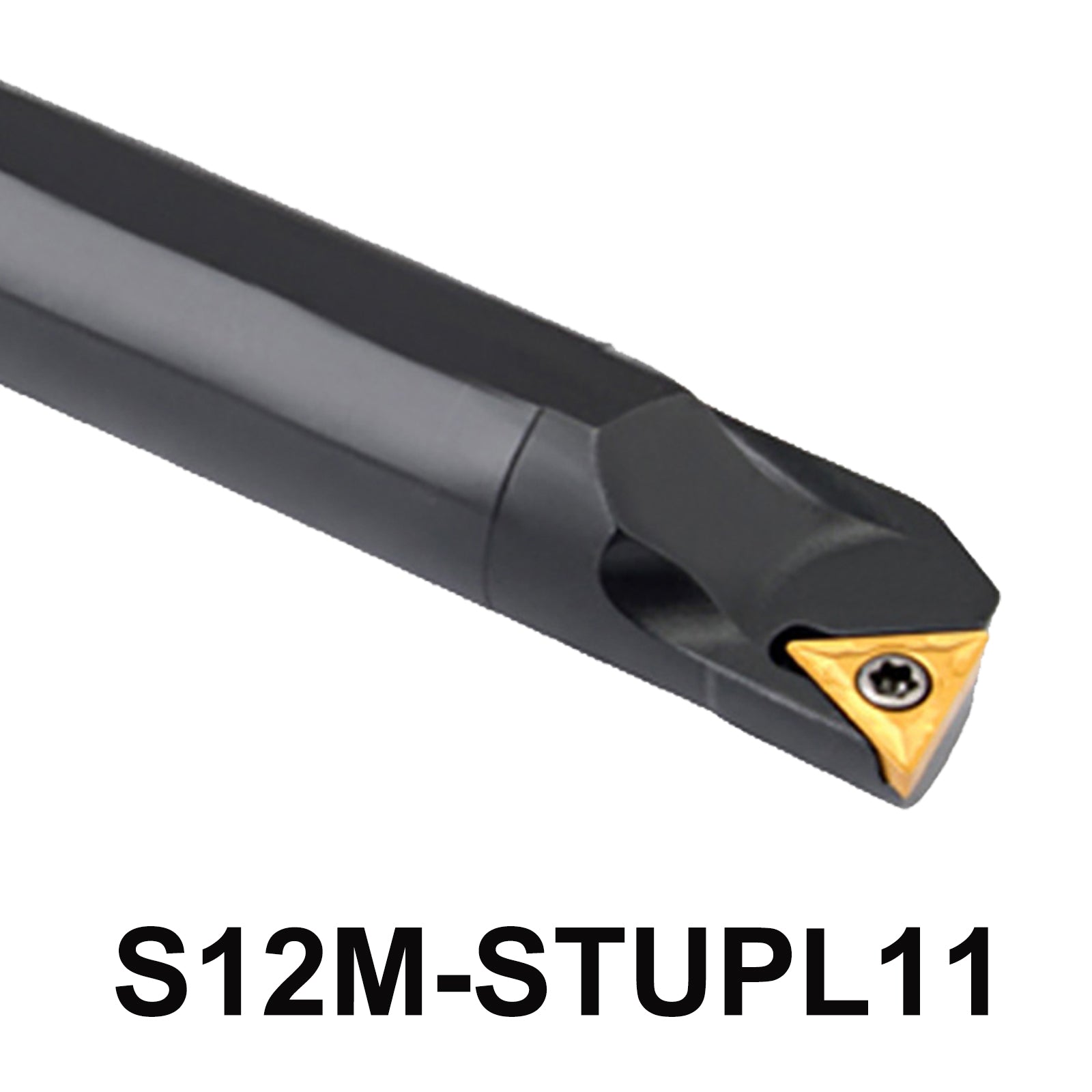

The S12M-STUPL11 CNC internal boring bar tool holder is designed for precision internal machining with a 95° cutting edge angle and an 11° blade relief. Constructed from robust alloy steel, it ensures durability and high performance under demanding conditions. The tool holder features an S-type screw mechanism for secure blade attachment and is compatible with TPMT110302 and TPMT110304 blades. With a 150mm total length and a 12mm handle diameter, it offers a balance of compactness and ergonomic handling, making it an ideal choice for CNC machines and lathes.

Features and Specifications

• Model: S12M-STUPL11
• 95° cutting edge angle and 11° relief angle.
• Material:  alloy steel
• Type: S-Type (Screw-type)
• Handle Diameter: 12mm
• Total Length: 150mm
• Cutting Blade Length: 11mm
• Screw Size: M3*8
• Wrench: T8
• Compatible Blades: TPMT110302 TPMT110304

Package Includes:

• S12M-STUPL11 Tool Holder
• Compatible Screws, and Wrenches

Application: The S12M-STUPL11 is ideal for use in CNC machines and lathes, specifically designed for internal boring and turning applications. Its compatibility with TPMT110302 and TPMT110304 blades makes it versatile for various machining needs.

BEYOND S12M-STUPL11 Internal Turning Tools Holder S12M STUPL11 STUPL 11 Boring Bar CNC Lathe Cutter Machine STUPL Carbide Inserts TPMT1103 TPMT110304

• Exceptional Internal Boring Accuracy with 95° Cutting Edge

• High-Durability Alloy Steel Construction for Long-Lasting Performance

• Versatile Blade Compatibility with TPMT110302 and TPMT110304

• Compact and Ergonomic Design for Optimal Handling

• S-Type Screw Mechanism for Secure Blade Fit

• Efficient and Reliable Tool for CNC Machines and Lathes

5-Point Description:

1. 95° Cutting Edge Angle: Ensures high-precision internal boring and turning.
2. 11° Blade Relief Angle: Reduces tool wear and enhances cutting efficiency.
3. Durable Alloy Steel Construction: Provides longevity and resilience for demanding tasks.
4. Secure Blade Fit: S-type screw mechanism guarantees stable blade installation.
5. Compact Design: 150mm length and 12mm handle diameter for comfortable and precise handling.
