Overview

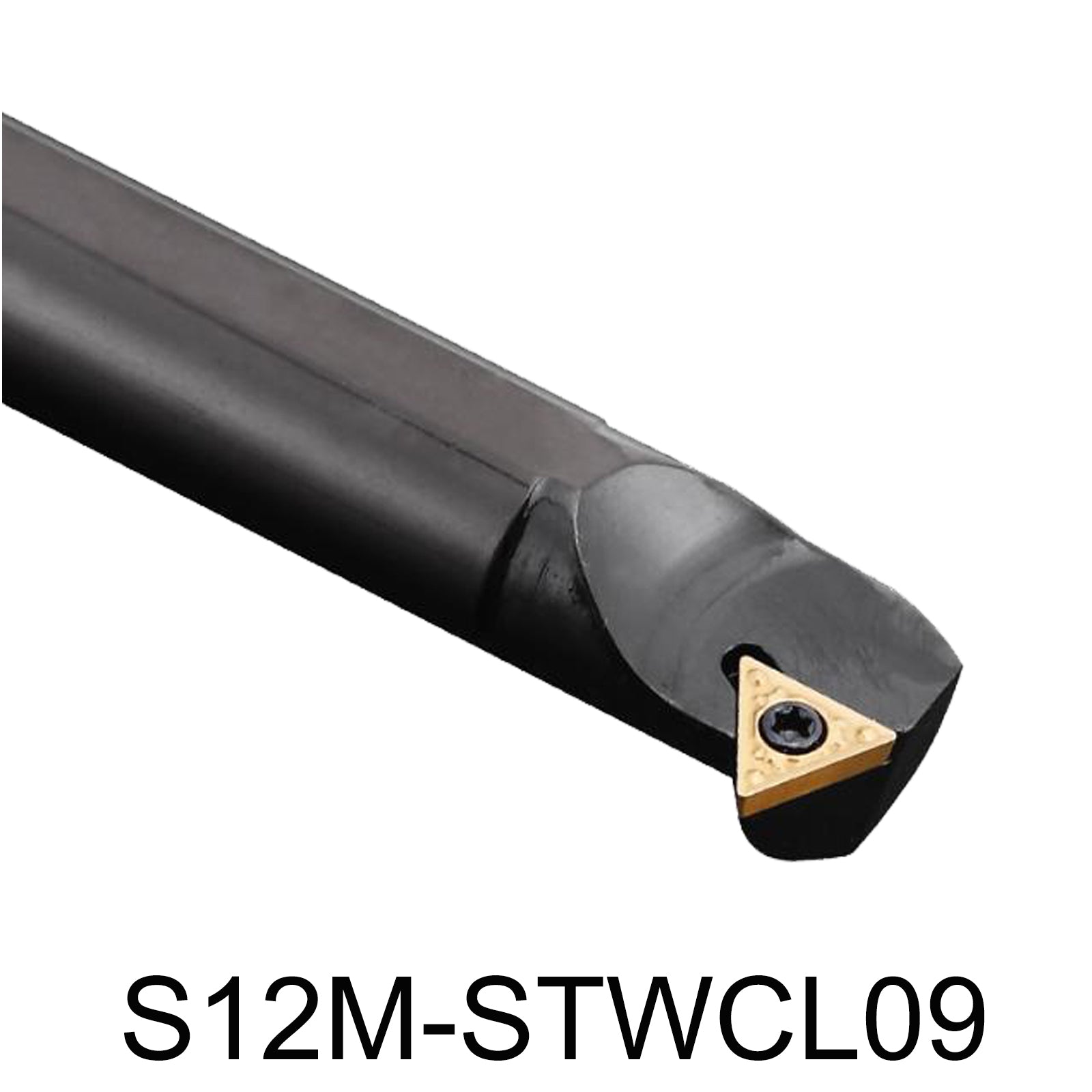

The S12M-STWCL09 CNC Internal Boring Bar Tool Holder is engineered for precision and durability in internal machining tasks. Featuring a 60° cutting edge angle and a 7° blade relief, this tool holder ensures smooth and accurate internal turning operations. Constructed from robust alloy steel, it boasts a compact design with a 12mm handle diameter and a 150mm total length. It is designed to accommodate TCMT blades for various cutting needs. The tool holder comes with M2.5*6 screws and a T8 wrench for convenient adjustments.

Features and Specifications

• Model:  S12M-STWCL09
• 95° cutting edge angle and 7° relief angle.
• Material:  alloy steel
• Type: S-Type (Screw-type)
• Handle Diameter: 12mm
• Total Length: 150mm
• Cutting Blade Length: 9mm
• Screw Size: M2.5*6
• Wrench: T8
• Compatible Blades: TCMT090202 TCMT090204 TCMT090208 TCMT1.8(1.5)0 TCMT1.8(1.5)1 TCMT1.8(1.5)2

Package Includes:

• S12M-STWCL09  Tool Holder
• Compatible Screws, and Wrenches

5-Point Description:

1. Precision Cutting: 60° cutting edge angle designed for accurate internal boring and turning.
2. Durable Construction: Made from high-quality alloy steel for extended tool life and performance.
3. Versatile Blade Compatibility: Supports various TCMT blades for a wide range of applications.
4. Ergonomic Design: 12mm handle diameter for comfortable handling and precise control.
5. User-Friendly Maintenance: Comes with M2.5*6 screws and T8 wrench for easy adjustments and maintenance.

Applications:

• CNC Internal Boring and Turning
• Suitable for Multiple TCMT Blade Types
• Ideal for Use in CNC Lathes and Boring Bar Setups

BEYOND S12M-STWCL09  Internal Turning Tools Holder S12M STWCL09 STWCL 09 Boring Bar CNC Lathe Cutter Machine  Carbide Inserts TCMT0902

• 60° Cutting Edge Angle for Accurate Internal Boring

• Durable Alloy Steel Construction for Long-Lasting Performance

• Compact Design with Versatile Blade Compatibility

• 7° Blade Relief for Smooth Cutting Operations

• 12mm Handle Diameter for Optimal Control and Ergonomics

• Includes M2.5*6 Screws and T8 Wrench for Easy Maintenance
