• S12M-SWLCR04 Information Overview

• Overview

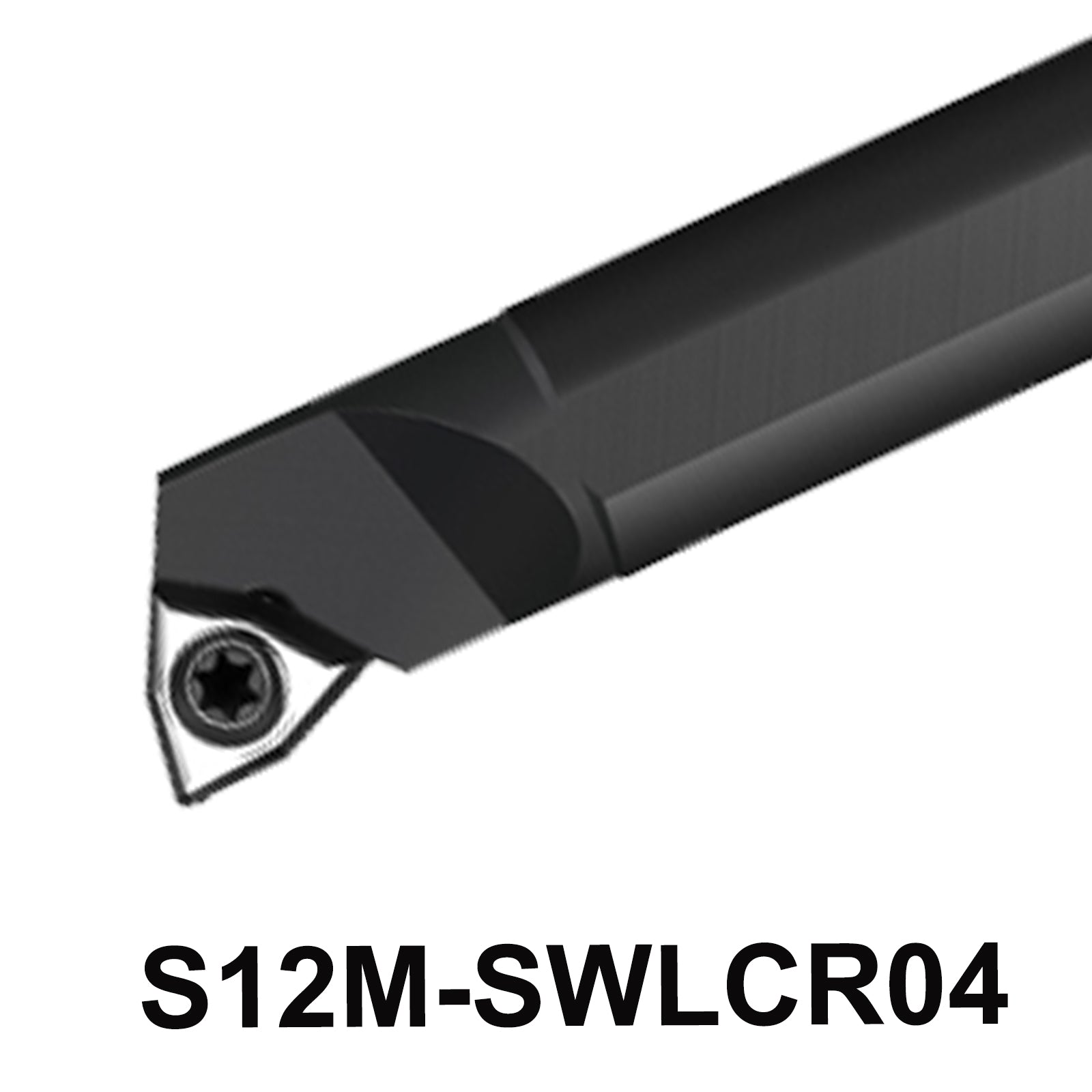

Introducing the S12M-SWLCR04 Mechanical Lathe CNC Internal Boring Bar Tool Holder, expertly engineered for precision and efficiency in various CNC machining applications. Constructed from high-quality alloy steel, this tool holder is designed to provide exceptional performance while ensuring durability and reliability.

• Dimensions and Specifications of S12M-SWLCR04 Carbide Boring Bars

• Features and Specifications

  • Model: S12M-SWLCR04
  • Package Includes: S12M-SWLCR04 Tool Holder and compatible Screws, and Wrenches
  • 95° cutting edge angle and 7° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 12mm
  • Total Length: 150mm
  • Cutting Blade Length: 4mm
  • Screw Size: M3*6
  • Wrench: T10
  • Compatible Blades: WCMX040204  WCMX040208

• 5-Point Description

1. High Precision Cutting: Features a cutting edge angle of 95° for enhanced performance.
2. Durable Construction: Made from robust alloy steel to withstand rigorous machining environments.
3. Optimal Size: 12mm handle diameter and 150mm total length for perfect balance and control.
4. Versatile Compatibility: Compatible with WCMX040204 and WCMX040208 carbide inserts for a variety of applications.
5. Easy to Use: S-type screw design with included T10 wrench simplifies adjustments and maintenance.
