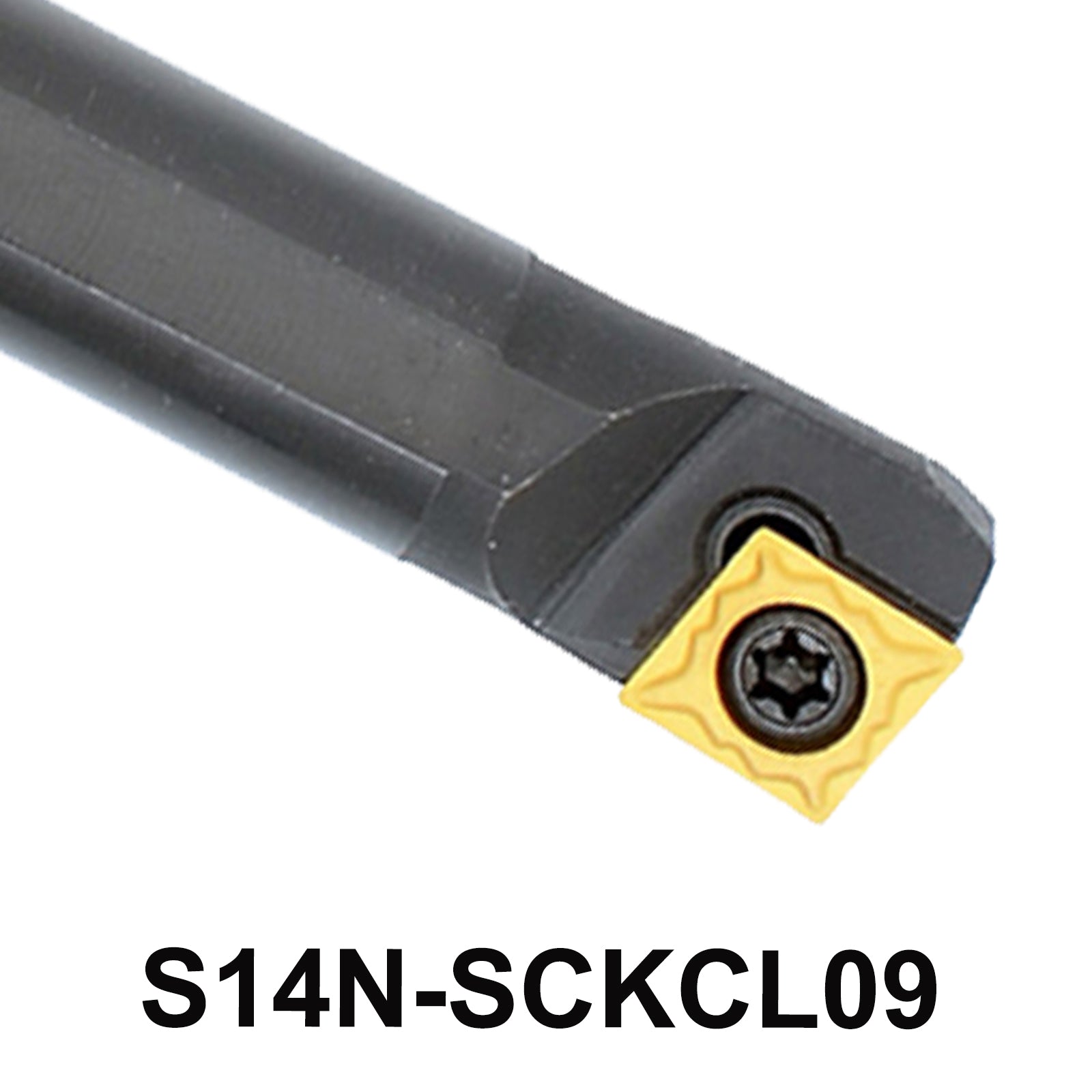

S14N-SCKCL09 CNC Boring Bar Tool Holder for Precision Internal Turning

• High Precision Tool Holder for CNC Lathes

• Compatible with Standard CCMT Inserts

• Made of alloy steel, highly durable

• Specifications and Features

• Advantages and Applications

• Why Choose S14N-SCKCL09？

5-Point Product Description:

• Advanced Design: The S14N-SCKCL09 features a 75° cutting edge angle and 7° relief angle, crafted from durable alloy steel, ideal for precise internal turning tasks.
• Dimensions: Designed with a 14mm handle diameter and a total length of 160mm, including a 9mm cutting blade. It comes with a M4*8 screw and T15 wrench for secure assembly.
• Material and Construction: Made from high-quality alloy steel, the S14N-SCKCL09 boasts an S-type model for reliable performance in CNC machining environments.
• Applications: Suitable for CNC machine tools and lathes, specifically tailored for internal turning operations with efficiency and accuracy.
• Advantages:Optimized Cutting Angles,Durable Build,Secure Fastening,Versatile Blade Options,Efficient Operation

Overview:

The S14N-SCKCL09 is a precision CNC boring bar holder designed for internal turning operations in CNC lathes. It features a 75° cutting edge angle and a 7° relief angle on the blade, ensuring efficient chip control and high surface finish quality. Crafted from durable alloy steel, this S-type tool holder offers reliability and longevity in machining applications.

Application:

The S14N-SCKCL09 CNC boring bar  tool holder is ideal for:

• CNC machine tools
• CNC lathes
• Internal turning operations

Specifications and Dimensions:

• Tool Type: CNC Boring Bar, Left Tool Holder
• Material: Alloy Steel
• Model: S14N-SCKCL09
• Handle Diameter: 14mm
• Total Length: 160mm
• Cutting Blade Length: 9mm
• Screw: M4*8
• Wrench: T15
• Blade Compatibility: CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5 )2

Advantages:

• Precision Machining: 75° cutting edge angle and 7° relief angle for optimal cutting performance.
• Durable Construction: Made from alloy steel for durability and reliability.
• Secure Assembly: Includes necessary screw and wrench for stable tool installation.
• Versatile Blade Compatibility: Supports a range of CCMT inserts for various machining requirements.
• Enhanced Efficiency: Designed to improve machining efficiency and quality in internal turning applications.

Why Choose S14N-SCKCL09？

• Designed with a 75° cutting edge angle and a 7° relief angle,  achieving high accuracy and quality in machining tasks.
• Constructed from high-quality alloy steel, this tool holder is durable and reliable, capable of enduring the demands of CNC machining environments.
• Compatible with a range of CCMT inserts, it supports various machining needs and materials, enhancing flexibility in application.
• Featuring a 14mm handle diameter and a total length of 160mm, with a 9mm cutting blade length,  is designed for easy installation and adjustment

Package Includes:

• S14N-SCKCL09 Tool Holder
• Compatible Screws and Wrenches

In summary, the S14N-SCKCL09 stands out for its precision, durability, versatility, ease of use, and optimized performance, making it an excellent choice for professionals seeking reliable tool holders for CNC machining applications.
