Applications:

• Ideal for CNC machine tools and lathes
• Suitable for internal turning operations
• Used in various industries including automotive and aerospace

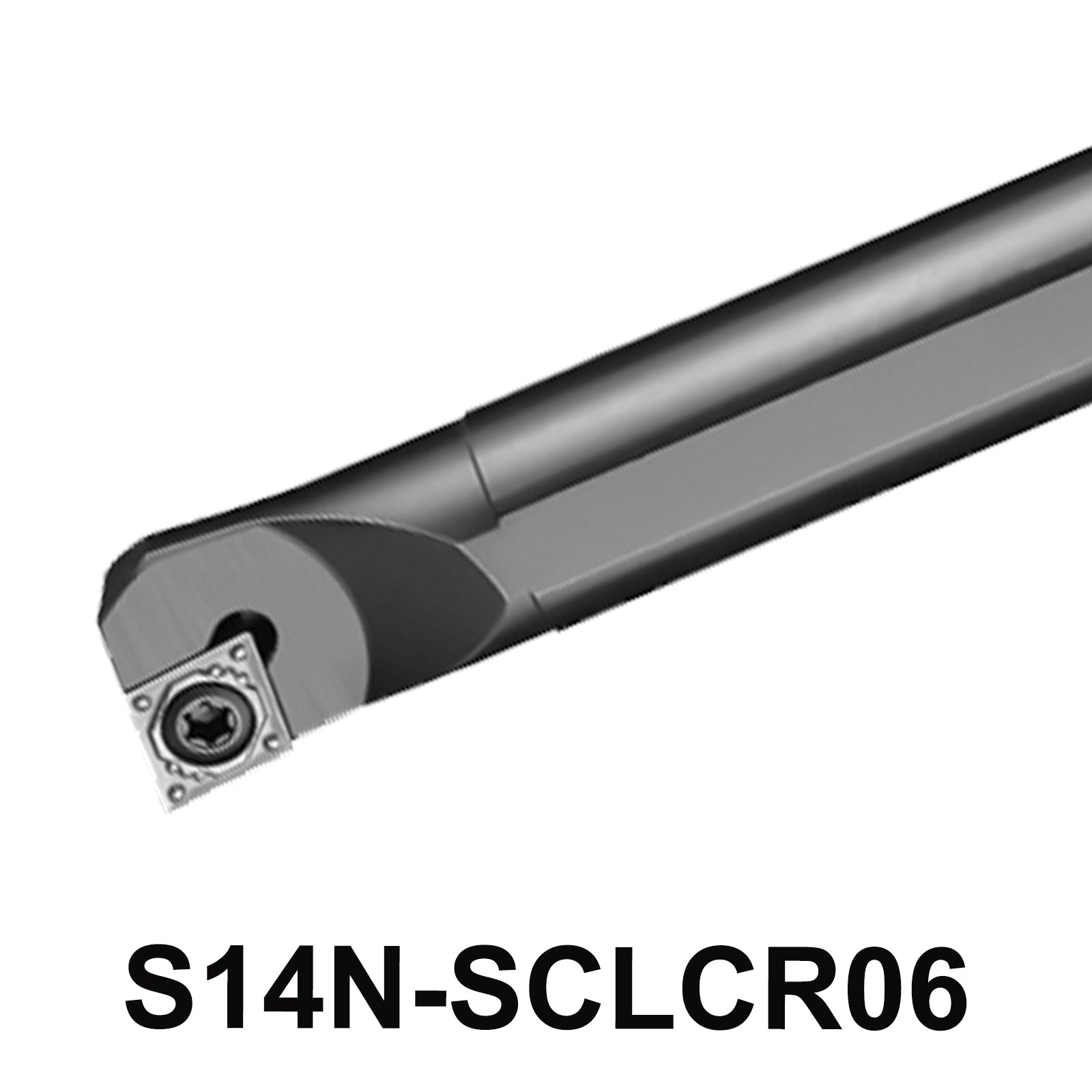

S14N-SCLCR06 CNC Internal Boring Bar Tool Holder: Precision Tool for CNC Machines S14N SCLCR06

• Application of S14N-SCLCR06 Tool Holder

• Advantages of Using S14N-SCLCR06 in CNC Machining

• Reasons to Choose S14N-SCLCR06 for Internal Turning Operations

• Durable and Reliable Screw-Type System

• Compatible with Standard CCMT Inserts

• Robust Construction with 6mm Shank

5-Point Description:

1. Precision Internal Turning: Engineered for precise internal turning operations on CNC machine tools and lathes, ensuring high accuracy and quality results.

2. Durable Alloy Steel Construction: Made from robust alloy steel, the S14N-SCLCR06 tool holder offers excellent durability and reliability in demanding machining environments.

3. Optimized Cutting Edge: Features a 95° cutting edge angle with a 7° relief angle on the blade, enhancing cutting efficiency and reducing vibration for smoother operation.

4. Versatile Compatibility: Compatible with a variety of carbide inserts including CCMT060202, CCMT060204, and CCMT060208, providing flexibility for different machining applications.

5. Easy Installation and Setup: Includes an M2.5*6 screw and T8 wrench for straightforward installation, ensuring quick setup and minimal downtime during tool changes.

Overview:

The S14N-SCLCR06 CNC Internal Boring Bar Tool Holder is meticulously crafted for internal turning tasks on CNC machines. It features a 95° cutting edge angle and a 7° relief angle on the blade, ensuring efficient chip removal and precise cutting performance. Made from high-quality alloy steel, this tool holder offers durability and reliability in demanding machining environments.

Specifications:

• Model: S14N-SCLCR06
• Material: Alloy Steel
• Type: S-Type (Screw-type)
• Diameter of Handle: 14mm
• Total Length: 160mm
• Length of Cutting Blade: 6mm
• Screw: M2.5*6
• Wrench: T8
• Compatible Blade Inserts: CCMT060202, CCMT060204, CCMT060208, CCMT2(1.5)0, CCMT(1.5)1, CCMT(1.5)2

Advantages:

1. Precision Machining: 95° cutting edge angle and 7° relief angle ensure precise cutting and smooth surface finish.
2. Durability: Made from high-quality alloy steel, ensuring longevity and reliability in industrial applications.
3. Versatility: Compatible with a range of CCMT carbide inserts, providing flexibility in machining operations.
4. Ease of Use: Includes M2.5*6 screw and T8 wrench for easy installation and adjustment on CNC machines.
5. Wide Application: Suitable for a variety of materials and machining tasks, enhancing operational efficiency.

Reasons to Choose:

• Ensures precise internal turning operations
• Durable construction for long-term use
• Versatile compatibility with multiple carbide insert types
• Facilitates easy setup and adjustment on CNC machines
• Enhances productivity and machining accuracy
