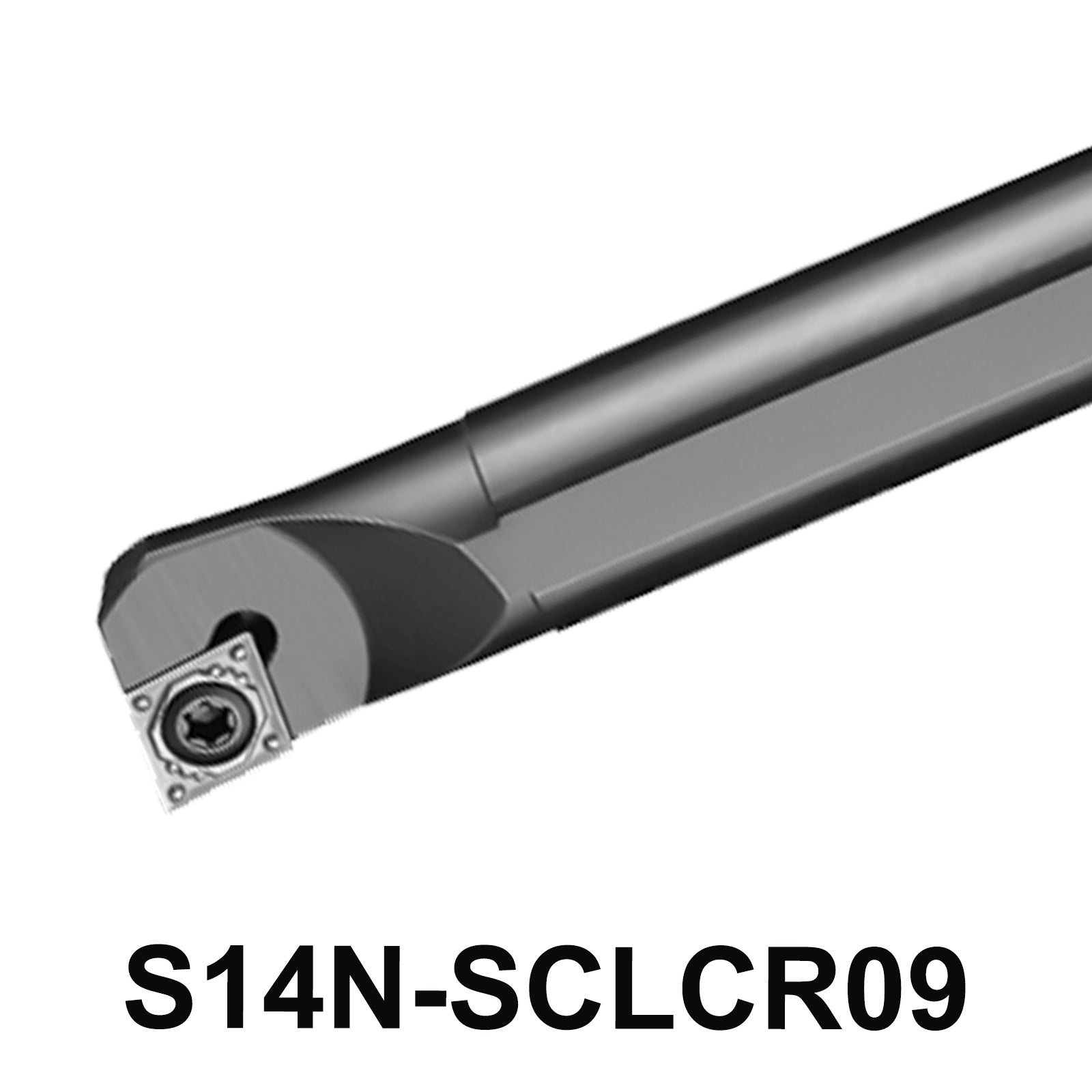

S14N-SCLCR09 Internal Turning Tools Holder S14N SCLCR09  Boring Bar CNC Lathe Cutter Machine

• High quality alloy steel, strong wear resistance

• Precise 95° cutting edge angle

• Compatible with a range of CCMT inserts

• Features and Specifications

• Application and Advantages

• Description and choose reason

5-Point Description

1. High-Quality Alloy Steel Construction: The S14N-SCLCR09 tool holder is manufactured from premium alloy steel, providing exceptional strength and resistance to wear.
2. Precise Cutting Edge Angle: With a cutting edge angle of 95°, this tool holder allows for accurate and efficient internal turning.
3. Effective Relief Angle: The tool features a 7° relief angle, which enhances the cutting efficiency by reducing friction and heat buildup, thus extending the life of both the tool holder and the cutting blades.
4. Versatile Blade Compatibility: Designed to accommodate various blade types including CCMT09T302, CCMT09T304, and CCMT09T308.
5. Convenient Dimensions and Accessories: The tool holder has a 14mm diameter handle, a total length of 160mm, and a cutting blade length of 9mm. It includes an M4*8 screw and a T15 wrench for easy installation and adjustment, making it user-friendly and versatile for different CNC applications.

Overview

Introducing the S14N-SCLCR09 CNC Internal Boring Bar Tool Holder—an essential component for precision machining. Crafted from high-grade alloy steel, this tool holder features a cutting edge angle of 95° and a relief angle of 7°, ensuring optimal performance in CNC lathes and machine tools. With a 14mm handle diameter and a total length of 160mm, it supports a wide range of cutting blades including CCMT09T302, CCMT09T304, and others. Ideal for internal turning, it guarantees accuracy and durability in your operations.

Key Features:

• Material: Alloy Steel
• Cutting Edge Angle: 95°
• Relief Angle of Blade: 7°
• Diameter of Handle: 14mm
• Total Length: 160mm
• Length of Cutting Blade: 9mm
• Screw: M4*8
• Wrench: T15
• Blade Compatibility: CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5)2

Package Includes:

• S14N-SCLCR09 Tool Holder
• Compatible Screws and Wrenches

Application:

• CNC Machine Tools: Perfect for use in CNC lathes and boring bars.
• Internal Turning: Ideal for precise internal machining operations.

Advantages:

• Precision: High cutting edge and relief angles ensure accuracy.
• Durability: Alloy steel construction offers long-lasting performance.
• Versatility: Compatible with multiple blade types for varied applications.

Why Choose S14N-SCLCR09:

• Quality Material: Alloy steel ensures robustness.
• Optimal Angles: Designed for precision in internal boring.
• Compatibility: Works with a range of blades for flexibility in operations.
