S16Q-MTUNR16 CNC Internal Boring Bar Tool Holder 16*180mm Alloy Steel Compatible with TNMG Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S16Q-MTUNR16 Internal Boring Bar Tool Holder | Alloy Steel CNC Lathe Cutter
-
High Precision Tool Holder for CNC Lathes
-
Durable and Reliable Multi-Lock System
-
Compatible with Standard TNMG Inserts
-
95° Cutting Edge Angle for Precision Machining
-
High-quality materials and precision construction
-
Ideal for Various Machining Operations
Overview:

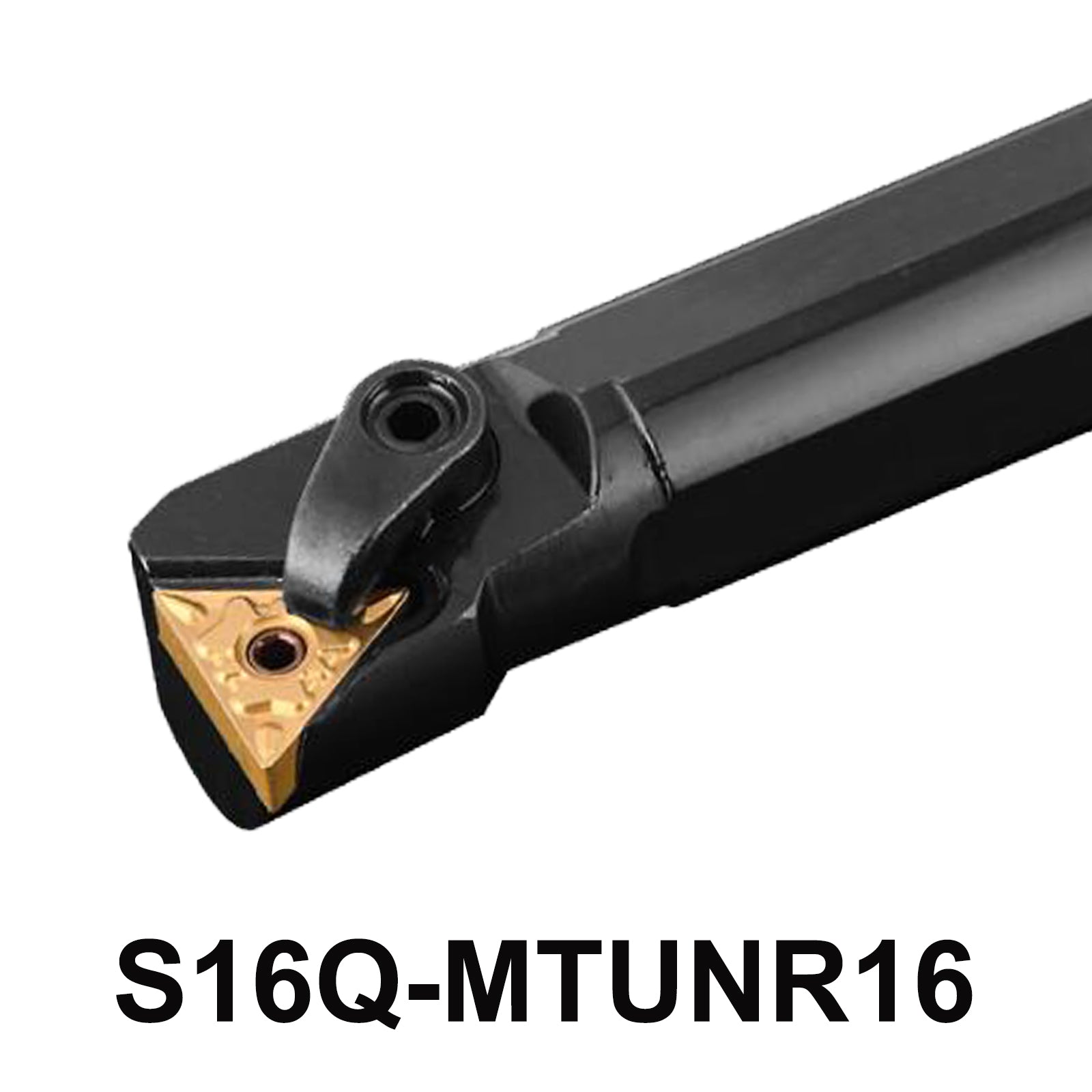

The S16Q-MTUNR16 is a precision CNC internal boring bar designed for efficient machining operations. With a 95° cutting edge angle and made from robust alloy steel featuring an M-type multi-lock system, this tool holder ensures stability, durability, and optimal performance in CNC machine tools and lathes.
Specifications and Dimensions:
- Tool Holder Type: Right-hand tool holder
- Tool Cutting Edge Angle: 95°
- Relief Angle of Blade: 0°
- Internal Turning Tools Holder Material: Alloy steel
- Model: S16Q-MTUNR16
- Diameter of Handle: 16mm
- Total Length: 180mm
- Length of Cutting Blade: 16mm
- Included Accessories: Pin CTM511, Clamp HL1810, Screw ML0620, Wrenches L2.0, L3.0
- Compatible Blade Inserts (Blade Types): TNMG160402, TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333
5-Point Description:
- Precision Machining: Designed for precise internal turning operations with a 95° cutting edge angle for effective chip control and surface finish.
- Durability: Made from high-quality alloy steel, ensuring longevity and resistance to wear in demanding CNC machining environments.
- Stability: Features an M-type multi-lock system that enhances stability and minimizes vibration during machining processes.
- Versatility: Suitable for a wide range of applications including facing, profiling, and chamfering in CNC lathes and machine tools.
- Complete Set: Comes complete with essential accessories such as pins, clamps, screws, and wrenches, facilitating quick setup and operational efficiency.
Applications:
- CNC Machining: Ideal for CNC machine tools and lathes, specifically designed for internal turning operations.
- Precision Engineering: Used for accurate machining of internal features such as bores, recesses, and contours.
- Metalworking: Suitable for various metals and alloys, providing efficient chip control and surface finish in machining processes.
- Tooling Operations: Used in tool rooms and manufacturing environments for consistent and reliable performance.
Advantages:
- High Precision: Features a 95° cutting edge angle for precise cutting and shaping of internal surfaces.
- Durability: Made from robust alloy steel, ensuring longevity and resistance to wear and tear.
- Stability: Equipped with an M-type multi-lock system that enhances stability and reduces vibrations during machining.
- Versatility: Compatible with a range of TNMG series blade inserts, allowing flexibility in machining various materials and profiles.
- Ease of Use: Includes essential accessories like pins, clamps, screws, and wrenches, facilitating easy setup and operation.
Package Includes:
- S16Q-MTUNR16 Tool Holder
- Compatible Clamps, Pins, Screws, and Wrenches
