Internal Turning Tools Holder with M-Type Multi-Lock System

Alloy Steel, 16mm Diameter, 180mm Length, TNMG Carbide Inserts

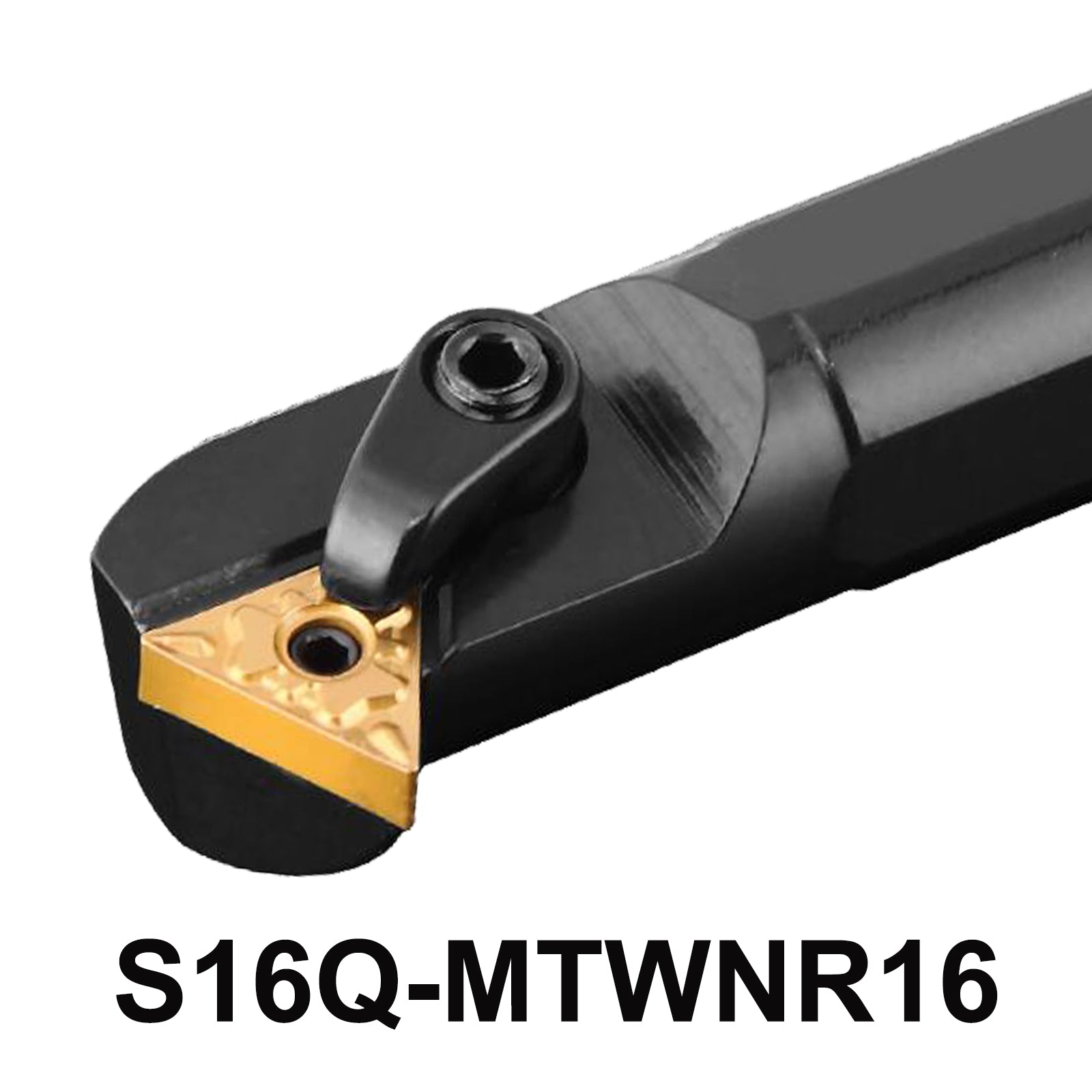

S16Q-MTWNR16 Boring Bar Right Tool Holder | Internal Turning Tools

Overview:

The S16Q-MTWNR16 is a specialized boring bar right tool holder designed for precision machining tasks. With a tool cutting edge angle of 60° and zero relief angle of the blade, it excels in internal turning operations. Crafted from high-quality alloy steel, this tool holder features an M-type multi-lock system for enhanced stability during machining processes.

Specifications and Dimensions:

• Material: Alloy Steel
• Model: S16Q-MTWNR16
• Handle Diameter: 16mm
• Total Length: 180mm
• Cutting Blade Length: 16mm
• Accessories: Pin: CTM511, Clamp: HL1810, Screw: ML0620, Wrench: L2.0, L3.0
• Blade Compatibility: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333

5-Point Description for S16Q-MTWNR16:

1. Precision Tool Holder: Designed for accuracy in internal turning applications with a 60° cutting edge angle and zero relief angle of the blade.
2. Durable Alloy Steel: Crafted from robust alloy steel for longevity and reliability in machining environments.
3. M-Type Multi-Lock System: Ensures secure clamping and stability during CNC machining operations.
4. Versatile Compatibility: Compatible with a range of TNMG carbide inserts for various machining needs (TNMG160404, TNMG160408, etc.).

Advantages:

1. Precision Machining: Designed with a 60° cutting edge angle and zero relief angle, ensuring precise cuts and excellent surface finish in internal turning operations.

2. High-Quality Material: Made from durable alloy steel, providing strength, reliability, and longevity in machining applications.

3. Secure Clamping: Features an M-type multi-lock system that enhances stability and reduces vibration during CNC machining processes, thereby improving machining accuracy.

4. Versatile Compatibility: Compatible with a variety of TNMG carbide inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), offering flexibility to adapt to different machining needs.

5. Efficient Performance: Enables efficient chip evacuation and heat dissipation, contributing to extended tool life and reduced downtime.

Applications:

• CNC Machine Tools: Suitable for use in CNC lathes and machining centers where precise internal turning operations are required.
• Boring Operations: Ideal for boring bars used in creating internal cylindrical surfaces or enlarging existing holes with high accuracy.

Why Choose S16Q-MTWNR16：

• The 60° cutting edge angle and zero relief angle design ensure precise cutting and superior surface finishes.
• Constructed from robust alloy steel, it offers durability and reliability in demanding machining environments.
• Compatible with a wide range of TNMG carbide inserts, providing flexibility to handle various materials and machining conditions.
• The M-type multi-lock system enhances stability , reducing tool vibration and improving machining efficiency.
