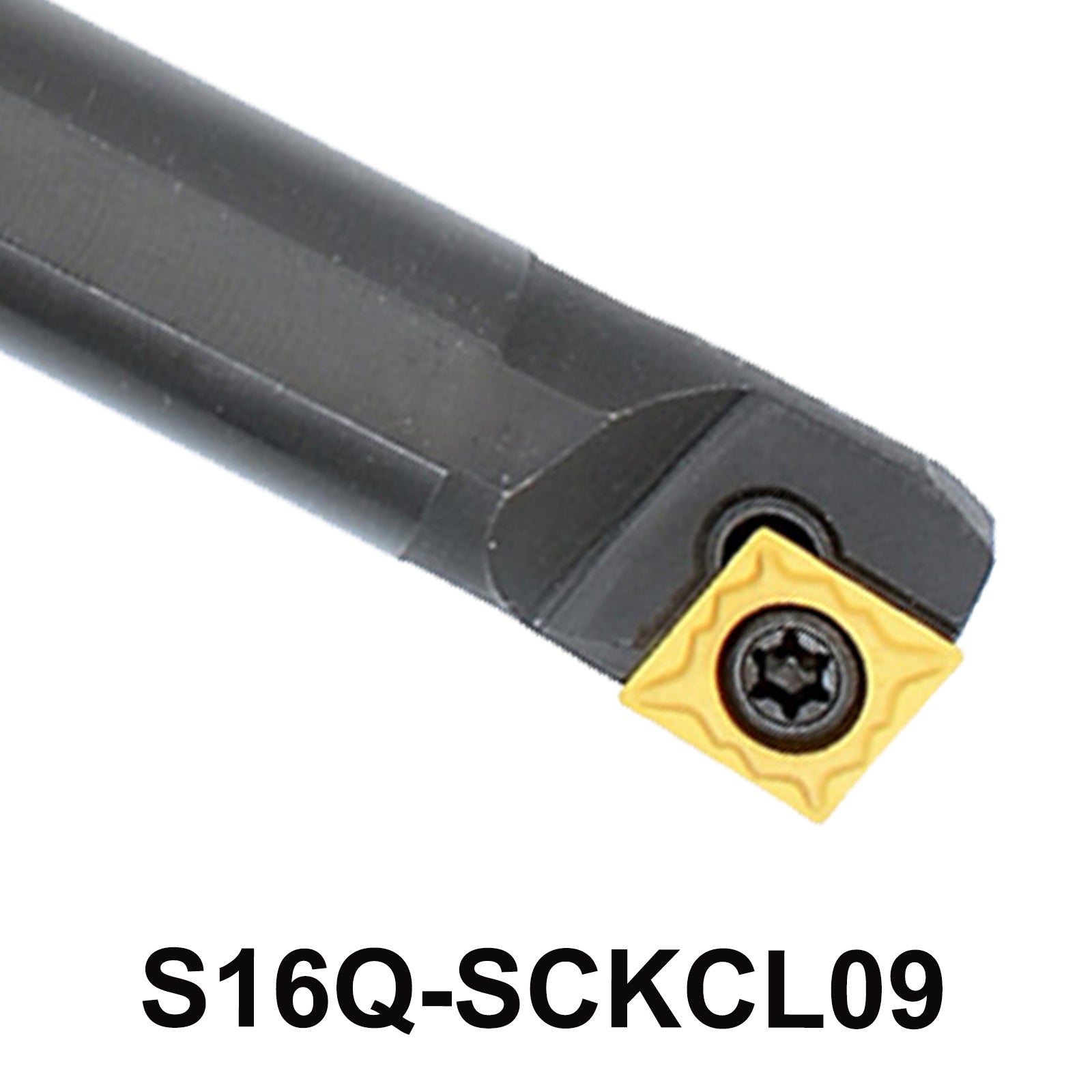

S16Q-SCKCL09 CNC Boring Bar Tool Holder - Internal Turning Tools

• Specifications and Dimensions

• Application of S16Q-SCKCL09

• Advantages of S16Q-SCKCL09

• Why Choose S16Q-SCKCL09?

• Buy S16Q-SCKCL09 CNC Boring Bar Tool Holder

• Cutting Edge Angle 75°

• Blade Relief Angle 7°

• Alloy Steel Material

• S-Type Model

Advantages

• Precision Machining: 75° cutting edge angle ensures accuracy.
• Durability: Made from high-quality alloy steel for longevity.
• Versatility: Supports a range of CCMT inserts.
• Ease of Use: Includes M4*8 screw and T15 wrench for convenient setup.
• Performance: 9mm cutting blade length enhances efficiency in machining tasks.

Application: Ideal for CNC machine tools and CNC lathes, suitable for internal turning operations in industries such as automotive, aerospace, and general manufacturing.

Overview: Elevate your CNC machining operations with the S16Q-SCKCL09 CNC boring bar tool holder. This tool holder is designed for precision internal turning on CNC lathes, crafted from durable alloy steel. It features a 75° cutting edge angle and 7° blade relief angle, ensuring efficient and accurate cutting performance. Compatible with a variety of CCMT carbide inserts including CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1 and CCMT3(2.5)2, this tool holder offers versatility across different machining applications.

Detail Page:

• Tool Holder Type: CNC Boring Bar Holder
• Tool Cutting Edge Angle: 75°
• Relief Angle of Blade: 7°
• Material: Alloy Steel
• Model: S16Q-SCKCL09
• Handle Diameter: 16mm
• Total Length: 180mm
• Length of Cutting Blade: 9mm
• Screw: M4*8
• Wrench: T15
• Blade Compatibility: CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5 )2

Package Includes:

• S16Q-SCKCL09 Tool Holder
• Compatible Screws and Wrenches

5-point Product Description:

1. Precision Machining: Designed for CNC internal turning operations with a precise 75° cutting edge angle and a 7° relief angle for superior cutting performance.

2. Durable Build: Constructed from high-quality alloy steel, ensuring strength and longevity suitable for industrial use.

3. Versatile Blade Options: Compatible with various CCMT blades including CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0,CCMT3(2.5)1,CCMT3(2.5)2, providing versatility in machining tasks.

4. Application: Ideal for CNC machining centers and lathes, specifically tailored for boring bar setups to enhance precision and efficiency.

5. Ease of Use: Includes M4*8 screws and a T15 wrench for easy installation and maintenance, making it convenient for machining operations.
