Overview

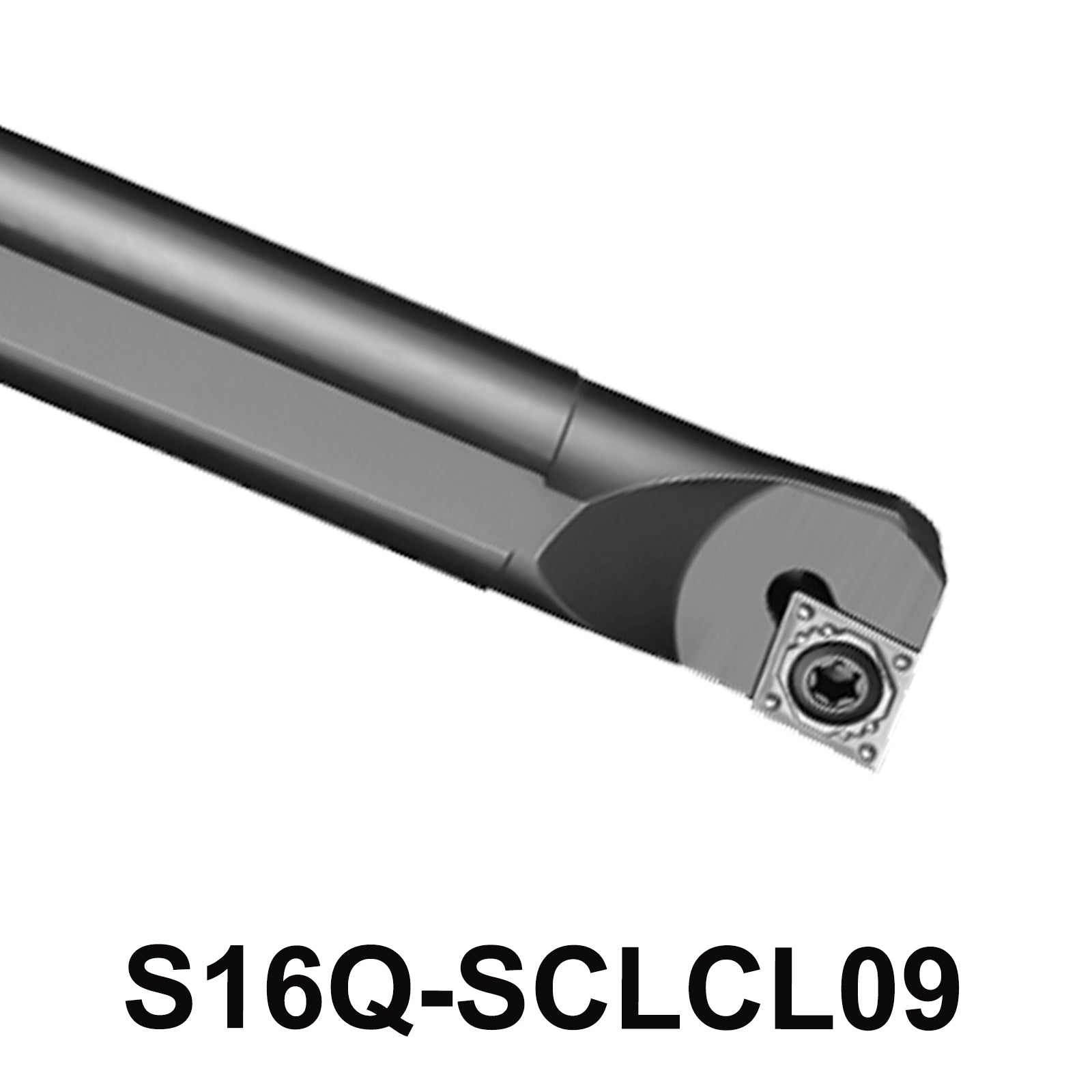

Introducing the S16Q-SCLCL09 CNC Internal Boring Bar Tool Holder—an advanced tool designed for precision machining in CNC lathes and machine tools. Constructed from durable alloy steel, this tool holder features a 95° cutting edge angle and a 7° relief angle, optimizing its performance for internal turning operations. With a handle diameter of 16mm and a total length of 180mm, it accommodates a range of cutting blades including CCMT09T302 and CCMT09T304,CCMT09T308

Key Features:

• Material: Alloy Steel
• Cutting Edge Angle: 95°
• Relief Angle of Blade: 7°
• Diameter of Handle: 16mm
• Total Length: 180mm
• Length of Cutting Blade: 9mm
• Screw: M4*8
• Wrench: T15
• Blade Compatibility: CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5)2

Application

• CNC Machine Tools: Designed for use in CNC lathes and boring bars, ideal for complex internal machining tasks.
• Internal Turning: Perfect for precise internal boring and turning operations, contributing to high-quality machining outcomes.

Advantages

• Durability: Alloy steel construction ensures robustness and long-term use.
• Precision: Accurate cutting and relief angles improve machining accuracy and efficiency.
• Flexibility: Compatible with a variety of blades to suit different machining needs.

Reasons to Choose

• High-Quality Material: Provides strength and longevity under rigorous use.
• Precision Engineering: Optimized angles for effective internal turning and boring.
• Versatile Blade Support: Allows for adaptability in various machining applications.
