Overview

Introducing the S16Q-SDUCL11 Mechanical Lathe CNC Internal Boring Bar Tool Holder – a precision-engineered cutting tool designed for exceptional performance in CNC machining. With a 95° cutting edge angle and a relief angle of 7°, this tool holder ensures optimal cutting efficiency and longevity. Crafted from high-quality alloy steel, it is built to withstand rigorous machining operations. The S-type screw design allows for secure and adjustable blade positioning, making it a versatile addition to your tooling arsenal. Ideal for use with CNC lathes and boring bar machines, this tool holder is compatible with a range of carbide inserts, enhancing its functionality across various applications.

Applications

The S16Q-SDUCL11 Internal Boring Bar Tool Holder is ideal for use in CNC machine tools and CNC lathes. It excels in internal turning operations and is suitable for a wide range of machining applications, including precision boring and complex internal cuts.

Key Features:

• Cutting Edge Angle: 95°
• Relief Angle: 7°
• Material: High-grade alloy steel
• Diameter of Handle: 16mm
• Total Length: 180mm
• Length of Cutting Blade: 11mm
• Screw Type: M4*8
• Wrench Type: T15
• Compatible Blades: DCMT11T302, DCMT11T304, DCMT11T308, DCMT3(2.5)0, DCMT3(2.5)1, DCMT3(2.5)2

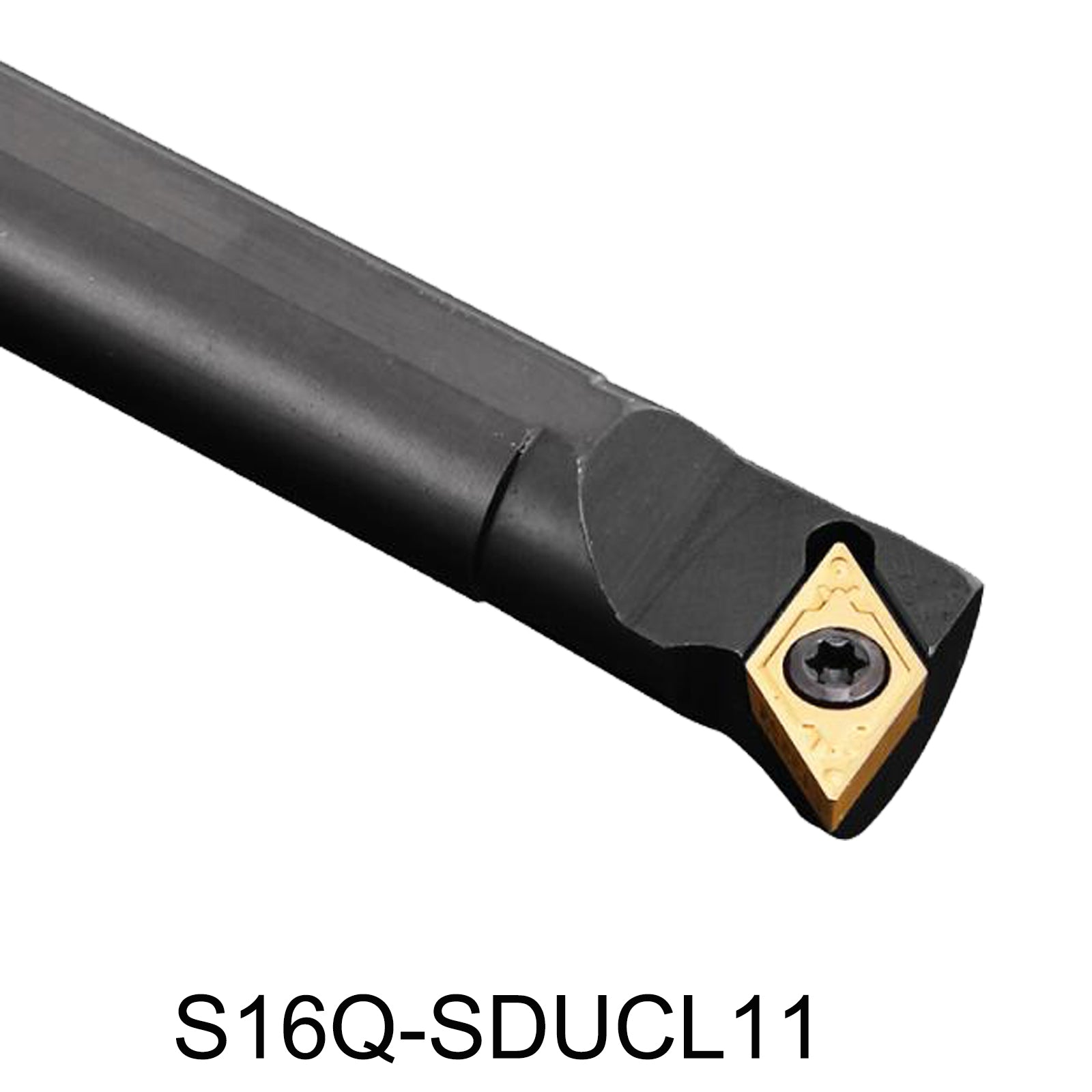

S16Q-SDUCL11 Mechanical Lathe CNC Internal Boring Bar Tool Holder S16Q SDUCL11 engine boring bar

• Superior Engineering for Optimal Performance

• Durable Alloy Steel Construction for Long-Lasting Use

• Versatile Compatibility with Multiple DCMT Carbide Inserts

• Cutting Edge Angle and Blade Relief for Optimal Results

• Why Choose the S16Q-SDUCL11 Tool Holder?

Why Choose Us?

• High-Quality Materials: Our tool holders are made from premium alloy steel for superior performance and longevity.
• Expert Craftsmanship: Engineered to meet the highest standards of precision and reliability.
• Customer Satisfaction: We are committed to providing excellent products and support to meet your machining needs.

5-Point Description:

1. Precision Cutting: Achieve superior results with a 95° cutting edge angle and 7° relief angle, ensuring clean and accurate internal turning.
2. Durable Construction: Made from high-quality alloy steel, this tool holder is designed for maximum strength and longevity.
3. Versatile Compatibility: Compatible with multiple carbide inserts, making it adaptable to various machining tasks.
4. Enhanced Stability: The 16mm diameter handle provides robust stability and control during operation.
5. Ease of Use: The S-type screw design allows for simple and secure blade changes, reducing downtime and increasing productivity.

Advantages

• Precision Engineering: Ensures high accuracy and excellent surface finish.

• Versatility: Supports a variety of carbide inserts for different cutting requirements.

• Robust Construction: Alloy steel design guarantees durability and long-term performance.
