5-Point Description:

1. 93° Cutting Edge Angle: Provides precise internal boring and turning.
2. 7° Blade Relief Angle: Enhances cutting efficiency and reduces tool wear.
3. Alloy Steel Construction: Offers durability and strength for extended use.
4. Screw-Type Design: Ensures secure blade attachment and easy adjustments.
5. Compact Size: With a 180mm total length and 16mm handle diameter for versatile use.

Overview

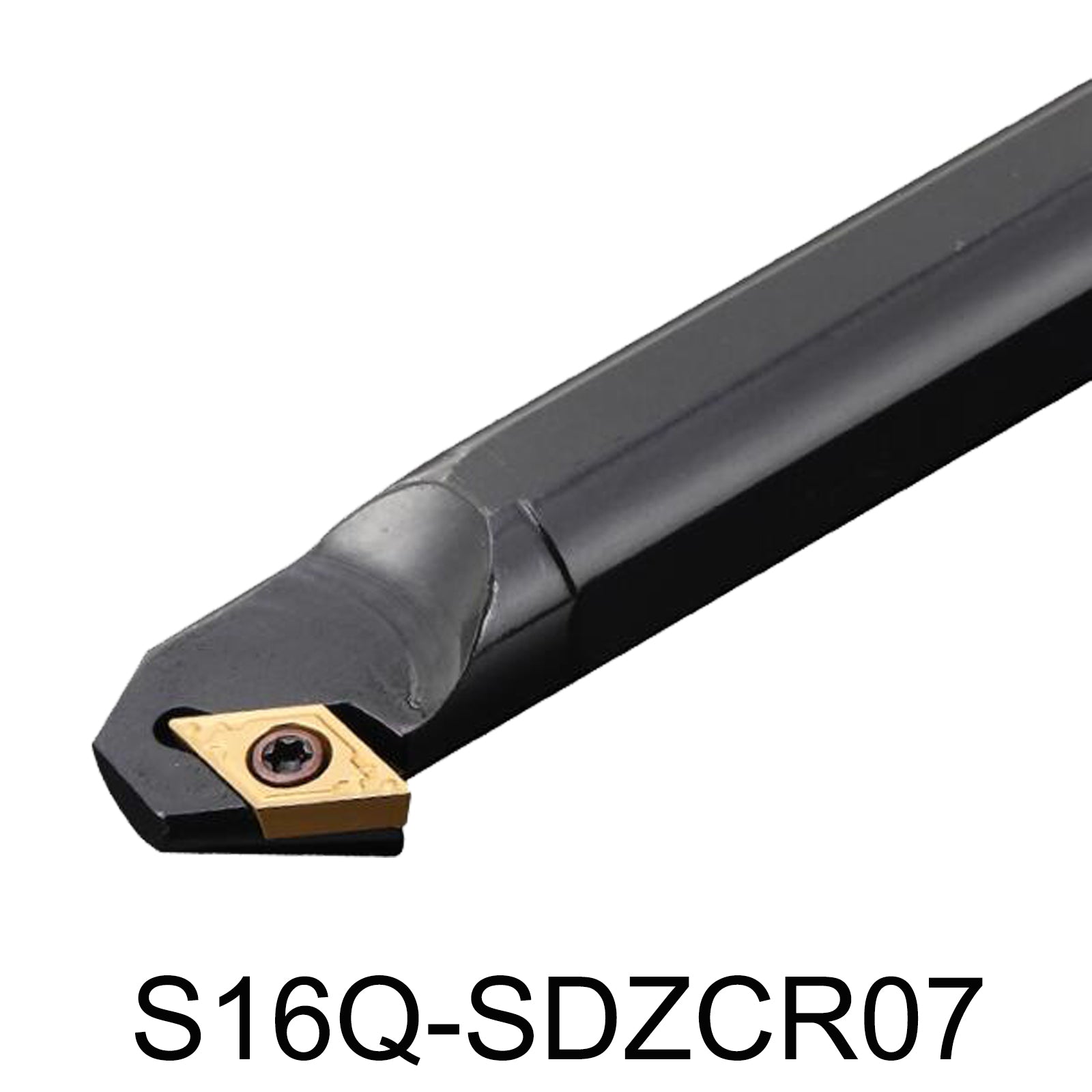

Elevate your CNC machining capabilities with the S16Q-SDZCR07 internal boring bar tool holder. Engineered with a 93° cutting edge angle and a 7° relief angle, this tool holder ensures precise internal turning. Constructed from high-quality alloy steel, it features a secure S-type screw attachment, making it compatible with various blades. Perfect for CNC machine tools and lathes, it provides a reliable and durable solution for internal boring tasks.

Key Features

• Model:S16Q-SDZCR07
• Cutting Edge Angle: 93°
• Relief Angle: 7°
• Material: Alloy Steel
• Handle Diameter: 16mm
• Total Length: 180mm
• Blade Length: 7mm
• Compatible Inserts: DCMT070202,DCMT070204,DCMT070208, DCMT2(1.5)0, DCMT2(1.5)1,DCMT2(1.5)2
• Includes: M2.5*6 Screws, T8 Wrench

Application: Ideal for CNC machine tools and lathes, this tool holder is used for internal boring and turning tasks. Compatible with various DCMT blades for flexible machining options.

Advantages:

1. Precision Engineering: Ensures accurate and reliable cutting.
2. Durable Material: Alloy steel construction for longevity.
3. Versatile Compatibility: Works with multiple blade types.
4. Secure Blade Hold: Screw-type mechanism prevents blade slippage.
5. Efficient Design: Compact size for ease of use and maneuverability.
