Overview

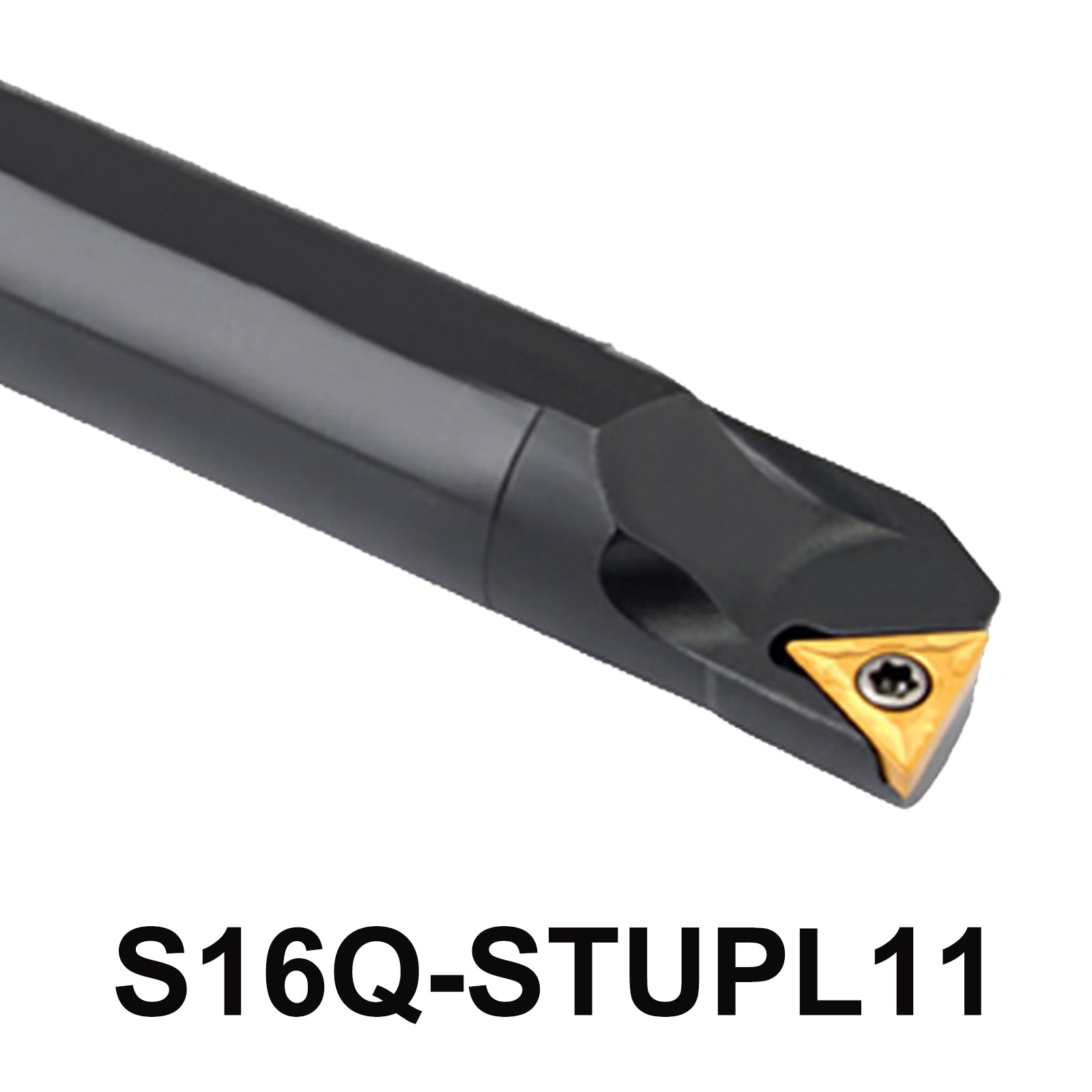

The S16Q-STUPL11 CNC Internal Boring Bar Tool Holder is designed for precision and durability in internal boring applications. Crafted from high-quality alloy steel, this tool holder features a 95° cutting edge angle and an 11° relief angle to ensure smooth and efficient cutting. With a handle diameter of 16mm and a total length of 180mm, it provides excellent stability and control.

Features and Specifications

• Model: S16Q-STUPL11
• 95° cutting edge angle and 11° relief angle.
• Material:  alloy steel
• Type: S-Type (Screw-type)
• Handle Diameter: 16mm
• Total Length: 180mm
• Cutting Blade Length: 11mm
• Screw Size: M3*8
• Wrench: T8
• Compatible Blades: TPMT110302 TPMT110304

Package Includes:

• S16Q-STUPL11 Tool Holder
• Compatible Screws, and Wrenches

Application

• CNC Machine Tools: Ideal for internal boring and precision turning tasks.
• CNC Lathes: Suitable for detailed internal machining with accurate control.
• Boring Bar Sets: Enhances performance for a wide range of internal cutting applications.

BEYOND S16Q-STUPL11 Internal Turning Tools Holder S16Q STUPL11 STUPL 11 Boring Bar CNC Lathe Cutter Machine STUPL Carbide Inserts TPMT1103 TPMT110304

• Precision Internal Boring with the S16Q-STUPL11 Tool Holder


• Robust Alloy Steel Construction for High-Performance Machining


• Versatile Design with 16mm Handle and 11mm Blade Length



• 95° Cutting Edge and 11° Relief Angle for Optimal Performance


• Enhanced Control with 16mm Handle Diameter and 180mm Total Length


• Compatible with TPMT110302 and TPMT110304 Carbide Inserts

5-Point Description

1. High-Quality Alloy Steel: Ensures durability and long-term performance.
2. 95° Cutting Edge Angle: Provides precise and efficient internal cutting.
3. 11° Relief Angle: Enhances chip removal and reduces cutting forces.
4. Stable Design: 16mm handle diameter and 180mm total length for superior control.
5. Versatile Blade Compatibility: Works with TPMT110302 and TPMT110304 inserts for various applications.
