Overview

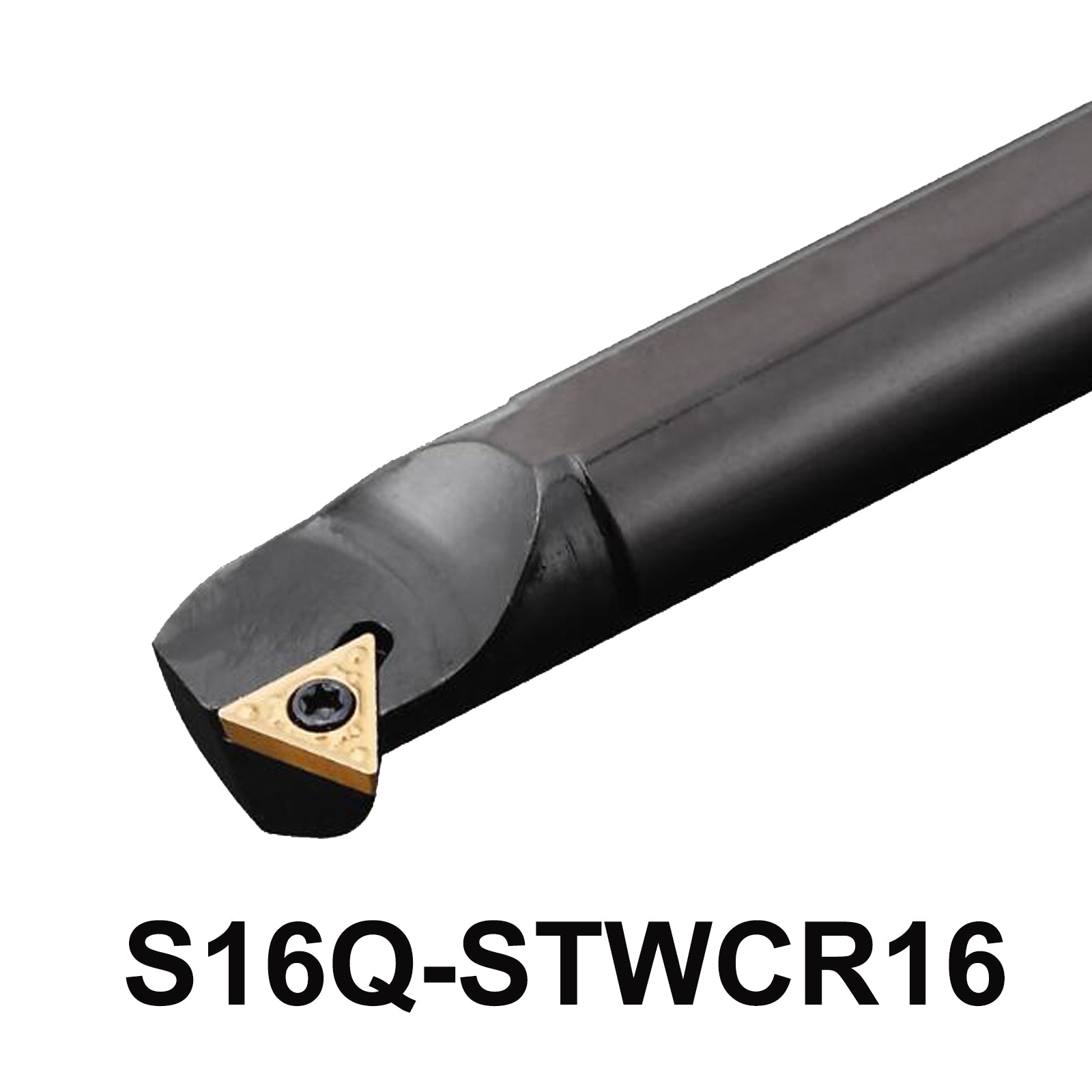

The S16Q-STWCR16 CNC Internal Boring Bar Tool Holder is engineered for precision and efficiency in internal boring tasks. Constructed from high-strength alloy steel, this tool holder features a 60° cutting edge angle with a 7° relief angle, ensuring smooth and accurate internal cuts. With a handle diameter of 16mm and a total length of 180mm, it provides stability and control.

Features and Specifications

• Model:  S16Q-STWCR16
• 95° cutting edge angle and 7° relief angle.
• Material:  alloy steel
• Type: S-Type (Screw-type)
• Handle Diameter: 16mm
• Total Length: 180mm
• Cutting Blade Length: 16mm
• Screw Size: M4*10
• Wrench: T15
• Compatible Blades: TCMT16T304,TCMT16T308,TCMT3(2.5)1,TCMT3(2.5)2

Package Includes:

• S16Q-STWCR16  Tool Holder
• Compatible Screws, and Wrenches

Application

• CNC Machine Tools: Ideal for high-precision internal boring and turning.
• CNC Lathes: Perfect for detailed internal work with improved accuracy.
• Boring Bar Sets: Enhances performance for various internal machining tasks.

BEYOND S16Q-STWCR16  Internal Turning Tools Holder S20R STWCR11 STWCR 11 Boring Bar CNC Lathe Cutter Machine STWCR Carbide Inserts TCMT1102 TCMT110202

• High-Performance S-Type Internal Boring Bar Tool Holder for CNC Lathes

• 60° Cutting Edge with 7° Relief for Optimal Internal Turning

• Robust Design with 16mm Handle and Versatile TCMT Blade Compatibility

• Durable Alloy Steel Construction for Enhanced Longevity

• Extended 16mm Cutting Blade for Increased Precision

• User-Friendly Setup with M4*10 Screws and T15 Wrench

5-Point Description

1. Alloy Steel Construction: Ensures long-lasting durability and resistance to wear.
2. 60° Cutting Edge Angle: Provides precision and smooth internal cuts.
3. 7° Relief Angle: Reduces cutting forces and enhances chip removal.
4. Extended 16mm Cutting Blade: Offers increased cutting depth and accuracy.
5. Easy Adjustments: M4 screws and T15 wrench simplify tool maintenance and setup.
