BEYOND S16Q-SVJCR11 Internal Turning Tools Holder S16Q SVJCR11 SVJCR 11 Boring Bar CNC Lathe Cutter Machine SVJCR Carbide Inserts VCMT1103 VCMT110304

• S16Q-SVJCR11 Information Overview

• Overview

The S16Q-SVJCR11 Mechanical Lathe CNC Internal Boring Bar Tool Holder is engineered for professionals seeking precision and versatility in their CNC machining tasks. Made from robust alloy steel, this tool holder features a 3° cutting edge angle that facilitates accurate internal boring and turning. Its S-type (screw-type) design allows for easy blade adjustments, while compatibility with multiple carbide inserts enhances its adaptability across various applications.

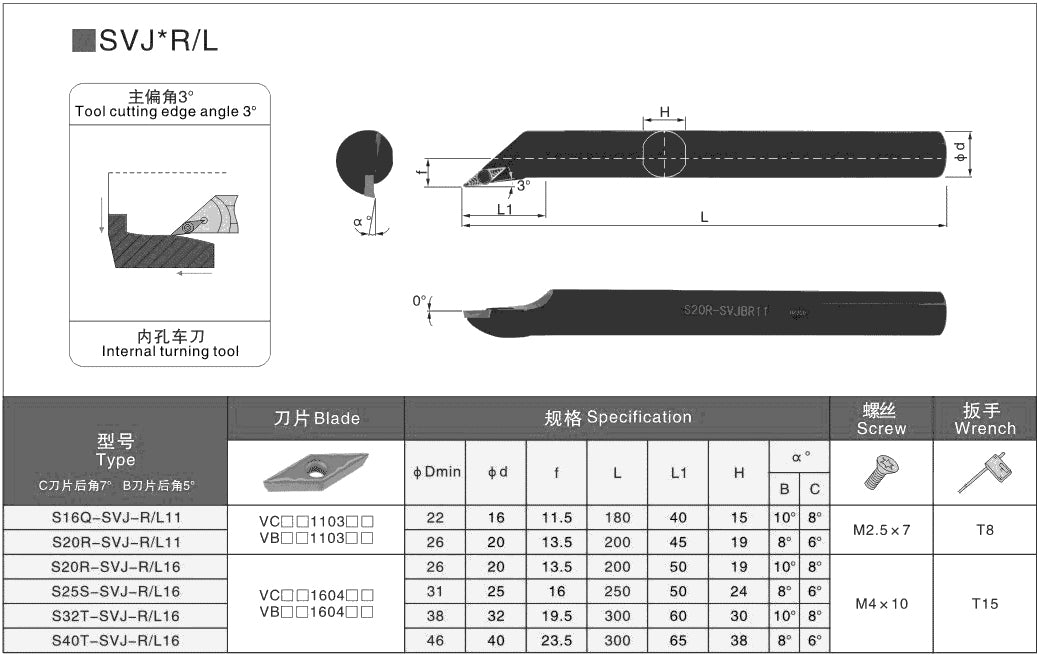

• Dimensions and Specifications of S16Q-SVJCR11 Boring Bar Holder Lathe

• Features and Specifications

  • Model: S16Q-SVJCR11
  • Package Includes: S16Q-SVJCR11 Tool Holder and compatible Screws, and Wrenches
  • 3° cutting edge angle and 7° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 16mm
  • Total Length: 180mm
  • Cutting Blade Length: 11mm
  • Screw Size: M2.5*7
  • Wrench: T8
  • Compatible Blades: VCMT110302 VCMT110304 VCMT110308 VCMT220 VCMT221 VCMT222

• 5-Point Description

1. Precision Engineering: With a 3° cutting edge angle and a 7° relief angle, this tool holder delivers exceptional accuracy for internal boring tasks.
2. Durable Alloy Steel: Constructed from high-quality alloy steel, ensuring long-lasting performance even in demanding machining environments.
3. Compatibility: Designed to accommodate a range of carbide inserts, including VCMT110302, VCMT110304, VCMT110308, and VCMT220 series, enhancing versatility.
4. Ergonomic S-Type Design: Features an S-type screw configuration for secure tool holding, providing stability during operation.
5. Optimized Dimensions: Compact design with a 10mm handle diameter, total length of 125mm, and a cutting blade length of 11mm, ideal for precise internal turning.
