BEYOND S16Q-SVWBR11 Internal Turning Tools Holder S16Q SVWBR11 SVWBR 11 Boring Bar CNC Lathe Cutter Machine SVWBR Carbide Inserts VBMT

• S16Q-SVWBR11 Information Overview

• Overview

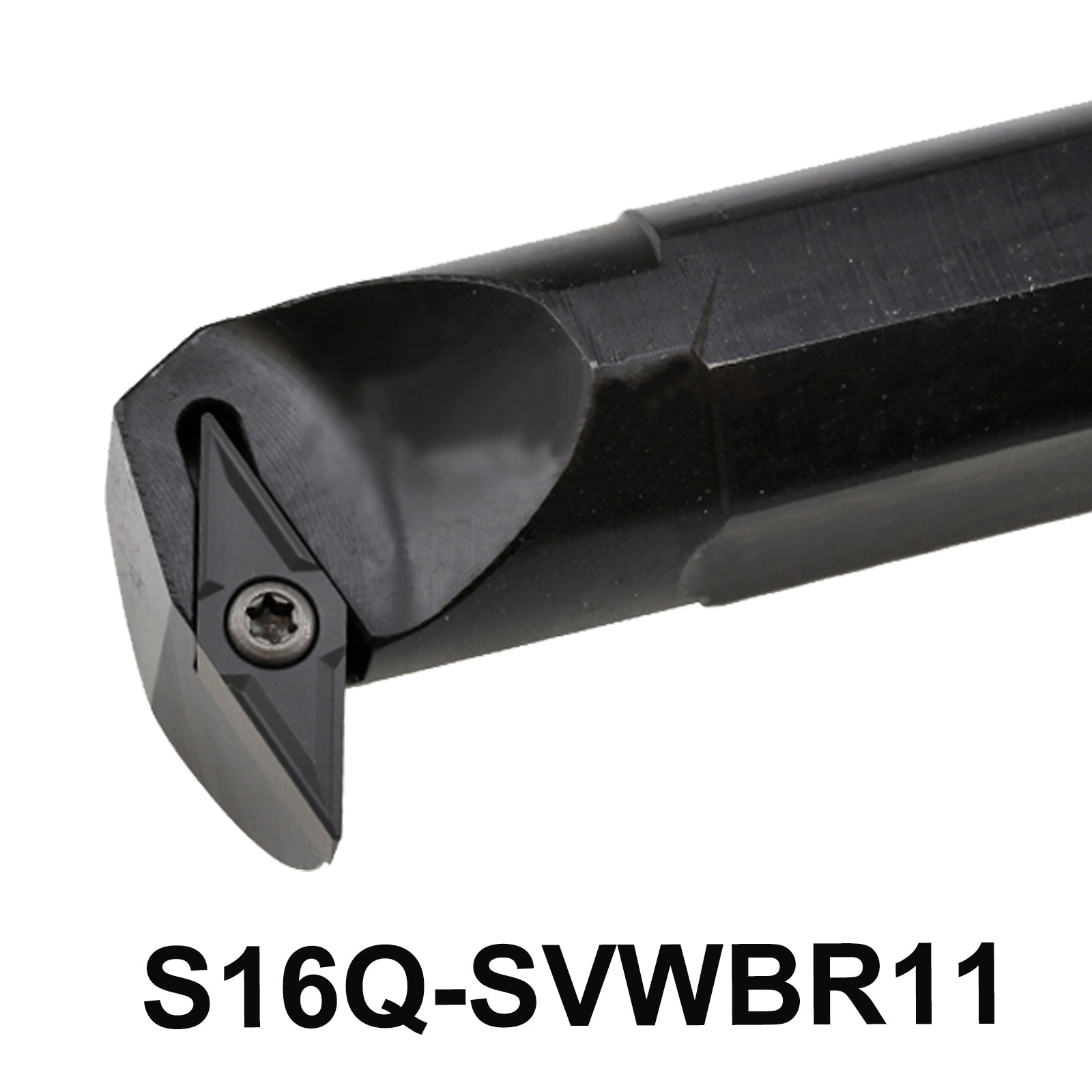

Introducing the S16Q-SVWBR11 CNC Internal Boring Bar Tool Holder, engineered for precision and reliability in internal machining tasks. With a cutting edge angle of 72.5° and a 5° blade relief, this tool holder ensures exceptional cutting performance. Crafted from durable alloy steel, it features a 16mm handle diameter and a total length of 180mm, providing excellent control and stability during operation. The 11mm cutting blade is compatible with VBMT110302, VBMT110304, VBMT110308, VBMT220, VBMT221, and VBMT222 carbide inserts, making it versatile for various CNC machine tools and lathes.

• Dimensions and Specifications of S16Q-SVWBR11 Boring Bar Holder Lathe

• Features and Specifications

  • Model: S16Q-SVWBR11
  • Package Includes: S16Q-SVWBR11 Tool Holder and compatible Screws, and Wrenches
  • 72.5° cutting edge angle and 5° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 16mm
  • Total Length: 180mm
  • Cutting Blade Length: 11mm
  • Screw Size: M2.5*7
  • Wrench: T8
  • Compatible Blades: VBMT110302 VBMT110304 VBMT110308 VBMT220 VBMT221 VBMT222

• 5-Point Description

1. Optimal Cutting Performance: Features a 72.5° cutting edge angle and 5° blade relief for smooth and efficient internal boring.
2. Durable Construction: Made from high-quality alloy steel, ensuring longevity and resistance to wear during heavy use.
3. Versatile Compatibility: Works with VBMT110302, VBMT110304, VBMT110308, VBMT220, VBMT221, and VBMT222 inserts for diverse applications.
4. User-Friendly Design: 16mm handle diameter and 180mm total length allow for enhanced control and comfort while operating.
5. Complete Tool Kit: Includes M2.5*7 screw and T8 wrench for easy installation and quick adjustments on the job.
