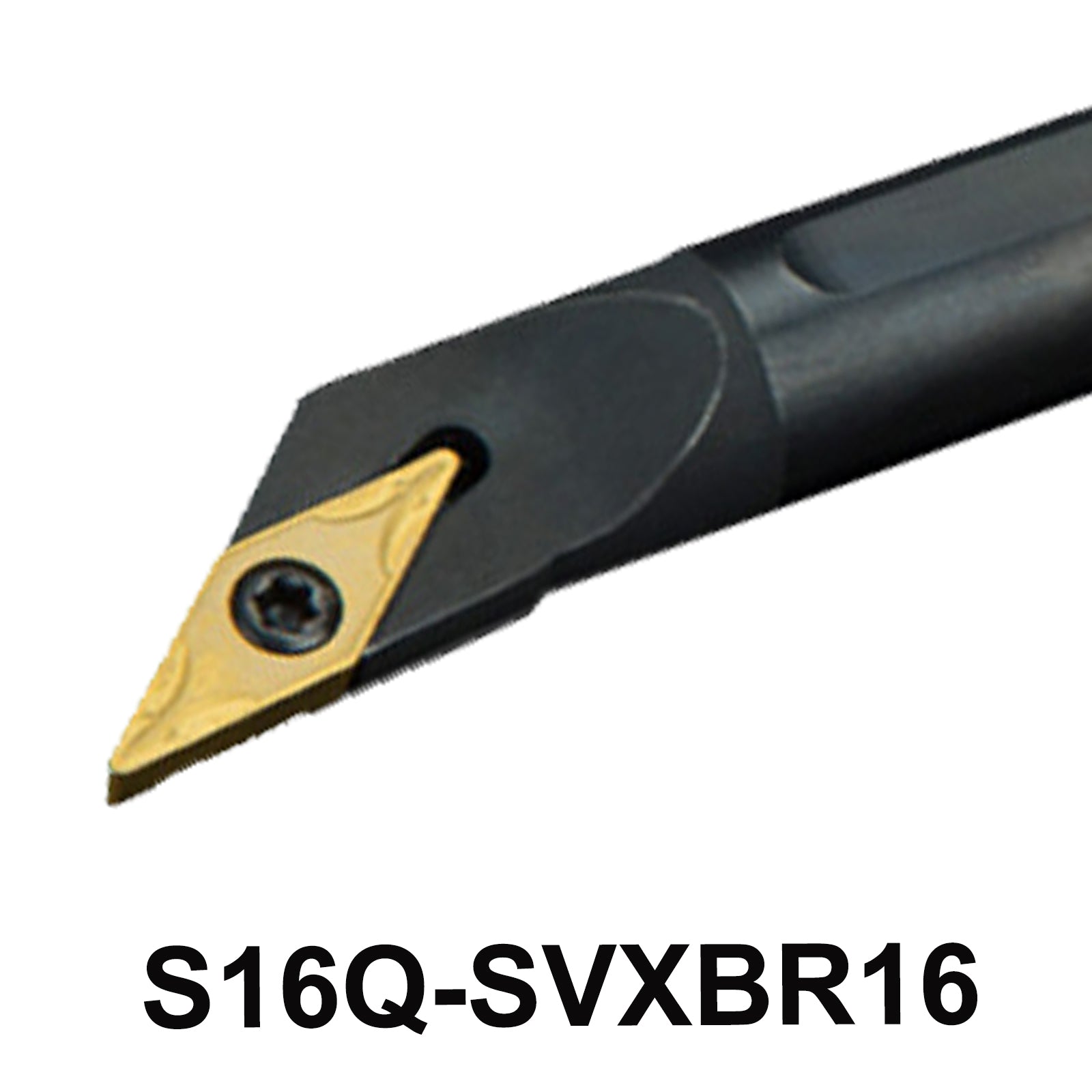

BEYOND S16Q-SVXBR16 Internal Threading Tool S16Q-SVXBR16 SVXBR 16 Boring Bar CNC Lathe Cutter Machine  Carbide Inserts VBMT1604 VBMT160404

• S16Q-SVXBR16 Information Overview

• Overview

The S16Q-SVXBR16 Mechanical Lathe CNC Internal Boring Bar Tool Holder is the ultimate tool for precision machining professionals. Constructed from robust alloy steel, this tool holder features a cutting edge angle of 96° that enhances its performance for internal boring and turning applications. The S-type (screw-type) adjustment mechanism provides ease of use, allowing for secure blade positioning. Its compatibility with various carbide inserts ensures adaptability for diverse machining needs.

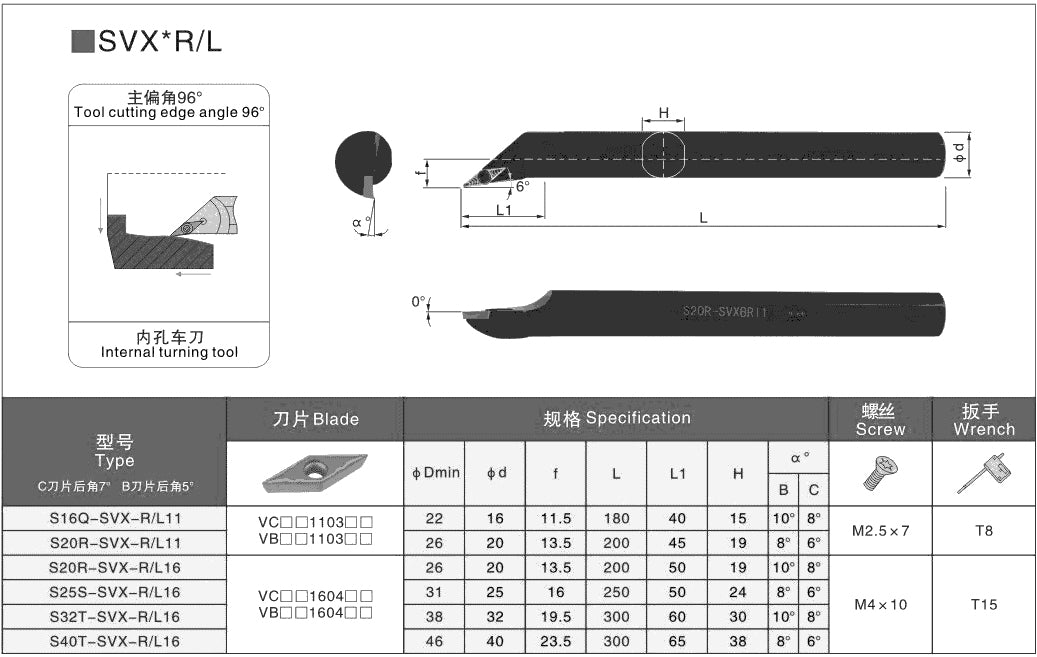

• Dimensions and Specifications of S16Q-SVXBR16 Boring Bar Holder Lathe

• Features and Specifications

  • Model: S16Q-SVXBR16
  • Package Includes: S16Q-SVXBR16 Tool Holder and compatible Screws, and Wrenches
  • 96° cutting edge angle and 5° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 16mm
  • Total Length: 180mm
  • Cutting Blade Length: 16mm
  • Screw Size: M4*10
  • Wrench: T15
  • Compatible Blades: VBMT160404  VBMT160408 VBMT331 VBMT332

• 5-Point Description

1. Superior Alloy Steel Construction: The S16Q-SVXBR16 tool holder is made from high-quality alloy steel, ensuring durability and performance even in the most demanding machining environments.

2. Precision Cutting Edge Angle: Designed with a 96° cutting edge angle, this tool holder is optimized for internal boring and turning, delivering precise cuts and exceptional surface finishes on your workpieces.

3. Effortless Adjustability: Featuring an S-type (screw-type) design, the tool holder includes an M4*10 screw and a T15 wrench for easy adjustments, ensuring that the blade is securely positioned for consistent results.

4. Wide Compatibility with Inserts: Compatible with various carbide inserts including VBMT160404, VBMT160408, VBMT331, and VBMT332, the S16Q-SVXBR16 offers versatility for a range of machining applications.

5. Compact and Ergonomic Dimensions: With a handle diameter of 16mm, a total length of 180mm, and a cutting blade length of 16mm, this tool holder is designed for optimal control and stability, making it ideal for precision internal boring tasks.
