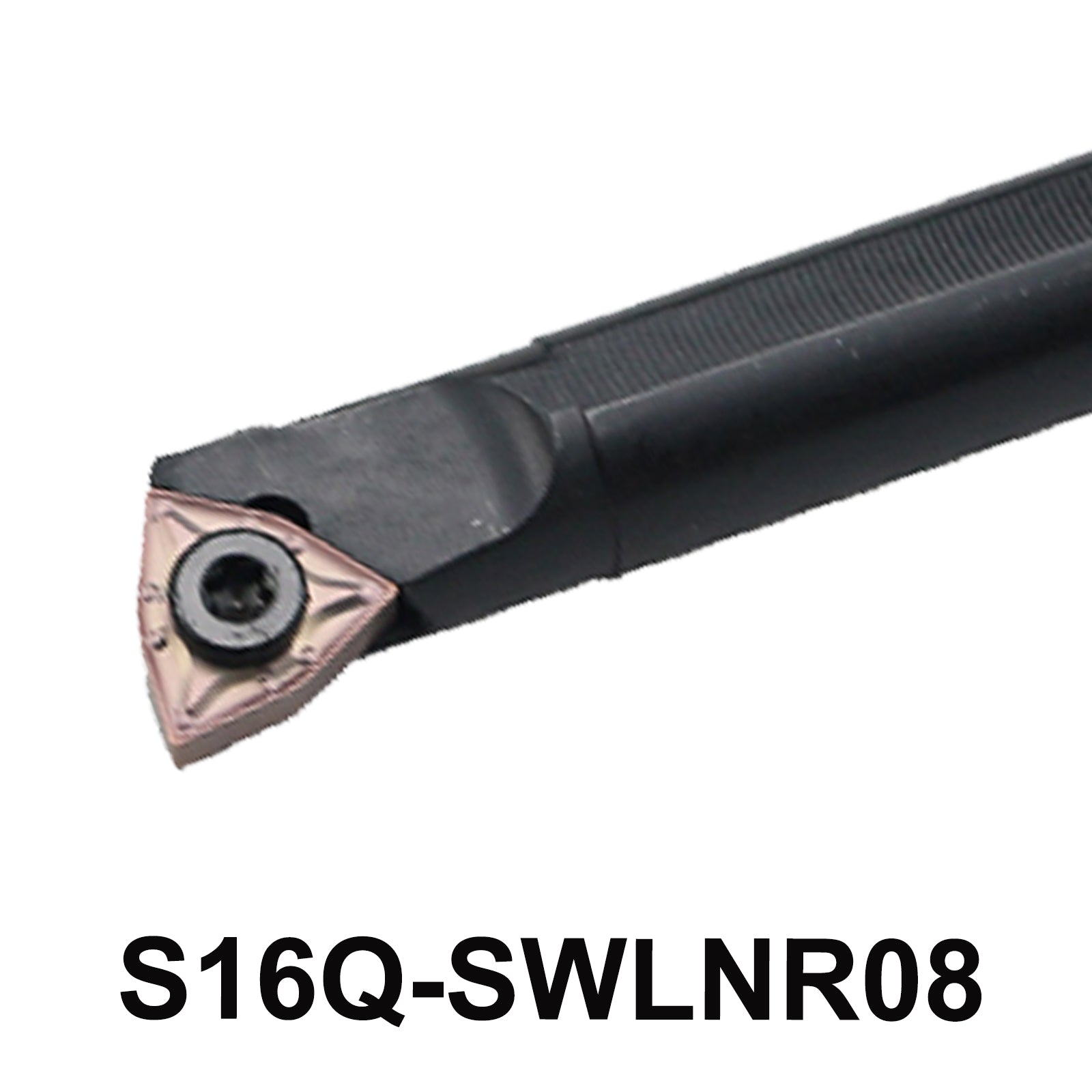

CNC Internal Turning Tool Holder S16Q-SWLNR08

Specifications and Applications

Alloy Steel | S-Type Model | 95° Cutting Edge Angle

5-Point Product Description for S16Q-SWLNR08:

1. Precision Machining: Designed for internal turning operations with a precise 95° cutting edge angle and no relief angle, ensuring high machining accuracy.

2. Durable Construction: Made from robust alloy steel for longevity and reliability in demanding industrial environments.

3. Versatile Blade Options: Compatible with a variety of WNMG carbide inserts (WNMG080404, WNMG080408, WNMG080412, WNMG431, WNMG432, WNMG433), providing flexibility for different machining tasks.

4. Optimized Design: Features an ergonomic S-type model with a 16mm diameter handle and total length of 180mm, ensuring ease of handling and stability during operation.

5. Wide Applications: Ideal for use in CNC machine tools, CNC lathes, and machining centers, offering versatility across multiple machining applications.

Specifications:

• Tool Cutting Edge Angle: 95°
• Relief Angle of Blade: 0°
• Material: Alloy Steel
• Model: S16Q-SWLNR08
• Diameter of Handle: 16mm
• Total Length: 180mm
• Length of Cutting Blade: 8mm
• Screw: M4.5*14W
• Wrench: T20
• Blade Compatibility: WNMG080404, WNMG080408, WNMG080412, WNMG431, WNMG432, WNMG433

Enhance your machining efficiency with the S16Q-MWLNR08 CNC boring bar tool holder. Featuring alloy steel construction, 95° cutting edge angle, and M-type multi-lock system for stability.

Advantages:

• High-Quality Material: Made from durable alloy steel for longevity.
• Optimized Design: Features a 95° cutting edge angle for precise cutting.
• Versatile Blade Compatibility: Accommodates various WNMG insert types for flexibility in machining tasks.
• Secure Fastening: Includes an M4.5*14W screw and T20 wrench for stable assembly.
• Wide Application Range: Suitable for diverse internal turning applications in CNC environments.

Application:

The S16Q-SWLNR08 is primarily used in CNC machine tools, CNC lathes, and machining centers for internal turning operations, providing precise and efficient cutting capabilities.

Choosing Reason:

Select the S16Q-SWLNR08 for its robust construction, precise cutting capabilities, versatile compatibility with WNMG inserts, and suitability for a wide range of CNC machining tasks.

Package Includes:

• S16Q-SWLNR08 Tool Holder
• Compatible  Screws and Wrenches
