Overview

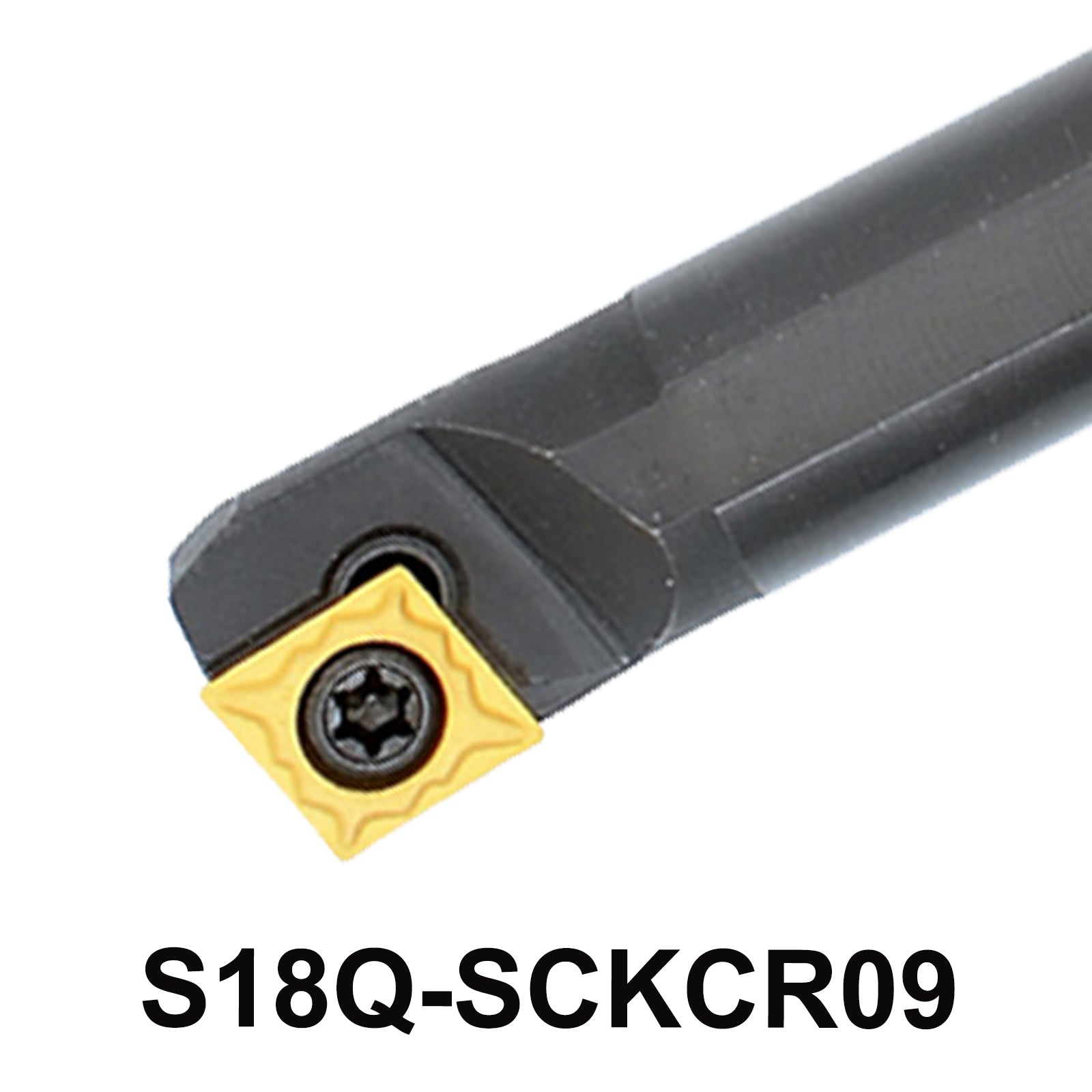

The S18Q-SCKCR09 CNC boring bar tool holder is a robust tool designed for precision internal turning operations. Featuring a 75° cutting edge angle and a 7° relief angle, it is crafted from durable alloy steel and supports various CCMT inserts for versatility.

Detail Page:

• Tool Holder Type: CNC Boring Bar Holder
• Tool Cutting Edge Angle: 75°
• Relief Angle of Blade: 7°
• Material: Alloy Steel
• Model: S18Q-SCKCR09
• Handle Diameter: 18mm
• Total Length: 180mm
• Length of Cutting Blade: 9mm
• Screw: M4*8
• Wrench: T15
• Blade Compatibility: CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5 )2

Why Choose S18Q-SCKCR09:

• Reliable Performance: Ensures consistent and reliable machining operations.
• Versatility: Suitable for a range of internal turning tasks.
• Quality Build: Crafted from high-grade materials for durability.

Application

Perfect for CNC machining tasks requiring precise internal turning operations across various materials.

Advantages

• Precision Machining: Features a 75° cutting edge angle for accuracy.
• Durability: Made from high-quality alloy steel for long-lasting performance.
• Versatility: Compatible with a range of CCMT inserts.
• Ease of Use: Includes M4*8 screw and T15 wrench for easy installation.
• Efficiency: 9mm cutting blade length enhances machining efficiency.

Reasons to Choose S18Q-SCKCR09

• Precision Engineering: Designed for accurate and reliable machining operations.
• Durable Build: Made from robust alloy steel for long-lasting performance.
• Versatile Application: Suitable for various internal turning tasks in CNC environments.
• Ease of Use: Includes necessary accessories for quick setup and adjustments.
• Cost-Effective: Enhances machining efficiency and productivity.

S18Q-SCKCR09 CNC Boring Bar: Precision Tool Holder for CNC Machining

•  Precision materials, strong and durable

• Compatible with Standard CCMT Inserts

• Ideal for Various Machining Operations

• Cutting Edge Angle 75°

• Blade Relief Angle 7°

• Alloy Steel Material

• S-Type Model

5-point Product Description:

1. Precision Machining: Designed for internal turning operations with a 75° cutting edge angle and 7° blade relief angle, ensuring precise cuts and smooth performance.

2. High-Quality Material: Made from durable alloy steel, offering robustness and longevity in machining applications.

3. Versatile Compatibility: Compatible with a variety of CCMT carbide inserts (CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5)2), providing flexibility across different materials and machining tasks.

4. Ease of Use: Features an 18mm handle diameter and total length of 180mm, complete with an M4*8 screw and T15 wrench for easy installation and adjustment on CNC lathes.

5. Applications: Ideal for industries such as automotive, aerospace, and general manufacturing where precise internal turning is crucial for achieving superior machining results.
