Overview:

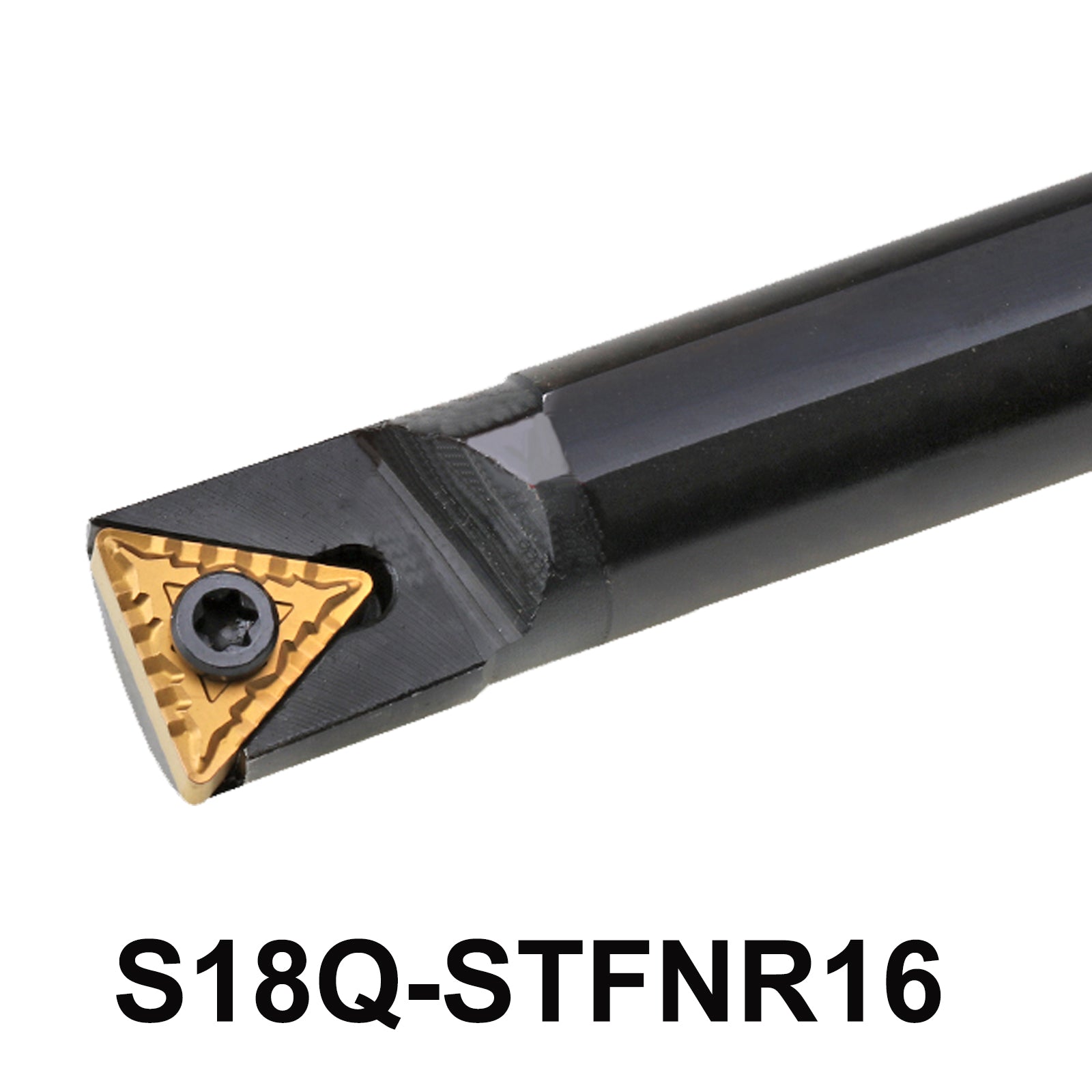

The S18Q-STFNR16 is a precision internal boring bar tool holder designed for CNC lathes and machine tools.

Specifications:

• Tool Cutting Edge Angle: 91°
• Relief Angle of Blade: 0°
• Material: Alloy Steel
• S-type  System
• Model: S16Q-STFNR16
• Diameter of Handle: 18mm
• Total Length: 180mm
• Length of Cutting Blade: 16mm
• Screw: M3.5*13T
• Wrench:T15
• Compatible Blade Models: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333


Features:

• Ensures precise internal turning with a 91° cutting edge angle and zero relief angle, promoting high accuracy in machining operations.
• Constructed from durable alloy steel, providing longevity and reliability under rigorous machining conditions.
• Features an S-type  for enhanced stability and tool rigidity during operation.
• Suitable for CNC machine tools and lathes, offering versatility in manufacturing processes.

Applications:

• Ideal for machining internal features such as bores and recesses in various materials including metals and alloys.
• Widely used in industries such as aerospace, automotive, and general engineering for high-precision machining tasks.

Advantages:

• Offers superior machining precision and durability.
• Facilitates efficient and accurate internal turning operations.
• Compatible with a range of TNMG carbide inserts for versatile cutting solutions.

Package Includes:

• S18Q-STFNR16 Tool Holder
• Compatible Clamps, Pins, Screws, and Wrenches

Installation Instructions:

• Includes necessary accessories like screws and wrenches for easy setup and blade replacement.

5-Point Description:

1. Premium Quality: Made from alloy steel for durability and long-lasting performance.
2. Optimized Design: 95° cutting edge angle and 0° relief angle for precise internal turning.
3. Secure Clamping: S-type ensures stability during machining.
4. Versatile Compatibility: Supports a range of TNMG carbide inserts (TNMG160402, TNMG160404, etc.).
5. Easy Setup: Includes M3.5*13T screw, and T15 wrenches for convenient installation and maintenance.
