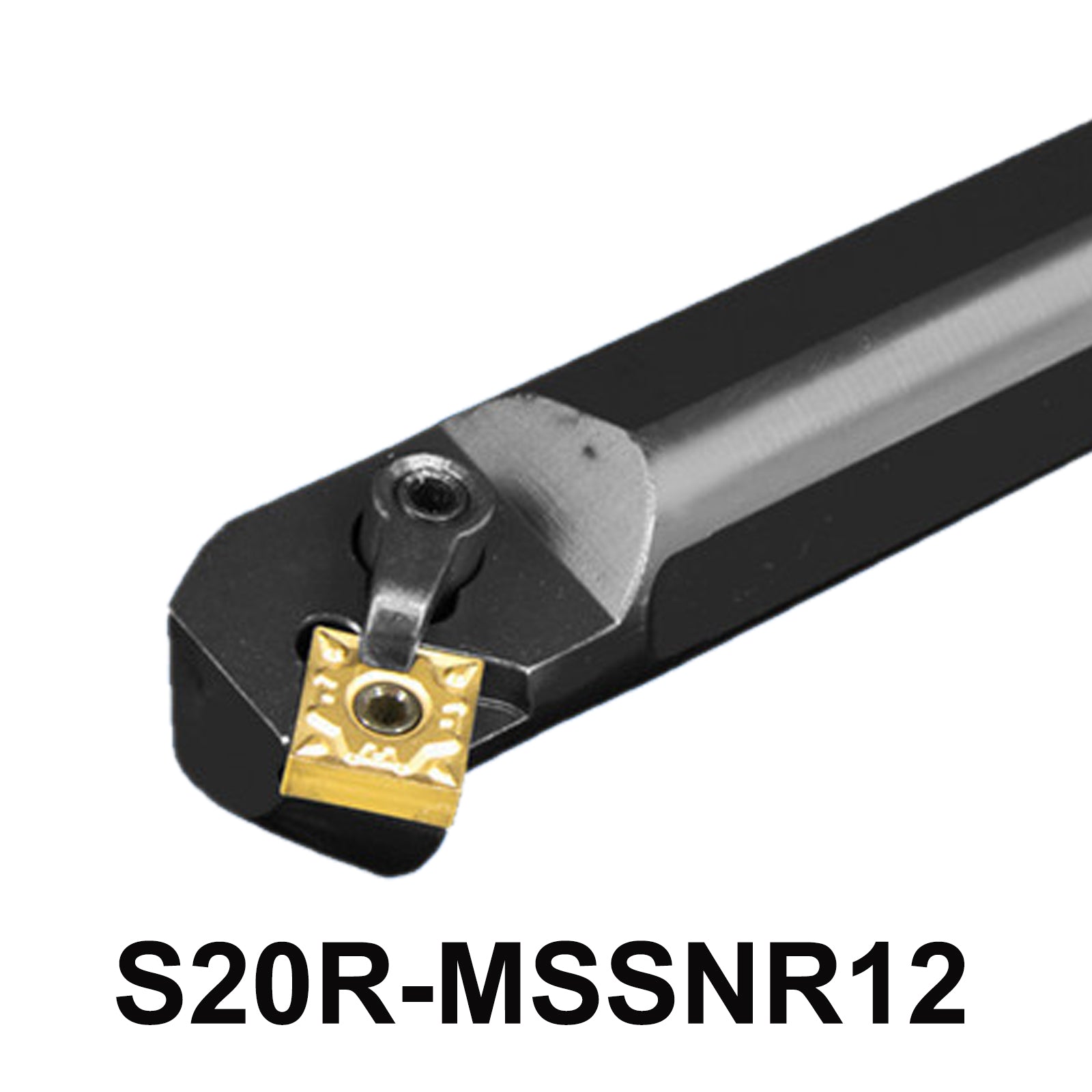

Product Name: S20R-MSSNR12 Right Tool Holder

Overview:The S20R-MSSNR12 CNC Boring Bar Tool Holder is a specialized tool designed for precision machining applications on CNC lathes and machine tools. It features a robust construction from high-quality alloy steel, This tool holder is equipped with a 45° tool cutting edge angle and a 0° relief angle, which enhances its ability to perform accurate internal turning and boring operations.

Application: Ideal for CNC machine tools and lathes, suitable for both roughing and finishing cuts in internal turning and boring tasks.

Main Features:

• Tool Cutting Edge Angle: 45°

• Relief Angle of Blade: 0°
• Diameter of handle: 20mm
• Total length: 200mm
• Length of cutting blade: 12mm
• Pin:CTM613
• Clamp:HL1810
• Screws:ML0620
• Wrench:L3.0
• Compatibility blade: SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434

Advantages:

• Robust alloy steel construction with a multi-lock system for enhanced stability and precision.
• Versatile design supports a wide range of carbide inserts for different machining needs.
• Comprehensive set of accessories included for immediate setup and usage.



5-Point Description:

1. Precision Machining Tool: The S20R-MSSNR12 CNC Boring Bar Tool Holder is engineered for precision machining operations on CNC lathes and machine tools. It features a tool cutting edge angle of 45° with a 0° relief angle, ensuring sharp and accurate cutting performance.

2. Durable Alloy Steel Construction: Crafted from high-quality alloy steel, this tool holder offers exceptional durability and resistance to wear and tear. It is designed to withstand the rigors of continuous use in industrial machining environments.

3. Versatile Compatibility with Carbide Inserts: Compatible with a variety of carbide inserts including SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434. This versatility allows for a wide range of machining applications and cutting tasks.

4. Secure Multi-Lock System: Equipped with an M-type multi-lock system, the S20R-MSSNR12 ensures a secure grip and stable tool holding during operation. This enhances precision and reduces the risk of tool displacement or vibration.

5. Ideal for CNC Machine Tools and Lathes: Specifically designed for use in CNC machine tools and lathes, this tool holder facilitates efficient internal turning and boring operations. It is suitable for both roughing and finishing cuts, making it a versatile choice for machinists and manufacturing professionals.
