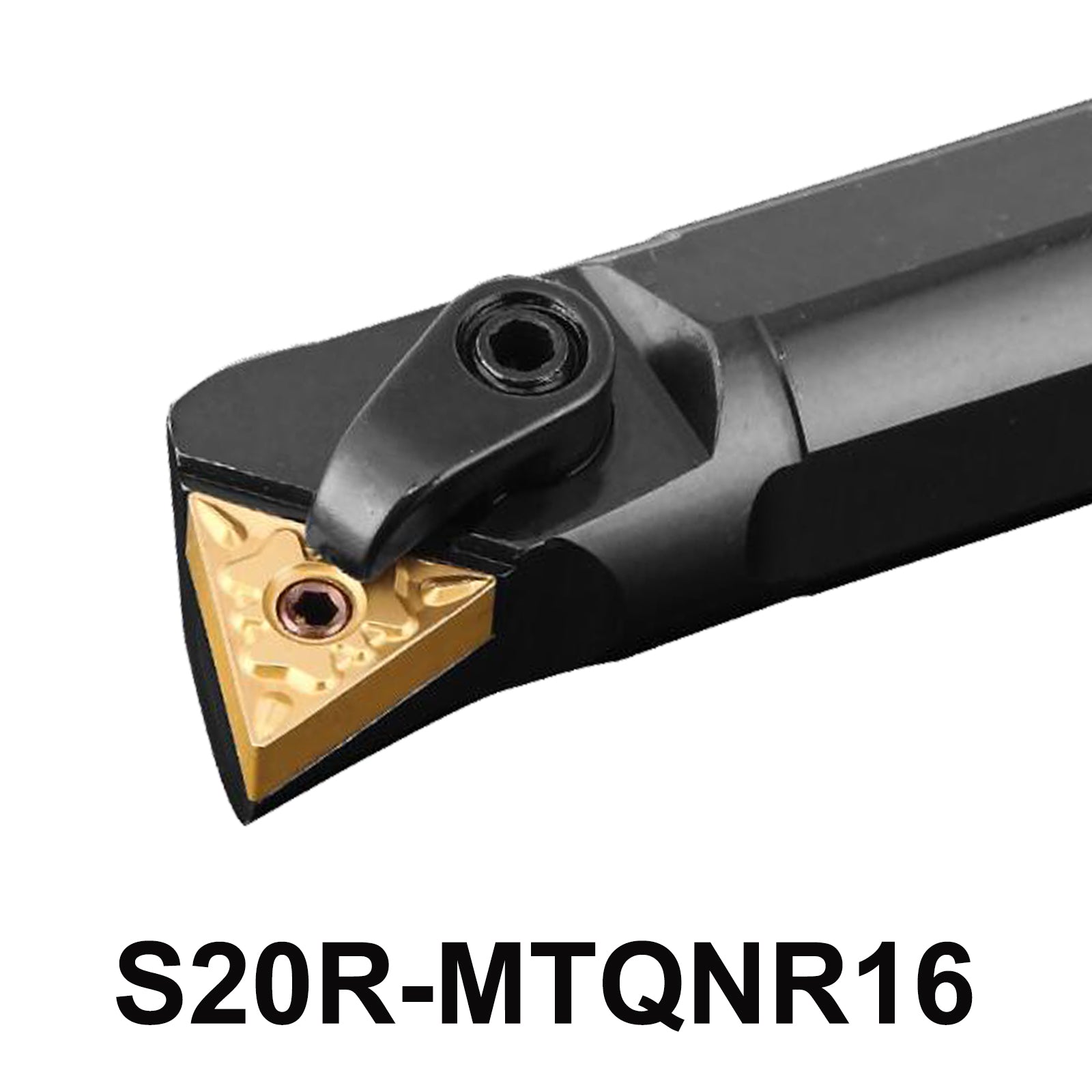

S20R-MTQNR16 Internal Boring Bar Tool Holder Multi-Lock System, 20x100mm
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S20R-MTQNR16 Internal Boring Bar Tool Holder boring bar for sale
-
Overview of S20R-MTQNR16
-
Specifications
-
Features of S20R-MTQNR16
-
Materials and Construction
-
Insert Compatibility
-
Applications
-
Advantages
-
Included Accessories
Overview:
- The S20R-MTQNR16 internal boring bar tool holder is designed for precision machining in CNC machine tools and lathes. It features a 105° cutting edge angle and is equipped with a robust M-type multi-lock system, ensuring stability and accuracy during operation.
Specifications:
- Tool Holder Type: Right-hand tool holder
- Tool Cutting Edge Angle: 105°
- Relief Angle of Blade: 0°
- Internal Turning Tools Holder Material: Alloy steel, M-type (multi-lock system)
- Model: S20R-MTQNR16
- Diameter of Handle: 20mm
- Total Length: 200mm
- Length of Cutting Blade: 16mm
- Pin: CTM511
- Clamp: HL1810
- Screw: ML0625
- Wrenches Included: L2.0, L3.0
- Compatible Blade Inserts (Blade Types): TNMG160402, TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333
5-Point Description:
-
Precision Machining: Optimized with a 105° cutting edge angle and 0° relief angle for precise internal turning operations.
-
Durable Material: Made from high-quality alloy steel, providing durability and reliability in machining applications.
-
Multi-Lock System: Features an M-type multi-lock system for secure clamping of TNMG series carbide inserts (TNMG160402, TNMG160404, etc.), reducing vibration and improving machining stability.
-
Versatile Application: Suitable for use in CNC machine tools and lathes, offering versatility across a range of materials.
-
Comprehensive Set: Includes CTM511 pin, HL1810 clamp, ML0625 screw, and L2.0/L3.0 wrenches, ensuring convenience in setup and maintenance.
Applications：
- Internal Turning: Ideal for machining internal surfaces of workpieces with precision and efficiency.
- Boring Operations: Suitable for boring operations where accuracy and stability are critical.
- CNC Machining: Designed to work seamlessly with CNC machines, ensuring consistent performance in high-precision environments.
Advantages:
- Precision Machining: The tool holder features a 105° cutting edge angle and zero-degree relief angle, enhancing cutting performance and surface finish.
- Durability: Constructed from high-quality alloy steel, the tool holder offers durability and reliability, even under heavy machining conditions.
- Secure Clamping: Equipped with an M-type multi-lock system, it securely holds TNMG series carbide inserts (TNMG160402, TNMG160404, etc.), minimizing insert movement and ensuring stability during machining.
- Versatility: Compatible with a range of TNMG inserts, allowing versatility across various materials including steels, stainless steels, and non-ferrous metals.
- Ease of Use: Includes CTM511 pin, HL1810 clamp, ML0625 screw, and L2.0/L3.0 wrenches for convenient setup and maintenance, reducing downtime and optimizing workflow efficiency.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
