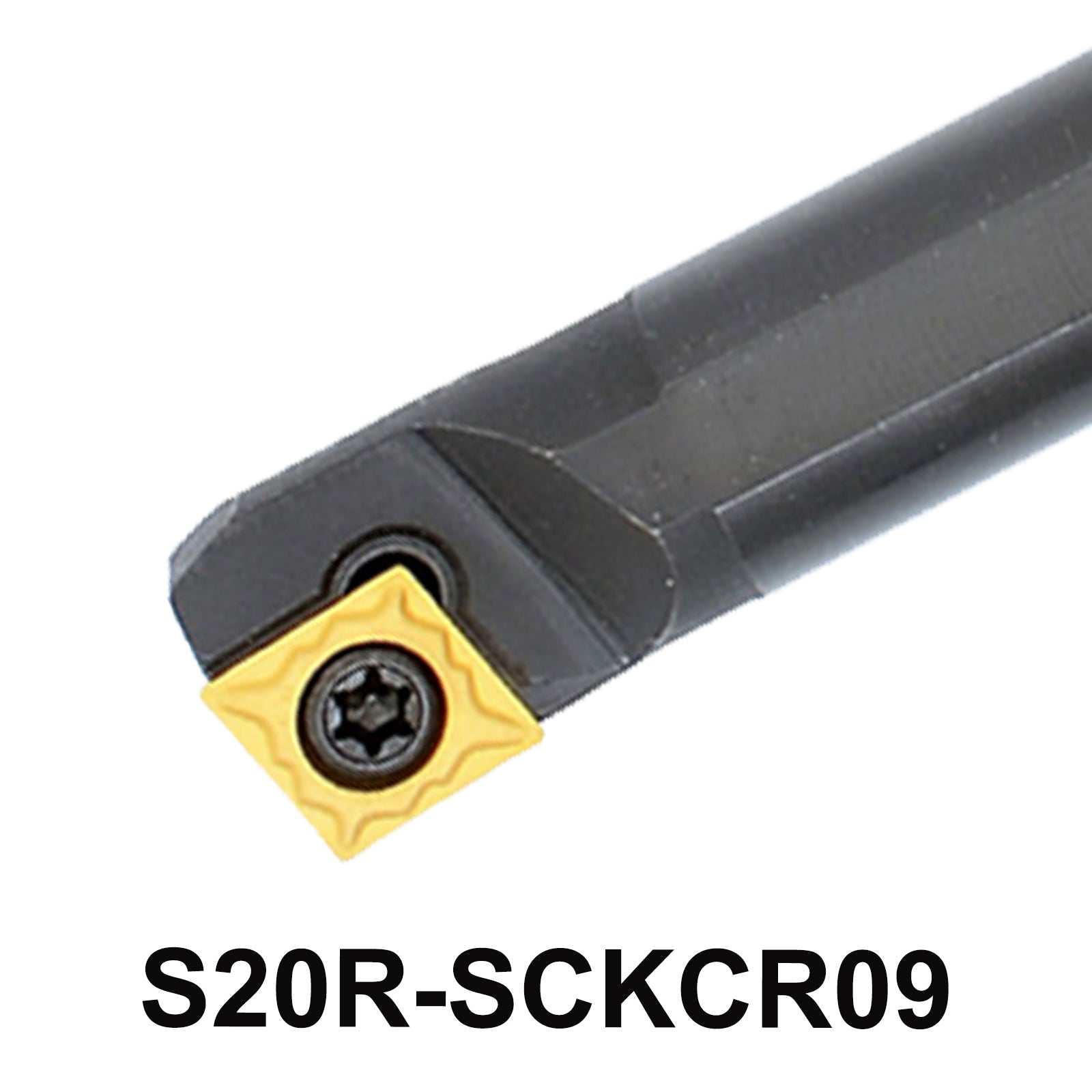

S20R-SCKCR09 CNC Boring Bar: High-Performance Tool Holder for Precision Machining

Overview of S20R-SCKCR09 CNC Boring Bar

• Specifications and Dimensions

• Applications of S20R-SCKCR09

• Advantages and Reasons to Choose S20R-SCKCR09

Overview: Enhance your CNC machining capabilities with the S20R-SCKCR09 CNC boring bar tool holder. Crafted from durable alloy steel, this tool holder is designed for precise internal turning operations. It features a 75° cutting edge angle and 7° blade relief angle, ensuring efficient cutting performance and durability. Compatible with a range of CCMT carbide inserts including CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, and CCMT3(2.5)2, it offers versatility across various machining applications.

Application: Ideal for CNC machine tools and lathes, suitable for internal turning tasks in industries including automotive, aerospace, and general manufacturing.

Detail Page:

• Tool Holder Type: CNC Boring Bar Holder
• Tool Cutting Edge Angle: 75°
• Relief Angle of Blade: 7°
• Material: Alloy Steel
• Model: S20R-SCKCR09
• Handle Diameter: 20mm
• Total Length: 200mm
• Length of Cutting Blade: 9mm
• Screw: M4*8
• Wrench: T15
• Blade Compatibility: CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5 )2

Advantages:

1. Precision Machining: 75° cutting edge angle and 7° blade relief angle for precise internal turning.
2. Durability: Made from robust alloy steel for long-lasting performance in demanding environments.
3. Versatility: Compatible with multiple CCMT carbide inserts, offering flexibility across various materials.
4. Easy Installation: Includes M4*8 screw and T15 wrench for straightforward setup on CNC lathes.
5. Wide Application: Perfect for achieving high-quality results in industries requiring accurate internal turning operations.

Reasons to Choose S20R-SCKCR09:

• Superior material quality and craftsmanship.
• Designed for precise and efficient internal turning tasks.
• Compatible with a variety of carbide inserts for versatility.
• Reliable performance and durability.
• Trusted choice for professionals in CNC machining.

5-point Product Description:

1. Precision Machining Powerhouse:
   The S20R-SCKCR09 CNC boring bar is engineered from high-grade alloy steel, combining durability with precise machining capabilities. Its 75° cutting edge angle and 7° relief angle ensure efficient chip removal and superior surface finishes.

2. Versatile Tool Holder:
   Designed for internal turning operations, this tool holder accommodates a range of CCMT inserts including CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, and CCMT3(2.5)2. It offers flexibility to meet diverse machining needs.

3. Robust Construction:
   Featuring a 20mm diameter handle and a total length of 200mm, the S20R-SCKCR09 is built to withstand rigorous machining environments. It includes a sturdy M4*8 screw and a T15 wrench for secure insert installation.

4. Enhanced Performance:
   This tool excels in improving machining accuracy and productivity. It minimizes vibrations and cutting forces, resulting in longer tool life and reduced downtime, ultimately boosting operational efficiency.

5. Application Excellence:
   Ideal for use in CNC machining centers and lathes, the S20R-SCKCR09 is tailored for professionals seeking reliable performance in industries such as automotive, aerospace, and general engineering.
