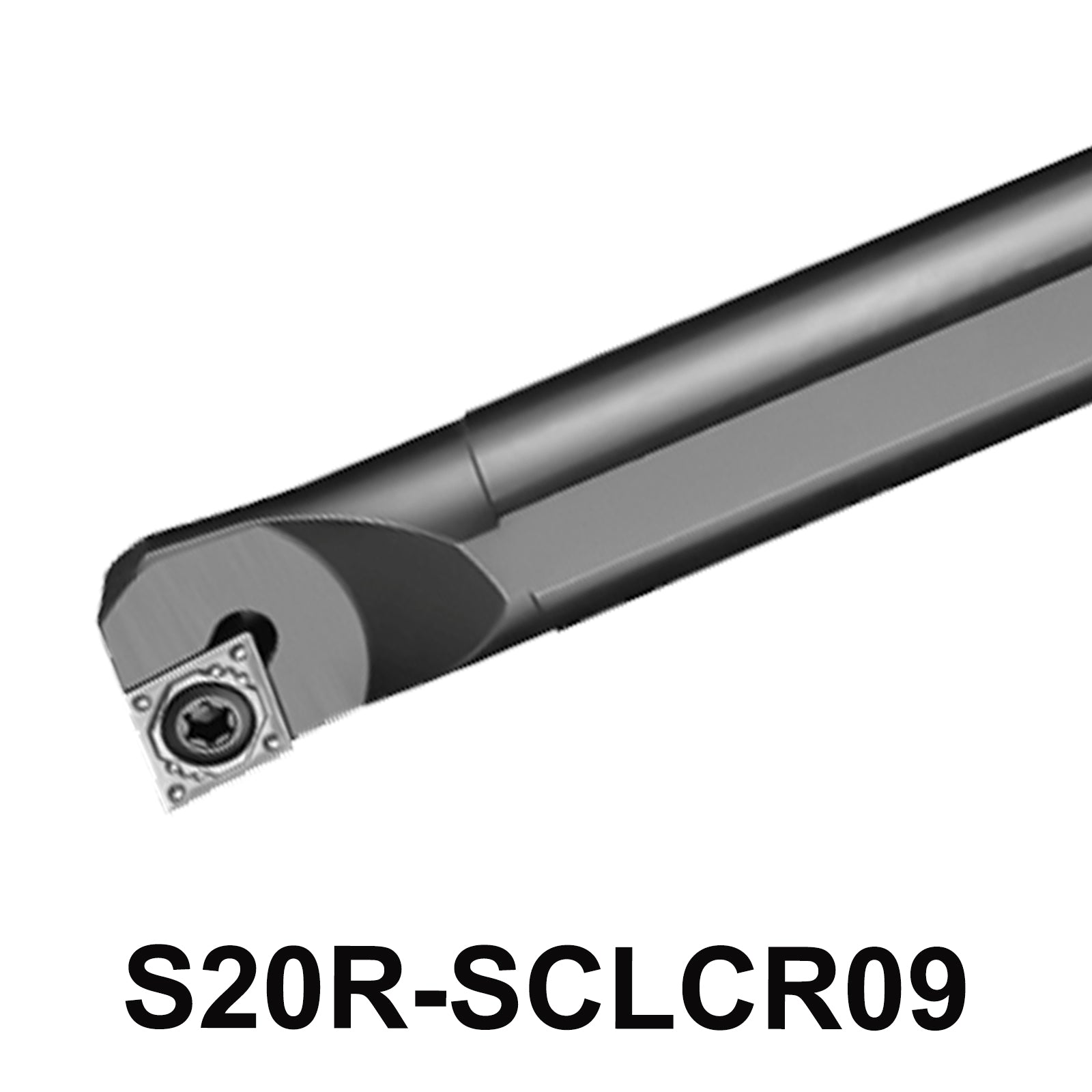

S20R-SCLCR09 CNC Internal Boring Bar Tool Holder S20R SCLCR09 boring bar for lathe

Applications, Advantages, and Reasons to Choose

Suitable for various CNC machining operations

Compatible with a range of CCMT inserts.

95° cutting edge angle and 7° relief angle

Application

Ideal for internal turning in CNC machine tools and lathes, providing accurate and reliable boring operations.

Overview

The S20R-SCLCR09 CNC internal boring bar tool holder is designed for high-precision internal turning. Featuring a 95° cutting edge angle and a 7° relief angle, it is constructed from durable alloy steel. The tool holder has a 20mm handle diameter and a total length of 200mm, accommodating various CCMT carbide inserts for versatile applications.

Specifications:

• Model: S20R-SCLCR09
• Material: Alloy Steel
• Type: S-Type (Screw-type)
• Diameter of Handle: 20mm
• Total Length: 200mm
• Length of Cutting Blade: 9mm
• Screw: M4*8
• Wrench: T15
• Compatible Blade Inserts: CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5)2

Advantages

• Precision: Ensures fine, accurate cuts.
• Durability: Made from high-quality alloy steel.
• Flexibility: Compatible with a range of CCMT inserts.
• Convenience: Comes with installation tools.
• Efficiency: Designed for effective internal machining tasks.

Choosing Reasons

• Precision Engineering: Achieves high accuracy in internal turning.
• Quality Materials: Durable alloy steel construction.
• Versatility: Compatible with various carbide inserts.
• Ease of Use: Includes essential tools for quick setup.
• Performance: Optimized for CNC lathes and machine tools, enhancing productivity.

5-Point Description

1. High Precision: 95° cutting edge angle and 7° relief angle for accurate internal boring.
2. Robust Construction: Crafted from alloy steel for enhanced durability.
3. Versatile Compatibility: Works with multiple CCMT carbide inserts.
4. Easy Installation: Includes M4*8 screw and T15 wrench for hassle-free setup.
5. Enhanced Performance: 200mm total length and 9mm cutting blade for effective internal machining.

Package Includes:

• S20R-SCLCR09 Tool Holder
• Compatible Screws, and Wrenches
