Overview

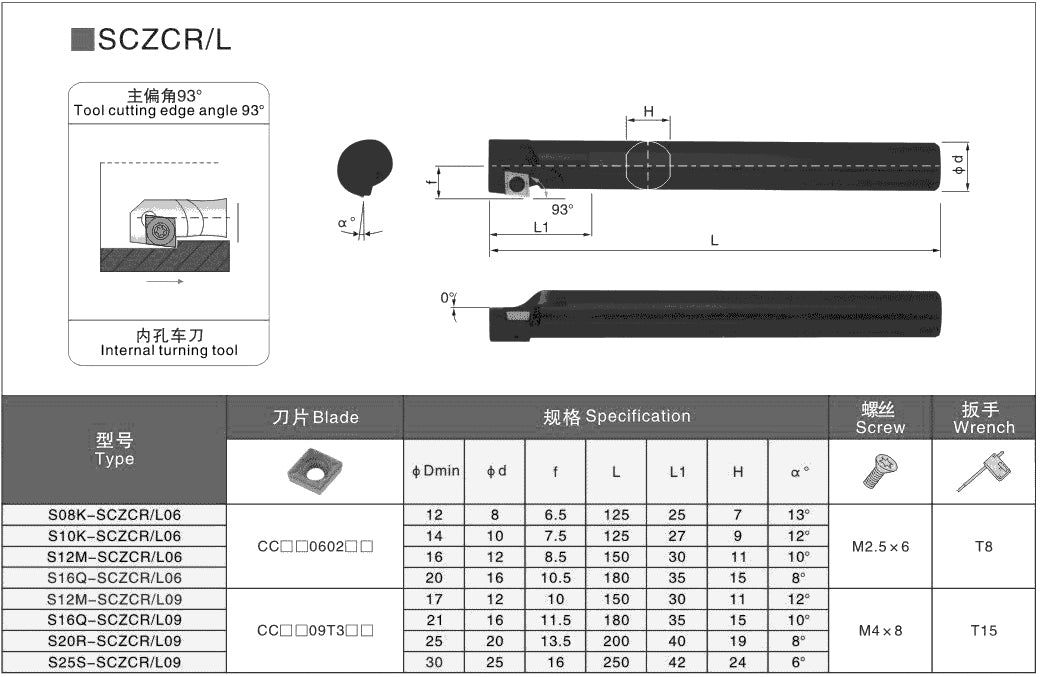

The S20R-SCZCL09 designed for CNC machine tools and lathes. With a 93° cutting edge angle and a 7° blade relief angle, it ensures precise internal turning and boring. Constructed from high-strength alloy steel, this tool holder is built for durability and reliable performance. It features a 20mm handle diameter, a total length of 200mm, and a cutting blade length of 9mm. The tool is equipped with an M4*8 screw and T15 wrench, compatible with a range of blades including CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, and CCMT3(2.5)2. Ideal for high-precision machining tasks in various CNC applications.

Detail Page

• Material: Alloy Steel
• Type: S-Type (Screw-type)

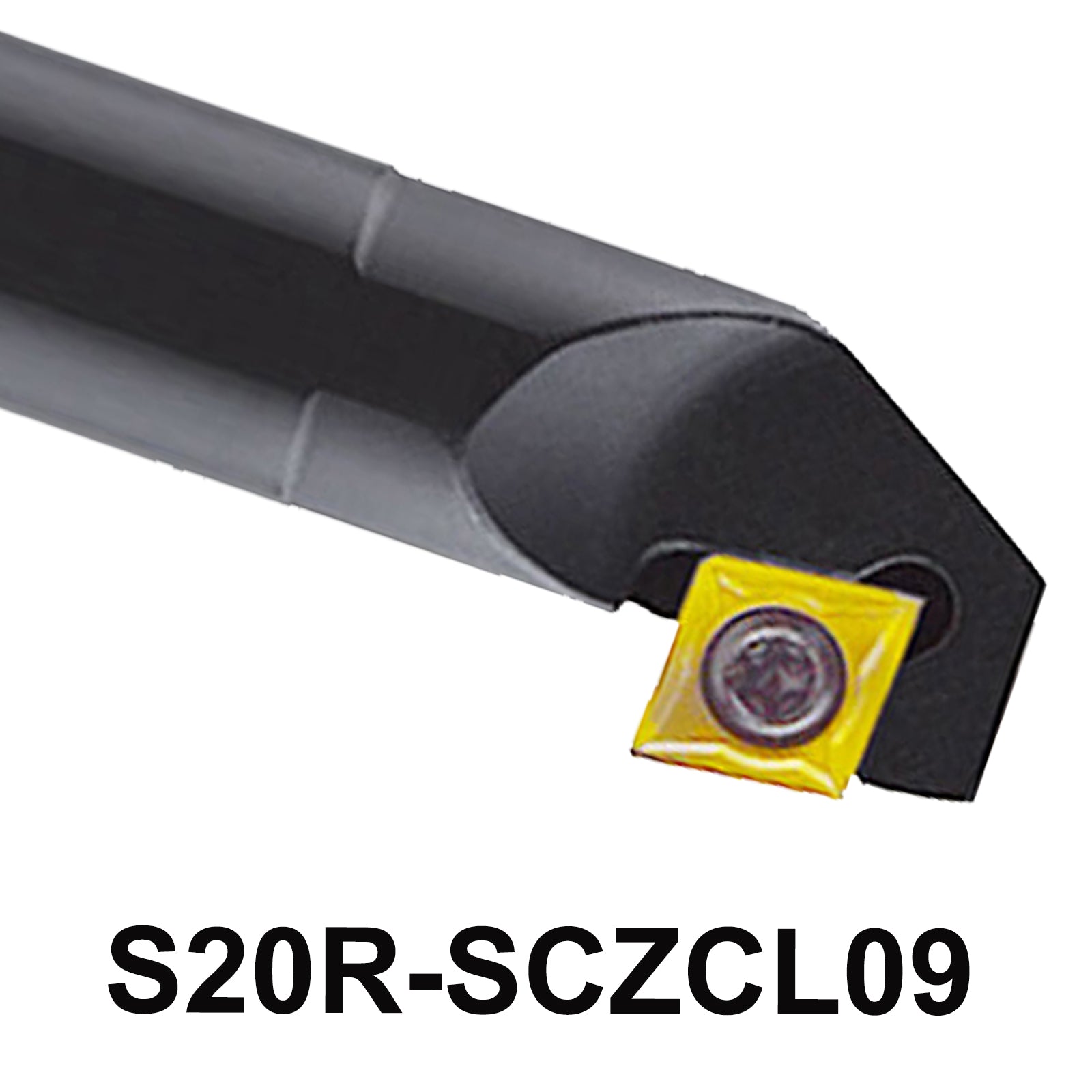

• Model: S20R-SCZCL09
• Handle Diameter: 20mm
• Total Length: 200mm
• Cutting Blade Length: 9mm
• Included Accessories: M4*8 Screw, T15 Wrench
• Compatible Inserts: CCMT09T302,CCMT09T304,CCMT09T308,CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5)2

Applications:

• CNC Machine Tools: Ideal for precise internal boring operations.
• CNC Lathes: Perfect for versatile internal turning tasks.
• Boring Bar Sets: Enhances performance and accuracy in boring applications.

Advantages:

1. Precision Engineering: Achieve accurate and clean internal cuts with the 93° cutting edge angle.
2. Versatile Compatibility: Supports a range of carbide inserts for flexible use in different projects.
3. Durable Construction: Crafted from high-quality alloy steel for long-lasting performance.
4. Efficient Operation: The screw-type design allows for quick and easy adjustments.
5. Comprehensive Use: Suitable for various CNC machine tools and lathes, enhancing your machining capabilities.

Precision CNC Internal Boring Bar Tool Holder - S20R-SCZCL09 S20R SCZCL09 Internal Turning Tool holder

• Advanced Internal Boring with Optimal Cutting Edge Angle

• Ideal for CNC Machine Tools and Lathes

• Durable Alloy Steel Construction for Enhanced Longevity

• Achieve Superior Accuracy with 93° Cutting Edge Relief

• Effortless Adjustments with Screw-Type Design

• Compatibility with Multiple CCMT Cutting Inserts

5-point description

1. Precision Cutting Performance: Features a 93° cutting edge angle and a 7° relief angle, designed to provide accurate internal boring and high-quality finishes in various machining tasks.

2. High-Quality Construction: Made from durable alloy steel, ensuring robust performance and longevity even under rigorous CNC machining conditions.

3. Versatile Insert Compatibility: Supports a range of carbide inserts including CCMT09T302, CCMT09T304, CCMT09T308, and others, offering flexibility for different internal turning applications.

4. User-Friendly Design: Equipped with a screw-type adjustment mechanism and an M4*8 screw with T15 wrench for easy and secure setup and maintenance.

5. Ideal for CNC Machines: Perfectly suited for CNC machine tools and lathes, enhancing precision and efficiency in internal boring and turning operations.
