Overview

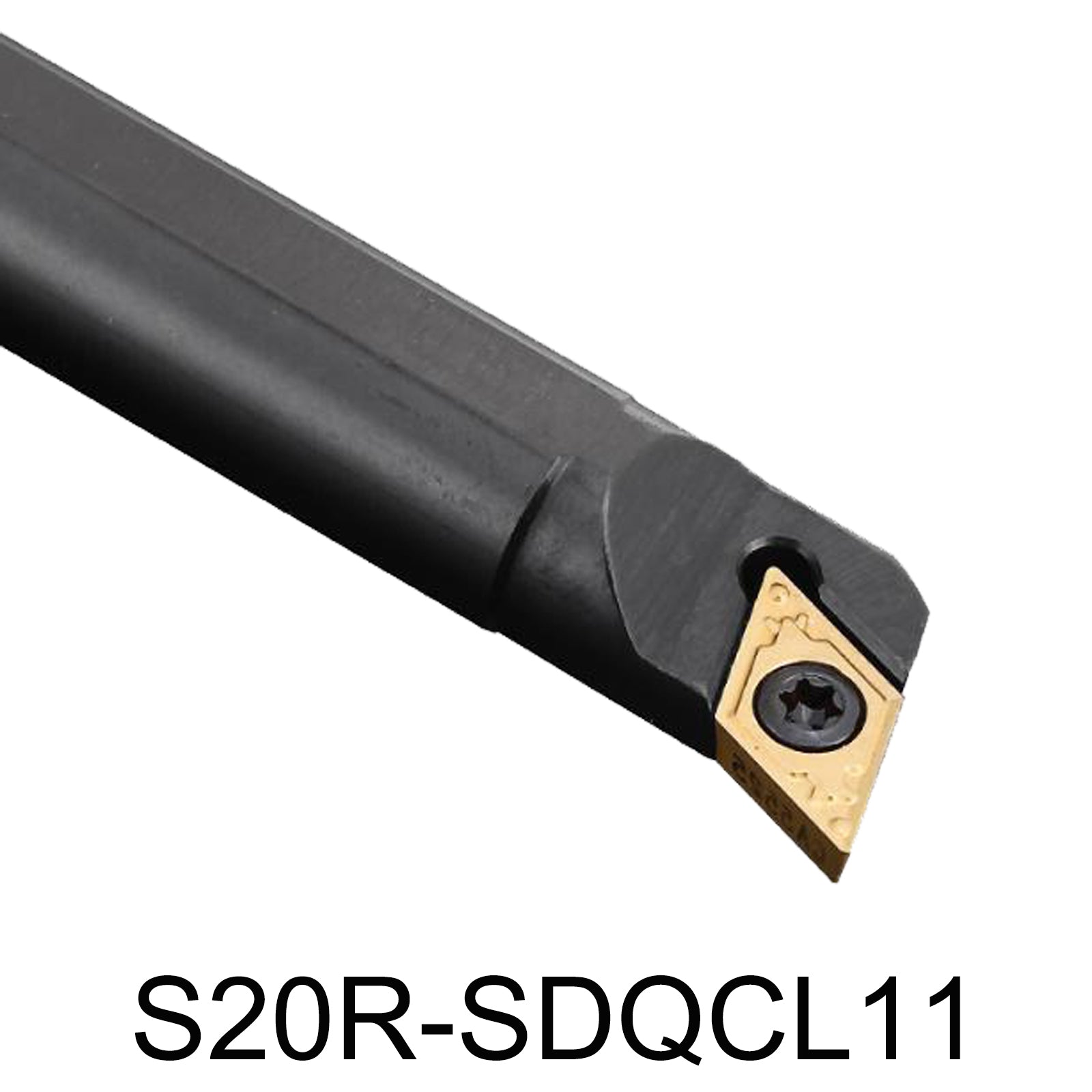

The S20R-SDQCL11 Mechanical Lathe CNC Internal Boring Bar Tool Holder is engineered for precision and durability in CNC lathe operations. With a cutting edge angle of 107.5° and a 7° relief angle, it ensures accurate and efficient internal boring. Constructed from high-quality alloy steel, this tool holder is designed for extended service life and dependable performance. The 20mm handle diameter and 200mm total length provide superior control and reach, while the S-type screw design ensures secure mounting. Compatible with a variety of DCMT inserts, including DCMT11T302 and DCMT3(2.5)1, it offers flexibility for different machining tasks. The package includes M4*8 screws and a T15 wrench, making setup straightforward and hassle-free.

Key Features

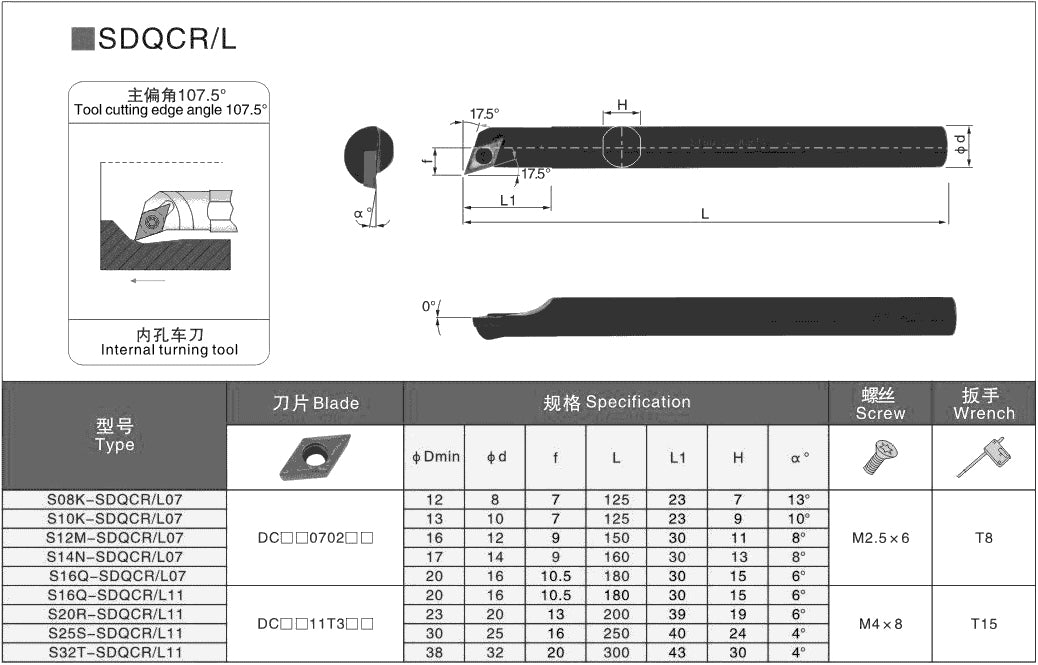

• Cutting Edge Angle: 107.5°
• Relief Angle: 7°
• Material: Alloy Steel
• Handle Diameter: 20mm
• Total Length: 200mm
• Blade Length: 11mm
• Compatible Inserts: DCMT11T302, DCMT11T304, DCMT11T308, DCMT3(2.5)0, DCMT3(2.5)1, DCMT3(2.5)2
• Includes: M4*8 Screws, T15 Wrench

Reasons to Choose

• Reliable Precision: Proven to deliver consistent accuracy for internal boring operations.
• Built to Last: Durable construction for dependable performance over time.
• Versatility: Adaptable to various machining tasks with multiple compatible inserts.
• Ease of Use: Includes all required accessories for a hassle-free setup and operation.

Applications

• CNC Machine Tools: Perfect for precision internal boring and turning tasks in CNC lathes.
• Internal Boring: Ideal for detailed internal cutting across a range of materials.
• Versatile Machining: Compatible with different carbide inserts for various machining needs.

Advantages

• High Precision: Ensures accurate and efficient internal boring with minimal effort.
• Robust and Durable: Alloy steel construction withstands rigorous use for extended tool life.
• Flexible Use: Supports a range of carbide inserts, adapting to different machining requirements.
• User-Friendly: Comes with necessary components for easy installation and setup.

Elevate Your CNC Machining with the S20R-SDQCL11 S20R-SDQCL11 Internal Boring Bar Tool Holder

• 107.5° Cutting Edge Angle for Optimal Accuracy

• 7° Relief Angle for Efficient Internal Boring

• 20mm Handle Diameter for Enhanced Control

• Compatible with Multiple DCMT Inserts

• Robust Construction and Versatile Functionality

• Includes M4*8 Screws and T15 Wrench for Easy Installation

5-Point Description

1. Precision Engineering: Achieve accurate internal boring with a 107.5° cutting edge angle and 7° relief angle.
2. Durable Construction: Alloy steel design ensures long-lasting performance and reliability.
3. Versatile Compatibility: Accommodates various DCMT inserts, including DCMT11T302 and DCMT3(2.5)1.
4. Enhanced Control: The 20mm handle diameter and 200mm total length provide superior handling and reach.
5. Convenient Installation: Includes M4*8 screws and a T15 wrench for straightforward setup.
