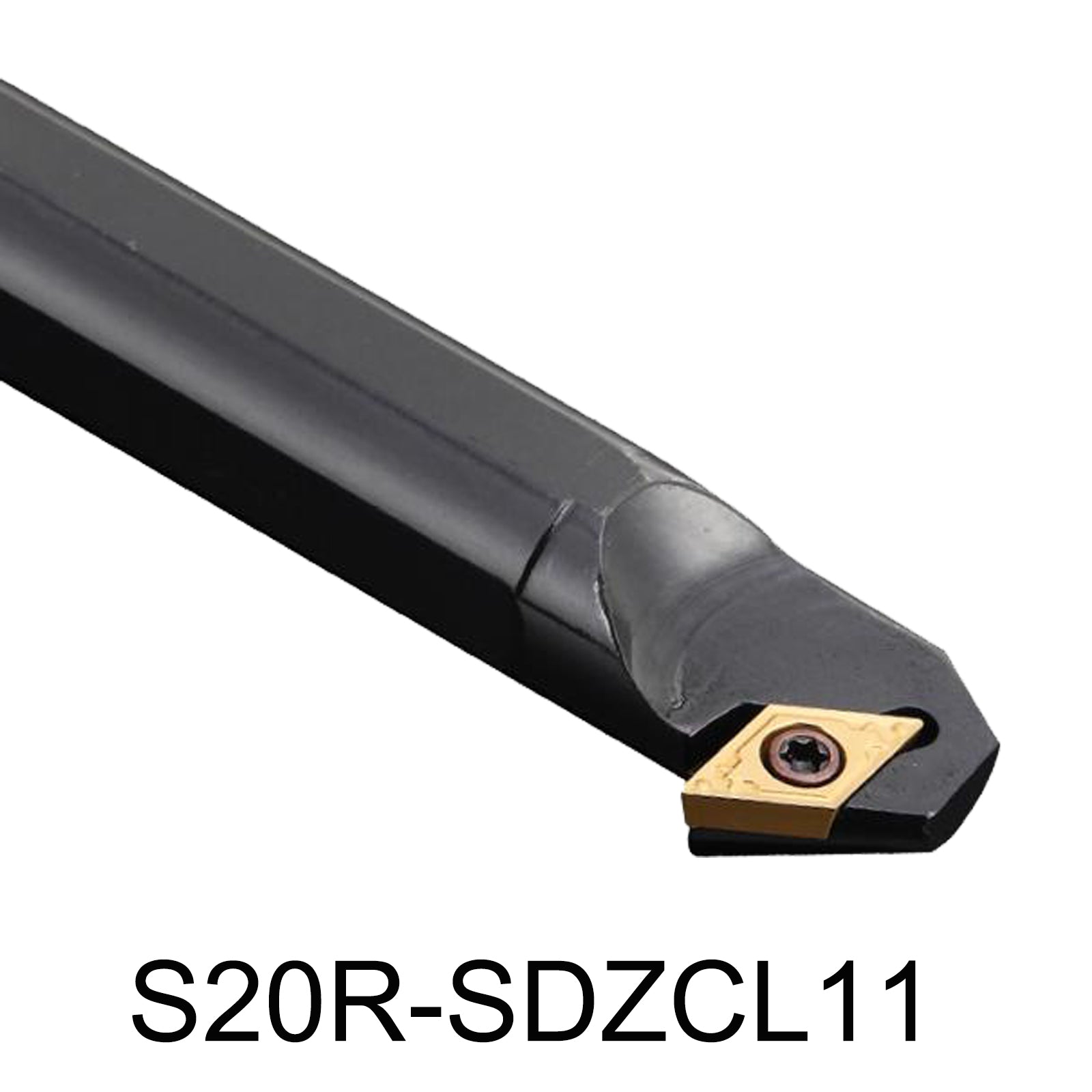

S20R-SDZCL11 CNC Internal Boring Bar Tool Holder | Precision Mechanical Lathe Holder with 93° Cutting Edge

$19.91 USD

30-Day Free Returns

Free Worldwide Shipping

american expressmasterpaypalvisaapple paygoogle payshopify pay
Order in the next [totalHours] hours %M minutes to get it between and
SKU: S20R-SDZCL11
Description

Overview:

The S20R-SDZCL11 Mechanical Lathe CNC Internal Boring Bar Tool Holder is a robust and precise tool designed for internal turning operations in CNC machines. Featuring a 93° cutting edge angle and a relief angle of 7°, this tool holder is made from high-quality alloy steel and is compatible with a range of DCMT blades. Its S-type screw mechanism ensures secure blade mounting, while the tool’s ergonomic design provides excellent stability and performance.

Key Features

  • Model:S20R-SDZCL11
  • Cutting Edge Angle: 93°
  • Relief Angle:
  • Material: Alloy Steel
  • Handle Diameter: 20mm
  • Total Length: 200mm
  • Blade Length: 11mm
  • Compatible Inserts: DCMT11T302,DCMT11T304,DCMT11T308,DCMT11T312 DCMT3(2.5)0, DCMT3(2.5)1,DCMT3(2.5)2,DCMT3(2.5)3
  • Includes: M4*8 Screws, T15 Wrench

S20R-SDZCL11 boring bar holder lathe S20R SDZCL11 CNC Internal Boring Bar Tool Holder for Precision Machining

  • Superior Cutting Precision with 93° Edge Angle

  • Key Features of the S20R-SDZCL11 Tool Holder

  • Benefits of Using the S20R-SDZCL11 Tool Holder



  • Precision Cutting with Reliable Internal Turning

  • Durable Alloy Steel Build for Long-Lasting Use

  • Versatility with Multiple Blade Compatibility

  • Optimized Relief Angle of 7° for Enhanced Performance

5-Point Description:

  1. Precision Cutting Edge: 93° cutting edge angle with a 7° relief for accurate internal turning.
  2. Alloy Steel Construction: Ensures durability and resistance to wear for extended tool life.
  3. Ergonomic Design: 20mm diameter handle and 200mm total length provide stability and ease of use.
  4. Versatile Compatibility: Supports various DCMT blades for flexible cutting applications.
  5. Secure Blade Mounting: S-type screw mechanism with included M4*8 screw and T15 wrench for reliable blade installation.

Application:

  • CNC machine tools
  • CNC lathes
  • Boring bars
  • Internal turning operations

Advantages:

  • High Precision: 93° cutting edge and relief angle of 7° for superior internal turning accuracy.
  • Durable Build: Alloy steel construction withstands high wear and tear, extending tool life.
  • Versatile Use: Compatible with a range of DCMT blades, enhancing operational flexibility.
