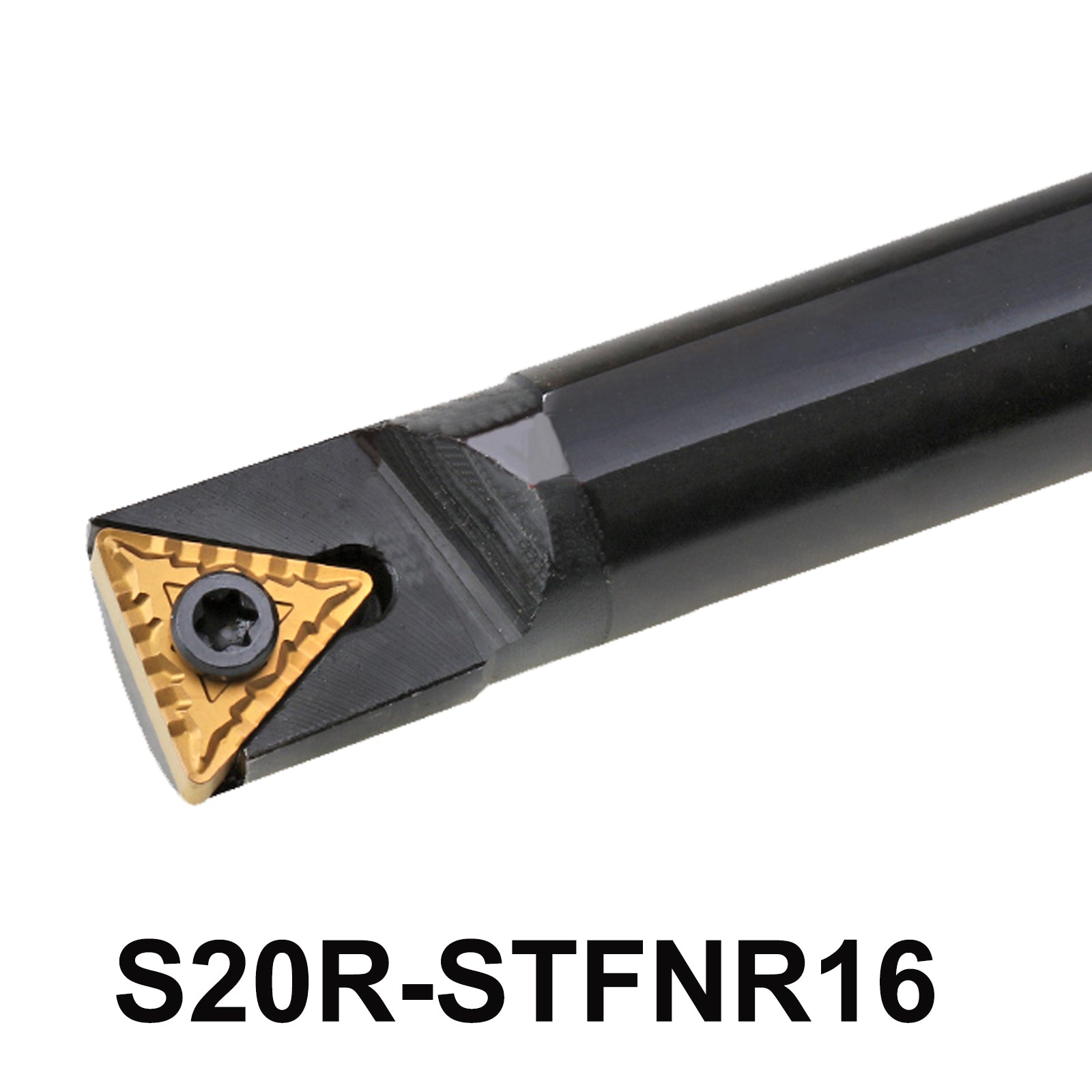

S20R-STFNR16 Internal Boring Bar Tool Holder | CNC Lathe Cutter

• Overview

• Specifications

• Applications

• Advantages

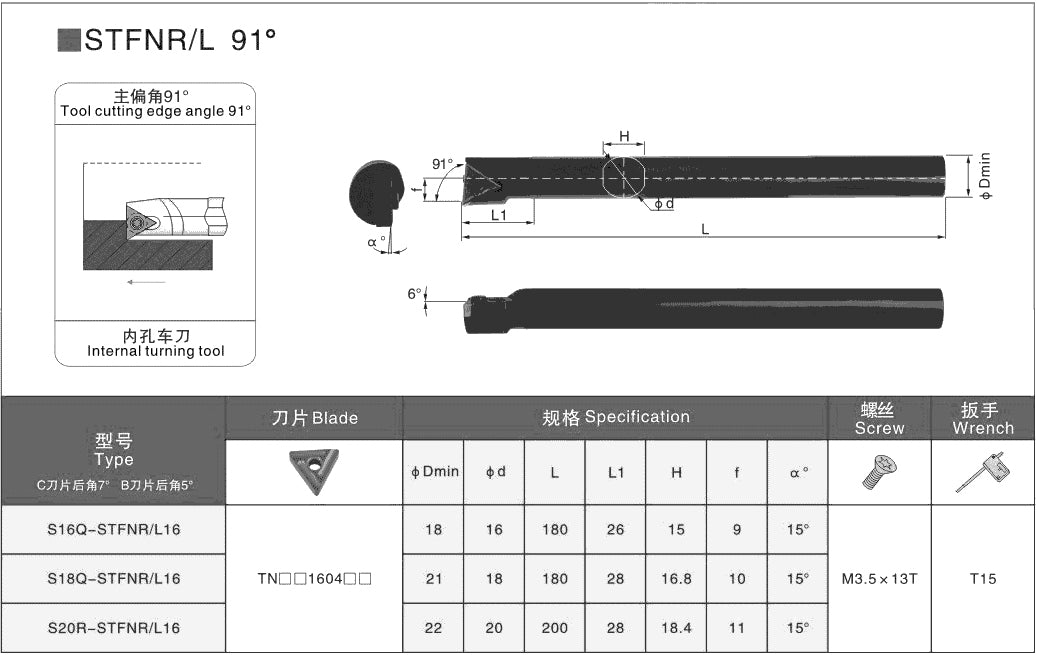

Specifications

• Diameter of Handle: 20mm
• Total Length: 200mm
• Length of Cutting Blade: 16mm
• Material: Alloy Steel
• Tool Cutting Edge Angle: 91°
• Relief Angle of Blade: 0°
• Model: S20R-STFNR16
• Screw: M3.5*13T
• Wrench: T15
• Compatible Blade Inserts: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333

Overview:

Brief introduction to the S20R-STFNR16 internal boring bar tool holder, highlighting its main features and benefits.

Applications:

• Suitable for use in CNC machine tools and CNC lathes.
• Ideal for boring bar setups in machining operations.
• Designed for precision cutting with carbide inserts.

Advantages:

• S-type for secure tool holding.
• Durable alloy steel construction for longevity.
• Precise cutting edge angle of 91° enhances cutting performance.
• Versatile use with a range of TNMG blade inserts.
• Optimized design for efficient internal turning operations.

5-Point Description:

1. Precision Tool Holder: The S20R-STFNR16 is a high-precision internal boring bar tool holder designed for CNC lathes and machining centers.

2. Durable Construction: Made from robust alloy steel, this tool holder ensures durability and long-lasting performance in machining operations.

3. Optimized Cutting Performance: Features a 91° cutting edge angle and zero relief angle, enhancing precision and efficiency during internal turning tasks.

4. Versatile Compatibility: Compatible with a range of TNMG carbide inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), making it adaptable for various machining applications.

5. Secure S-type: Utilizes an S-type system for secure clamping and stable tool holding, minimizing vibrations and ensuring accurate machining results.
