• 60° Cutting Edge Angle for Precision Internal Machining

• Alloy Steel Construction for Durability and Reliability

• Versatile Compatibility with Multiple Blade Types

• Optimal Relief Angle of 7° for Efficient Cutting

• Robust S-Type Screw Design for Secure Blade Mounting

• 200mm Total Length for Enhanced Reach and Flexibility

Product Overview

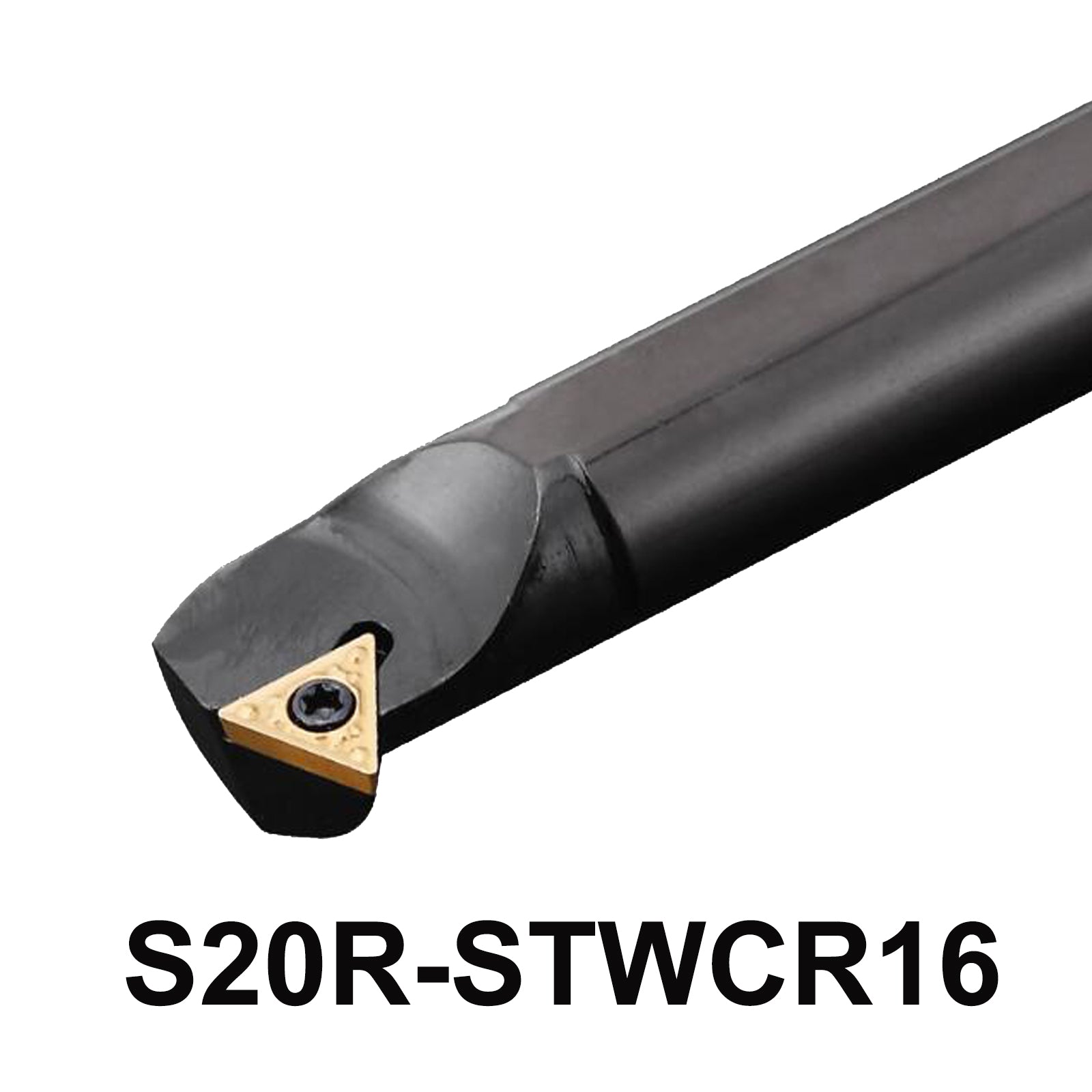

Elevate your CNC machining capabilities with the S20R-STWCR16 internal boring bar tool holder, meticulously designed for precision and durability. Featuring a 60° cutting edge angle and a 7° relief angle, this tool holder ensures accurate internal turning with minimal cutting resistance. Constructed from high-quality alloy steel, it provides exceptional strength and longevity, making it an ideal choice for demanding machining tasks.

Features and Specifications

• Model:  S20R-STWCR16
• 95° cutting edge angle and 7° relief angle.
• Material:  alloy steel
• Type: S-Type (Screw-type)
• Handle Diameter: 20mm
• Total Length: 200mm
• Cutting Blade Length: 16mm
• Screw Size: M4*10
• Wrench: T15
• Compatible Blades: TCMT16T304,TCMT16T308,TCMT3(2.5)1,TCMT3(2.5)2

Package Includes:

• S20R-STWCR16  Tool Holder
• Compatible Screws, and Wrenches

5-Point Description

1. Precision Cutting Edge: 60° angle ensures accurate and efficient internal machining.
2. Efficient Relief Angle: 7° relief angle minimizes cutting resistance for smoother operations.
3. Alloy Steel Construction: Provides exceptional strength and durability for long-term use.
4. S-Type Screw Design: Securely mounts blades to prevent slipping and ensure stable cutting.
5. Extended Reach: 200mm total length offers flexibility and enhanced reach in various machining tasks.
