BEYOND S20R-SVQBR11 Boring Bar Holder Lathe S20R SVQBR11 SVQBR 11 Boring Bar CNC Lathe Cutter Machine  Carbide Inserts VBMT1103 VBMT110302

• S20R-SVQBR11 Information Overview

• Overview

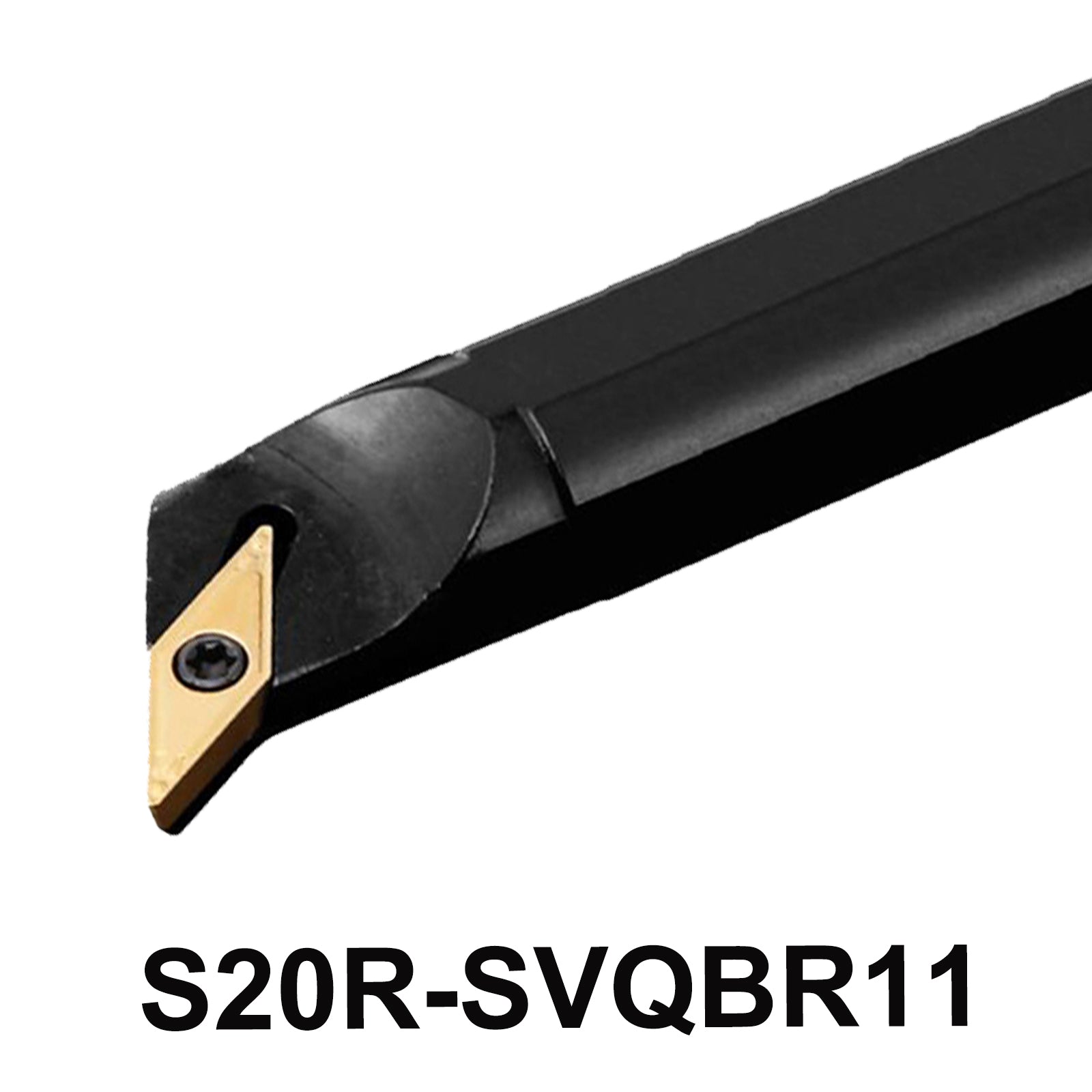

Introducing the S20R-SVQBR11 Mechanical Lathe CNC Internal Boring Bar Tool Holder, crafted for precision and durability in CNC machining. Engineered with an optimal cutting edge angle of 117.5° and a blade relief angle of 5°, this tool holder is made from high-grade alloy steel and features a screw-type S-design. Ideal for internal turning and boring operations, it ensures superior performance with its robust construction and compatibility with various carbide inserts.

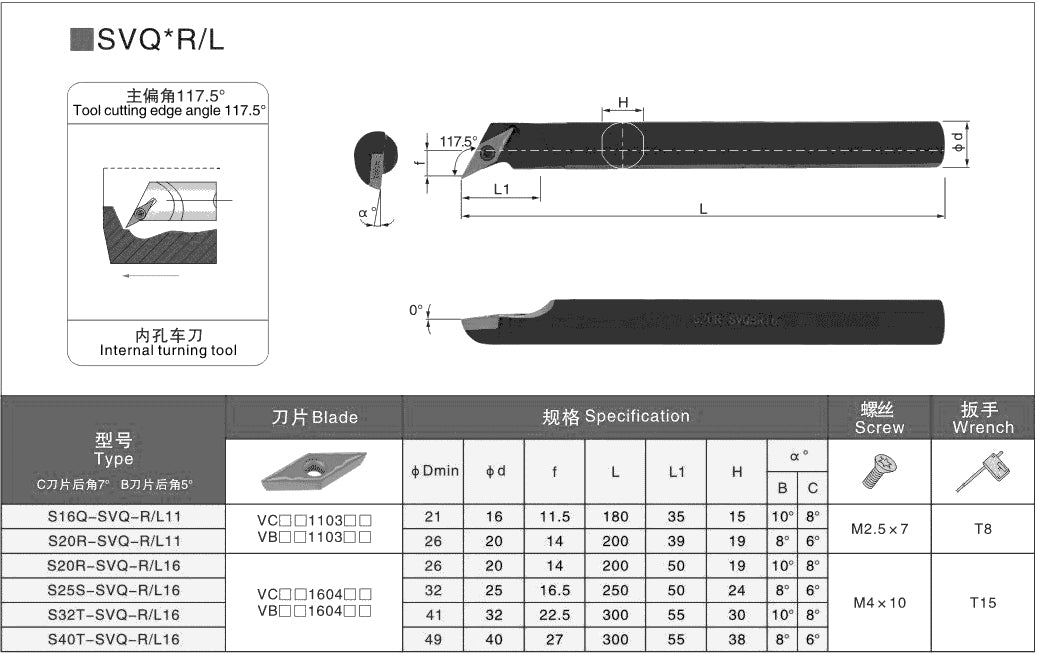

• Dimensions and Specifications of S20R-SVQBR11 Boring Bar Holder Lathe

• Features and Specifications

  • Model: S20R-SVQBR11
  • Package Includes:S20R-SVQBR11 Tool Holder and compatible Screws, and Wrenches
  • 117.5° cutting edge angle and 5° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 20mm
  • Total Length: 200mm
  • Cutting Blade Length: 11mm
  • Screw Size: M2.5*7
  • Wrench: T8
  • Compatible Blades: VBMT110302 VBMT110304 VBMT110308

• 5-Point Description

1. Precision Engineering: Features a cutting edge angle of 117.5° and a blade relief angle of 5° for optimal cutting performance.

2. Durable Material: Constructed from high-quality alloy steel, ensuring long-lasting durability and reliability.

3. Versatile Use: Suitable for CNC machine tools, CNC lathes, and internal boring operations, enhancing machining flexibility.

4. Efficient Design: Includes a 20mm handle diameter, 200mm total length, and M2.5*7 screw for secure and precise tool adjustments.

5. Compatibility: Works seamlessly with carbide inserts VBMT110302, VBMT110304, and VBMT110308 for diverse cutting needs.
