BEYOND S20R-SVUBR11 Internal Turning Tools Holder S20R SVUBR11 SVUBR 11 Boring Bar CNC Lathe Cutter Machine SVUBR Carbide Inserts VBMT1103 VBMT110304

• S20R-SVUBR11 Information Overview

• Overview

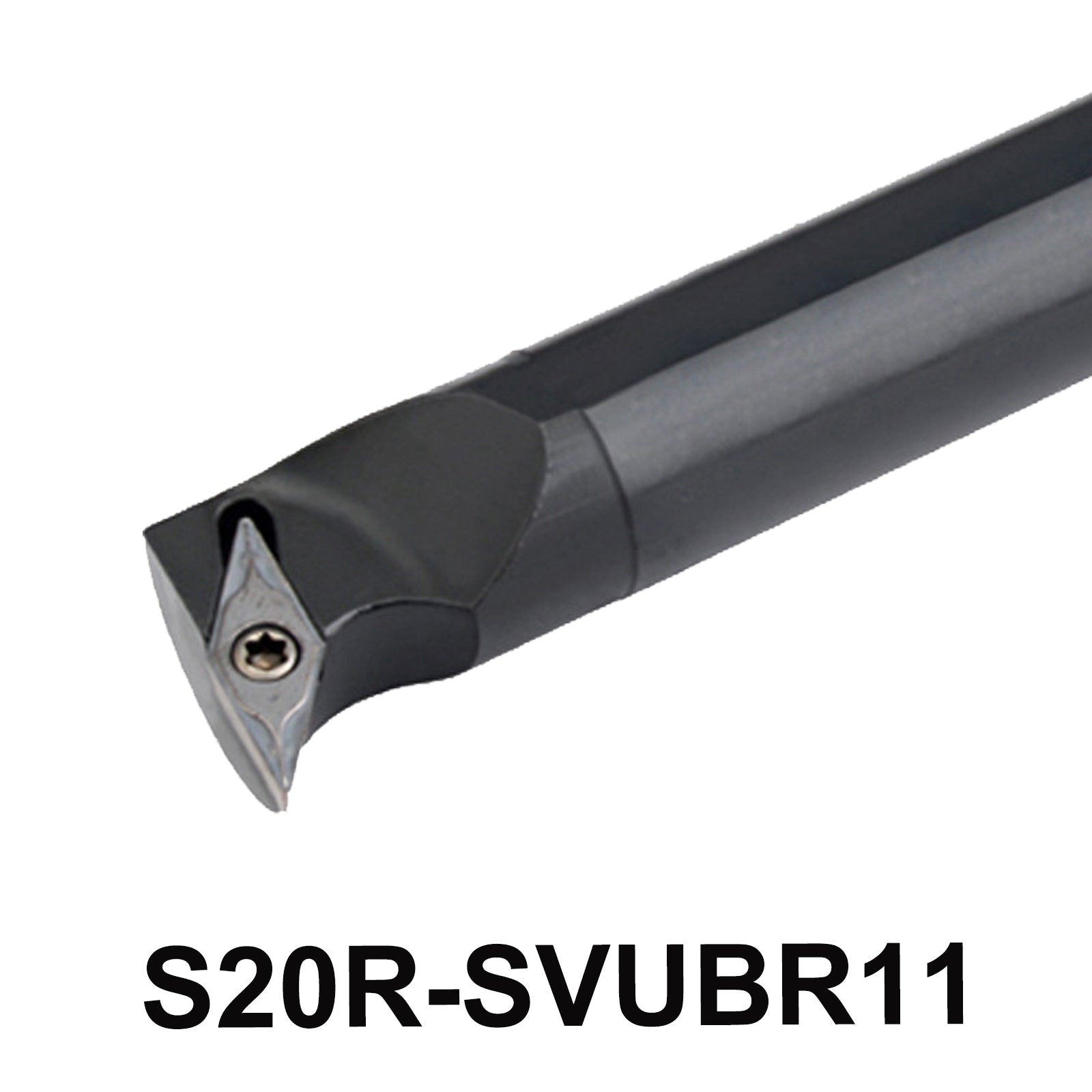

Introducing the S20R-SVUBR11 Mechanical Lathe CNC Internal Boring Bar Tool Holder, a precision-engineered tool designed to enhance the performance and accuracy of your CNC machine tools. Crafted from high-quality alloy steel, this tool holder is built to withstand the rigorous demands of internal turning applications. With a cutting edge angle of 95° and a relief angle of 5°, it ensures smooth and efficient boring operations. The tool holder's S-type (screw-type) design, combined with its robust construction and compatibility with various carbide inserts, makes it an essential addition to any CNC lathe setup.

• Dimensions and Specifications of S20R-SVUBR11 Boring Bar Holder Lathe

• Features and Specifications

  • Model: S20R-SVUBR11
  • Package Includes:S20R-SVUBR11 Tool Holder and compatible Screws, and Wrenches
  • 95° cutting edge angle and 5° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 20mm
  • Total Length: 200mm
  • Cutting Blade Length: 11mm
  • Screw Size: M2.5*7
  • Wrench: T8
  • Compatible Blades: VBMT110302 VBMT110304 VBMT110308 VBMT220 VBMT221 VBMT222

• 5-Point Description

1. 1. Precision Cutting Performance: Features a cutting edge angle of 95° and a relief angle of 5°, designed for optimal internal boring and turning accuracy.
   2. Robust Alloy Steel Construction: Made from high-quality alloy steel, ensuring durability and resistance to wear, even under heavy machining conditions.
   3. Versatile Compatibility: Designed to accommodate a range of carbide inserts, including VBMT110302, VBMT110304, VBMT110308, VBMT220, VBMT221, and VBMT222, enhancing its versatility for various applications.
   4. Ergonomic S-Type Design: The screw-type S design allows for secure and precise tool holding, ensuring stable performance during machining operations.
   5. Optimized Dimensions: With a handle diameter of 20mm, a total length of 180mm, and a cutting blade length of 11mm, this tool holder is engineered for effective and efficient internal boring tasks.
