• S20R-SVUCR11 Information Overview

• Overview

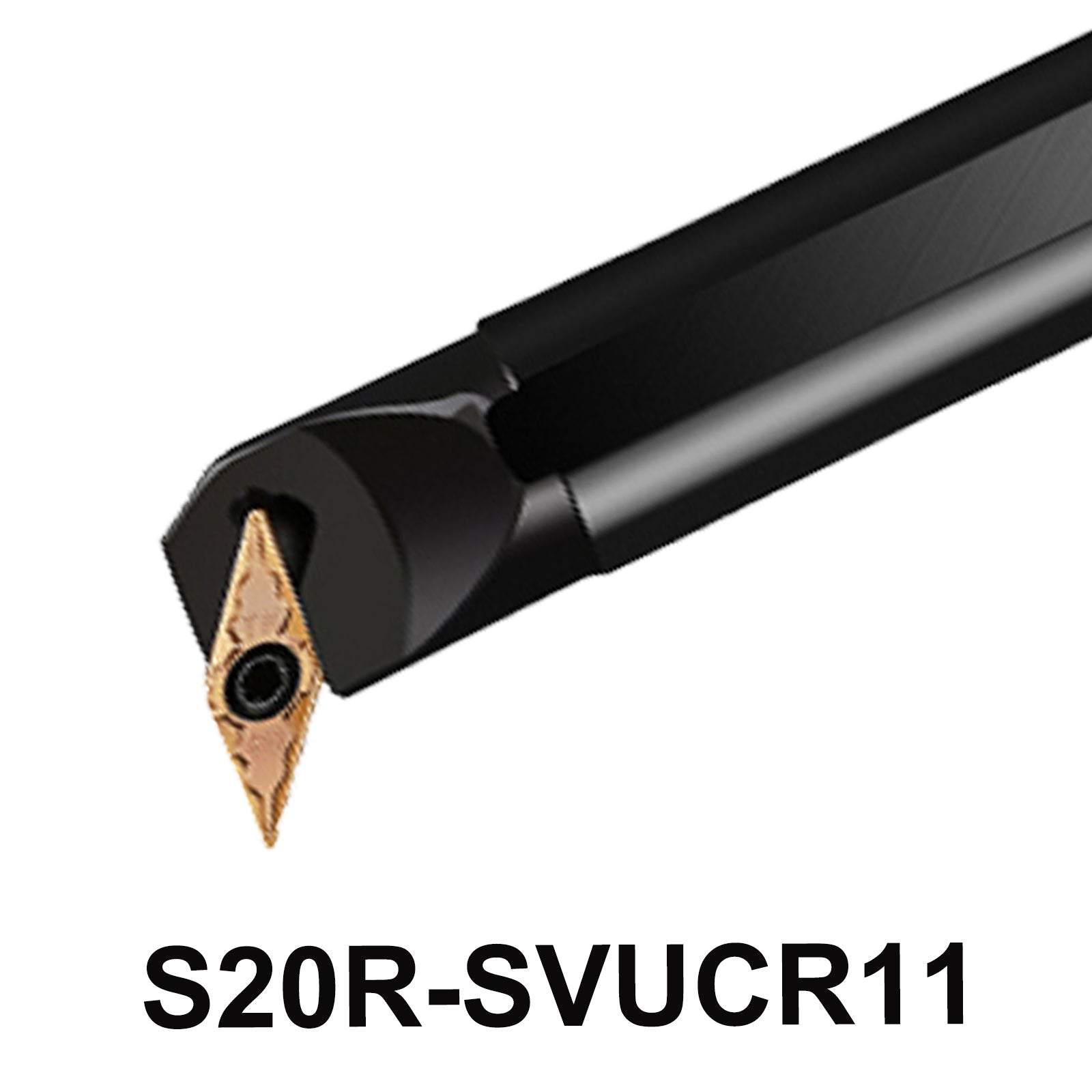

Introducing the S20R-SVUCR11 Internal Turning Tools Holder, engineered for precision and versatility in CNC machining. Crafted from high-quality alloy steel, this tool holder is designed for seamless integration with a range of carbide inserts, ensuring optimal performance and durability.

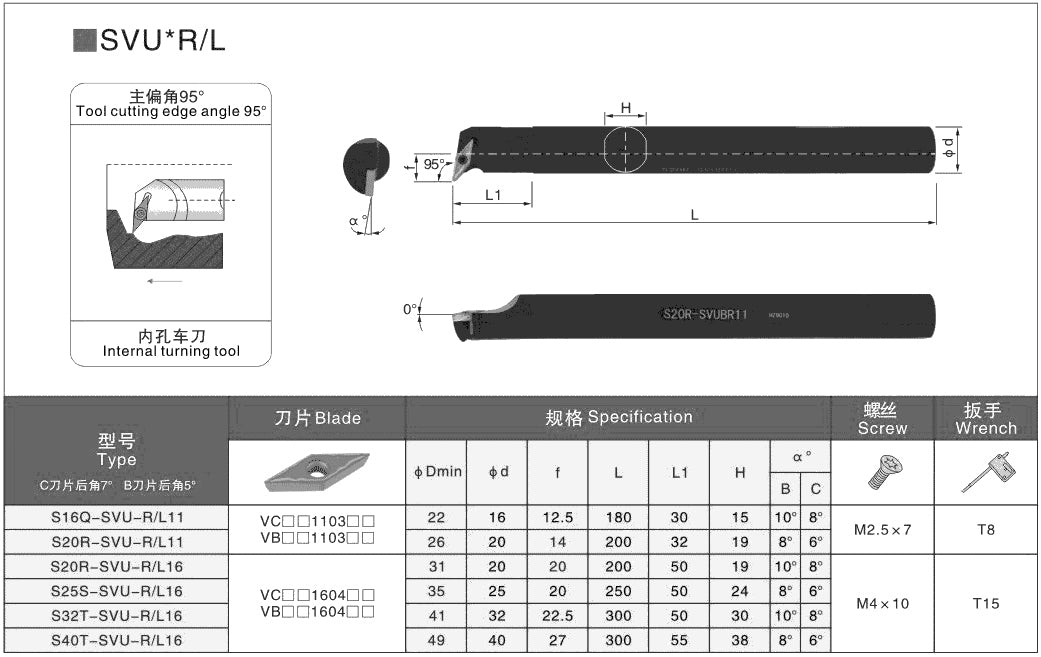

• Dimensions and Specifications of S20R-SVUCR11 Carbide Boring Bars

• Features and Specifications

  • Model: S20R-SVUCR11
  • Package Includes: S20R-SVUCR11 Tool Holder and compatible Screws, and Wrenches
  • 117.5° cutting edge angle and 7° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 20mm
  • Total Length: 200mm
  • Cutting Blade Length: 11mm
  • Screw Size: M2.5*7
  • Wrench: T8
  • Compatible Blades: VCMT110302 VCMT110304 VCMT110308 VCMT220 VCMT221 VCMT222

• 5-Point Description

1. High Precision: With a 7° blade angle, the S20R-SVUCR11 ensures precise cuts and exceptional surface finish.
2. Robust Construction: Made from durable alloy steel, this tool holder withstands the rigors of CNC machining.
3. Versatile Compatibility: Designed to work with a variety of carbide inserts including VCMT110302, VCMT110304, VCMT110308, VCMT220, VCMT221, and VCMT222.
4. Easy Setup: Features an S-type screw mechanism for quick and reliable adjustments, ensuring efficient workflow.
5. Optimal Dimensions: With a 20mm handle diameter and a total length of 200mm, it provides comfortable handling and control.
