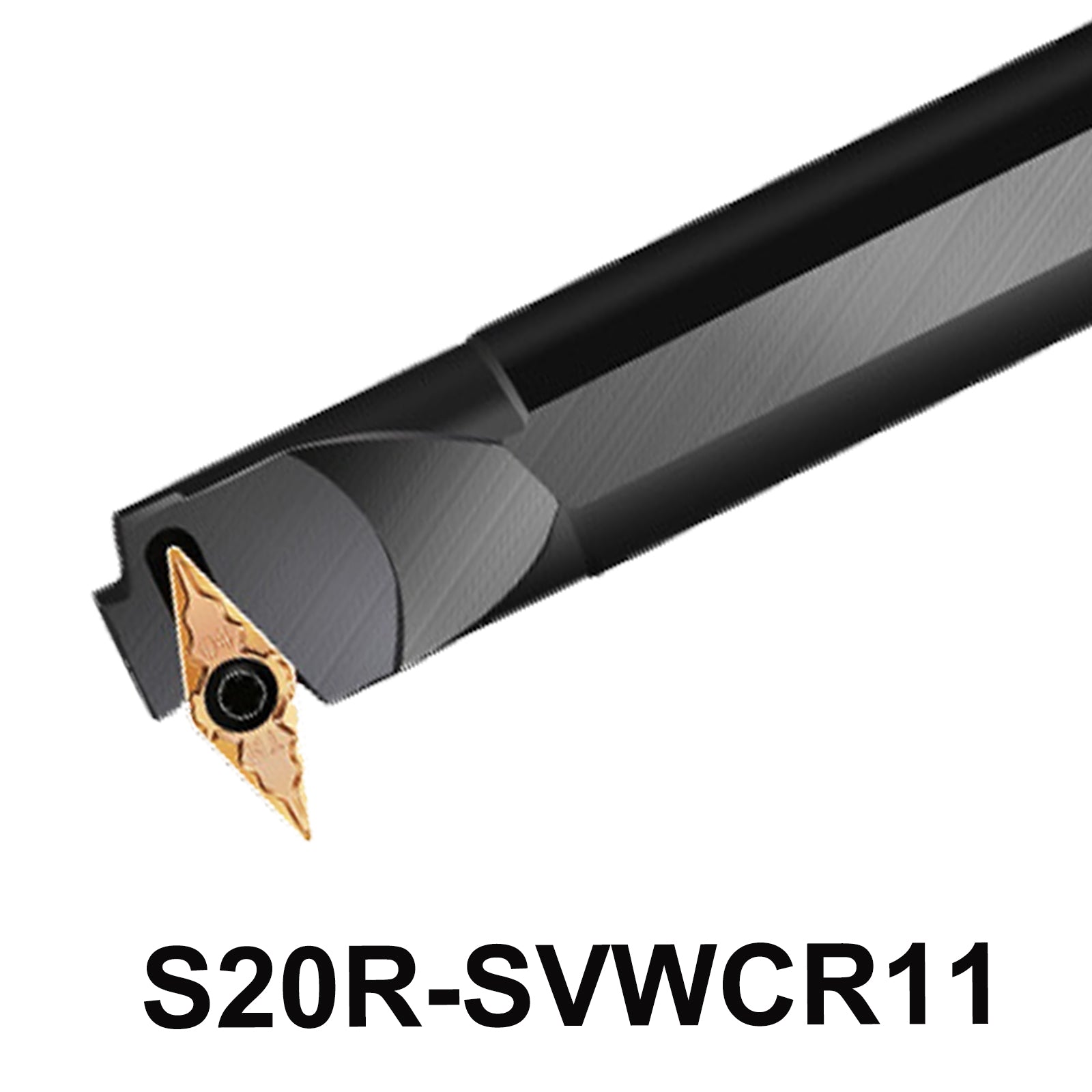

BEYOND S20R-SVWCR11 Internal Turning Tools Holder S20R SVWCR11 SVWCR 11 CNC Boring Tool Holder Carbide Inserts VCMT1103 VCMT110304

• S20R-SVWCR11 Information Overview

• Overview

Introducing the S20R-SVWCR11 CNC Internal Boring Bar Tool Holder, engineered for precision and efficiency in internal turning applications. With a cutting edge angle of 72.5° and a relief angle of 7°, this tool holder ensures superior chip removal and surface finish. Constructed from high-quality alloy steel, it combines durability with optimal performance. Its 20mm handle diameter and 200mm total length offer excellent control and comfort, while the 11mm cutting blade is compatible with a range of VCMT carbide inserts, making it a versatile choice for CNC lathes and machining centers.

• Dimensions and Specifications of S20R-SVWCR11 Carbide Boring Bars

• Features and Specifications

  • Model: S20R-SVWCR11
  • Package Includes: S20R-SVWCR11 Tool Holder and compatible Screws, and Wrenches
  • 72.5° cutting edge angle and 7° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 20mm
  • Total Length: 200mm
  • Cutting Blade Length: 11mm
  • Screw Size: M2.5*7
  • Wrench: T8
  • Compatible Blades: VCMT110302 VCMT110304 VCMT110308 VCMT220 VCMT221 VCMT222

• 5-Point Description

1. Optimized Cutting Geometry: Featuring a 72.5° cutting edge angle and 7° relief angle for efficient chip removal and enhanced tool life.
2. Durable Alloy Steel Build: Crafted from premium alloy steel, ensuring longevity and reliability under demanding machining conditions.
3. Ergonomic Handle Design: The 20mm diameter handle provides a comfortable grip for precise maneuverability during operation.
4. Versatile Compatibility: Designed to work seamlessly with VCMT110302, VCMT110304, VCMT110308, VCMT220, VCMT221, and VCMT222 inserts for varied applications.
5. User-Friendly Setup: Comes with an M2.5*7 screw and T8 wrench for quick adjustments, enhancing your productivity in the workshop.
